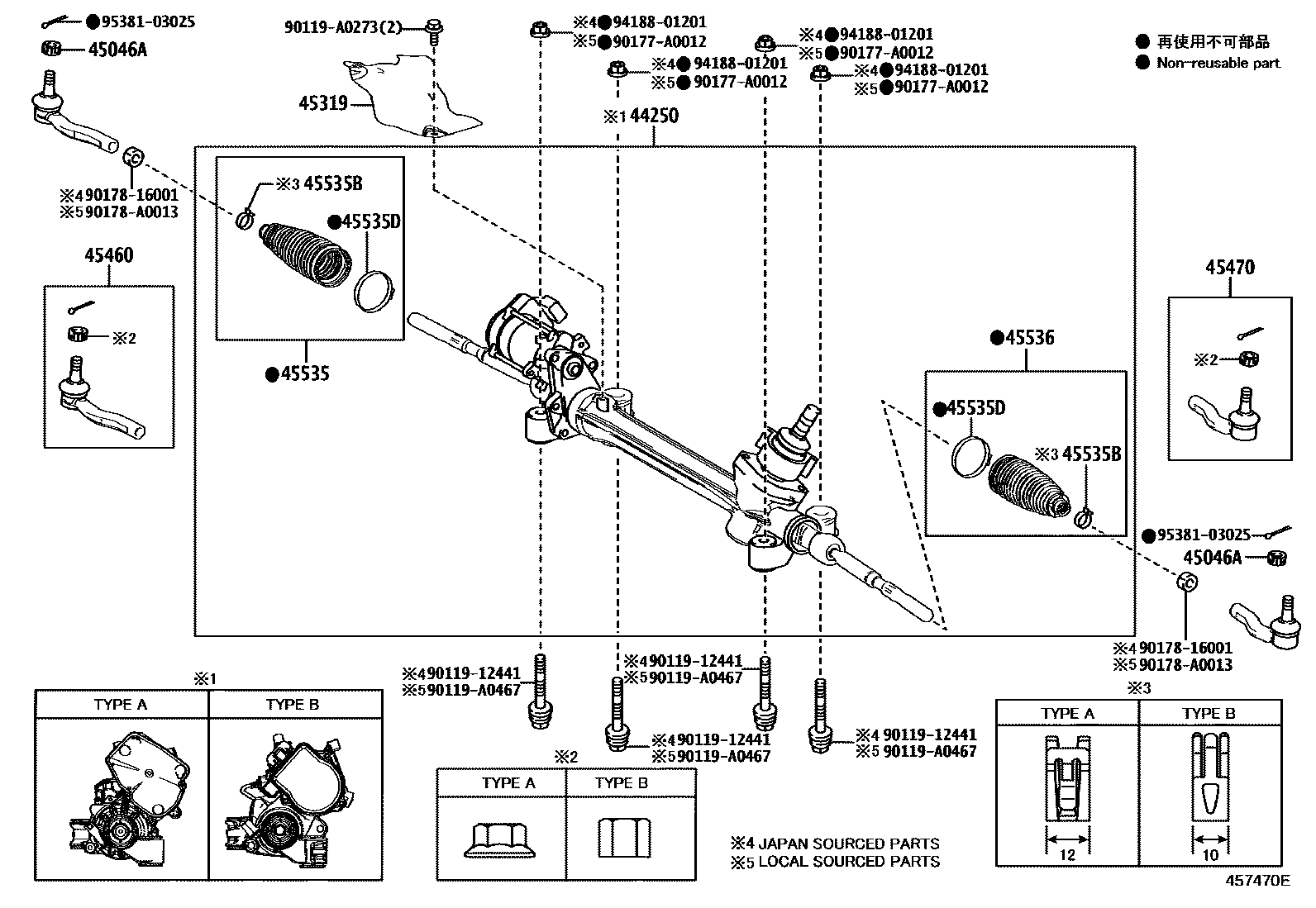

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
TYPE A:REFER ILLUST.
TRD OFFROAD PACKAGE,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main44250-0R012iAXAA5#..M,X;AXAH54,AXAL54; AXAA54..(G,V)..USA; AXAA54..V..CND; AXAA54..V..USA202012-202112
MEXICO SPEC&TIRE & DISC WHEEL-225/60R18,SUMMER TIRE,*ALU(*CR),7.0J; TIRE & DISC WHEEL-225/60R18,ALLSEASON TIRE,*ALU,BLACK; TRD OFFROAD PACKAGE
main44250-0R013iAXAA52..X;AXAA54..M,X;AXAH54,AXAL54;AXAA52..M..USA; AXAA54..(G,V)..USA; AXAA54..V..CND; AXAA54..V..USA202112-202211
TIRE & DISC WHEEL-225/60R18,ALLSEASON TIRE,*ALU,BLACK; TIRE & DISC WHEEL-225/60R18,SUMMER TIRE,*ALU(*CR),7.0J; TRD OFFROAD PACKAGE
TYPE A:REFER ILLUST.
SEAT COVER MATERIAL(SYNTHETIC LEATHER); TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,MICHELIN
MEXICO SPEC&TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,*B/S; SEAT COVER MATERIAL(SYNTHETIC LEATHER); TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,MICHELIN
SEAT COVER MATERIAL(SYNTHETIC LEATHER); TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,*B/S; TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,MICHELIN
main44250-0R140iAXAA52..X;AXAA54..M,X;AXAH54,AXAL54;AXAA52..M..USA; AXAA54..(G,V)..USA; AXAA54..V..CND; AXAA54..V..USA202211
TIRE & DISC WHEEL-225/60R18,ALLSEASON TIRE,MATTE BLACK; TIRE & DISC WHEEL-225/60R18,SUMMER TIRE,*ALU(GRAY),7.0J; TRD OFFROAD PACKAGE
SEAT COVER MATERIAL(SYNTHETIC LEATHER); TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,*B/S; TIRE & DISC WHEEL-235/55R19,ALUMINUM,7.5J,MICHELIN
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-235/55R19 7.5J ALUMI; TIRE & DISC WHEEL-235/55R19 7.5J ALUMI W(LOCK NUT)
45046ANUT, CASTLE(FOR TIE ROD END)
MEXICO SPEC; TRD OFFROAD PACKAGE
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
45470ROD ASSY, TIE, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
45535BOOT, STEERING RACK, NO.1
PNC 44250=TYPE B
45535BCLIP(FOR STEERING RACK BOOT)
PNC 44250=TYPE B
PNC 44250=TYPE A
PNC 44250=TYPE B
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
PNC 45535B=TYPE B
45536BOOT, STEERING RACK, NO.2
PNC 45535B=TYPE A
9011912441
main90119-12441
90119A0273
main90119-A0273
90119A0467
main90119-A0467
90177A0012
main90177-A0012
9017816001
main90178-16001
90178A0013
main90178-A0013
9418801201
main94188-01201
9538103025
main95381-03025
17 parts on this diagram · 1 diagram in section
