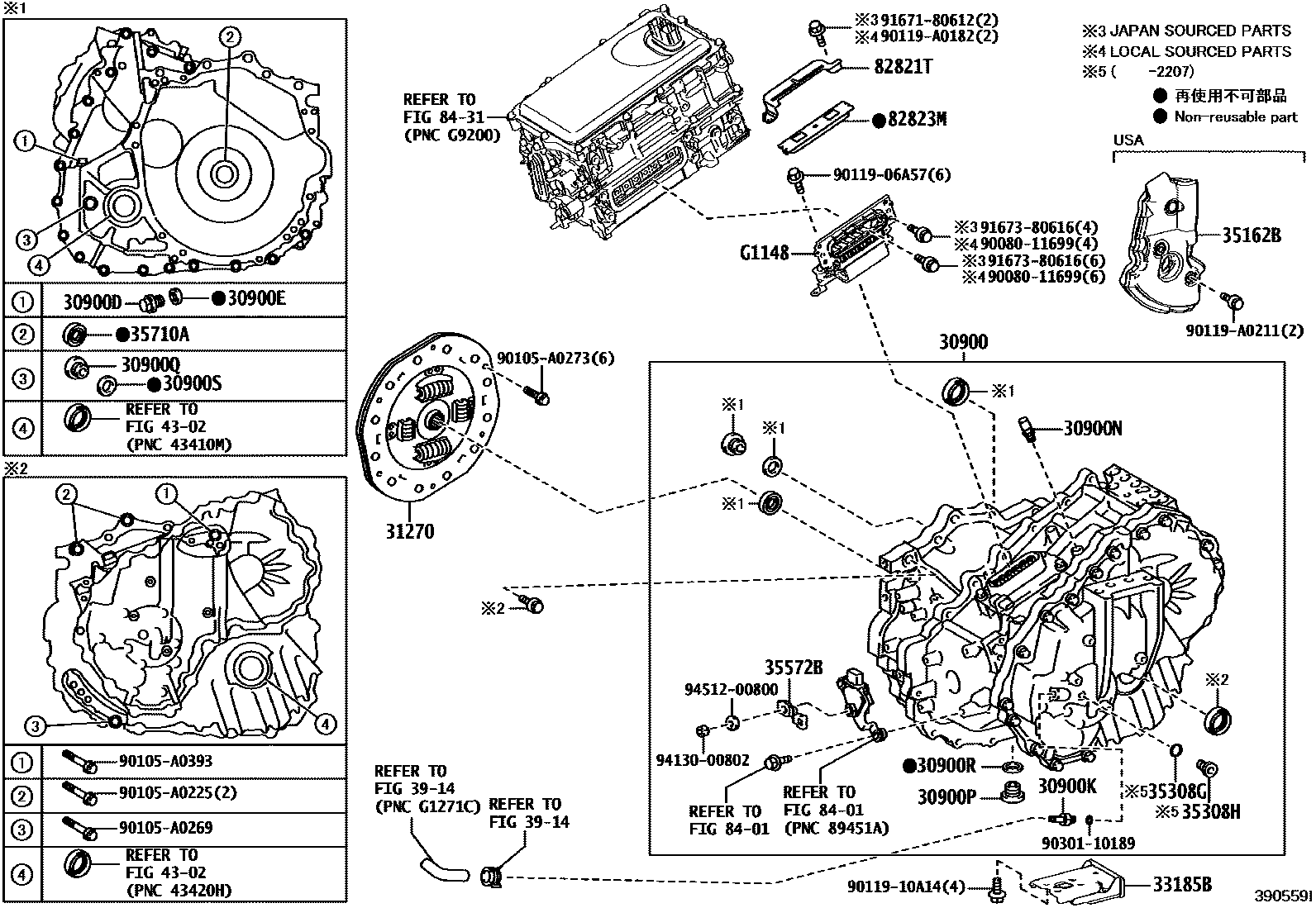

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
33185BBRACKET, TRANSAXLE UNDER STOPPER
35162BPROTECTOR, TRANSAXLE CASE
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572BLEVER, TRANSMISSION, OUTER
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
3914
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8401
8431
G1148CABLE, MOTOR
9008011699
main90080-11699
90105A0225
main90105-A0225
90105A0269
main90105-A0269
90105A0273
main90105-A0273
90105A0393
main90105-A0393
9011906A57
main90119-06A57
9011910A14
main90119-10A14
90119A0182
main90119-A0182
90119A0211
main90119-A0211
9030110189
main90301-10189
9167180612
main91671-80612
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800
37 parts on this diagram · 2 diagrams in section
