TRANSFER ASSEMBLY & GASKET KIT

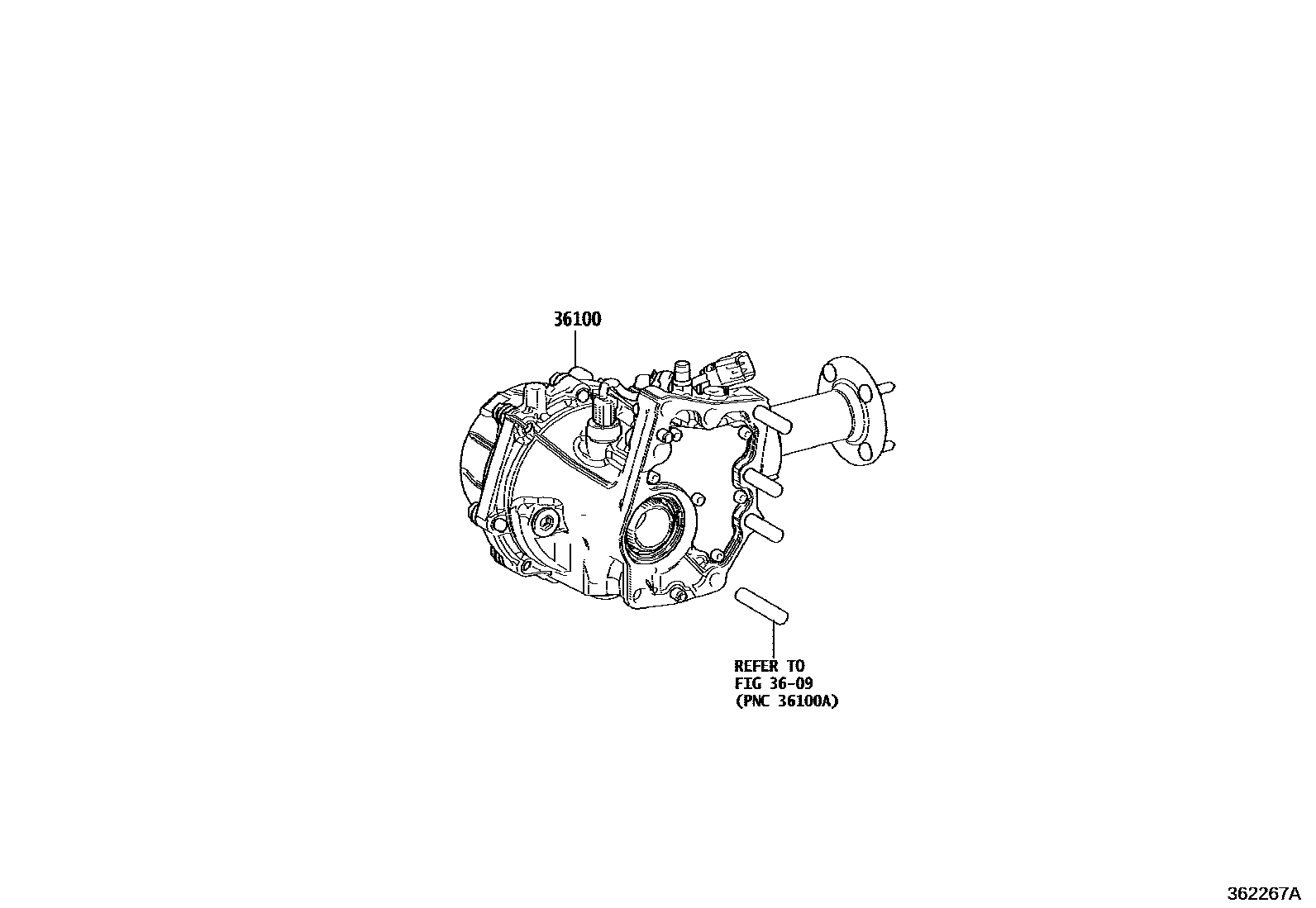

Parts diagram

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36100TRANSFER ASSY

main36100-42160i202009-202211

main36100-42170i201812-201908

main36100-42171i201908-201909

main36100-42172i201909-202009

main36100-42173i202203-202211

2 parts on this diagram · 2 diagrams in section
