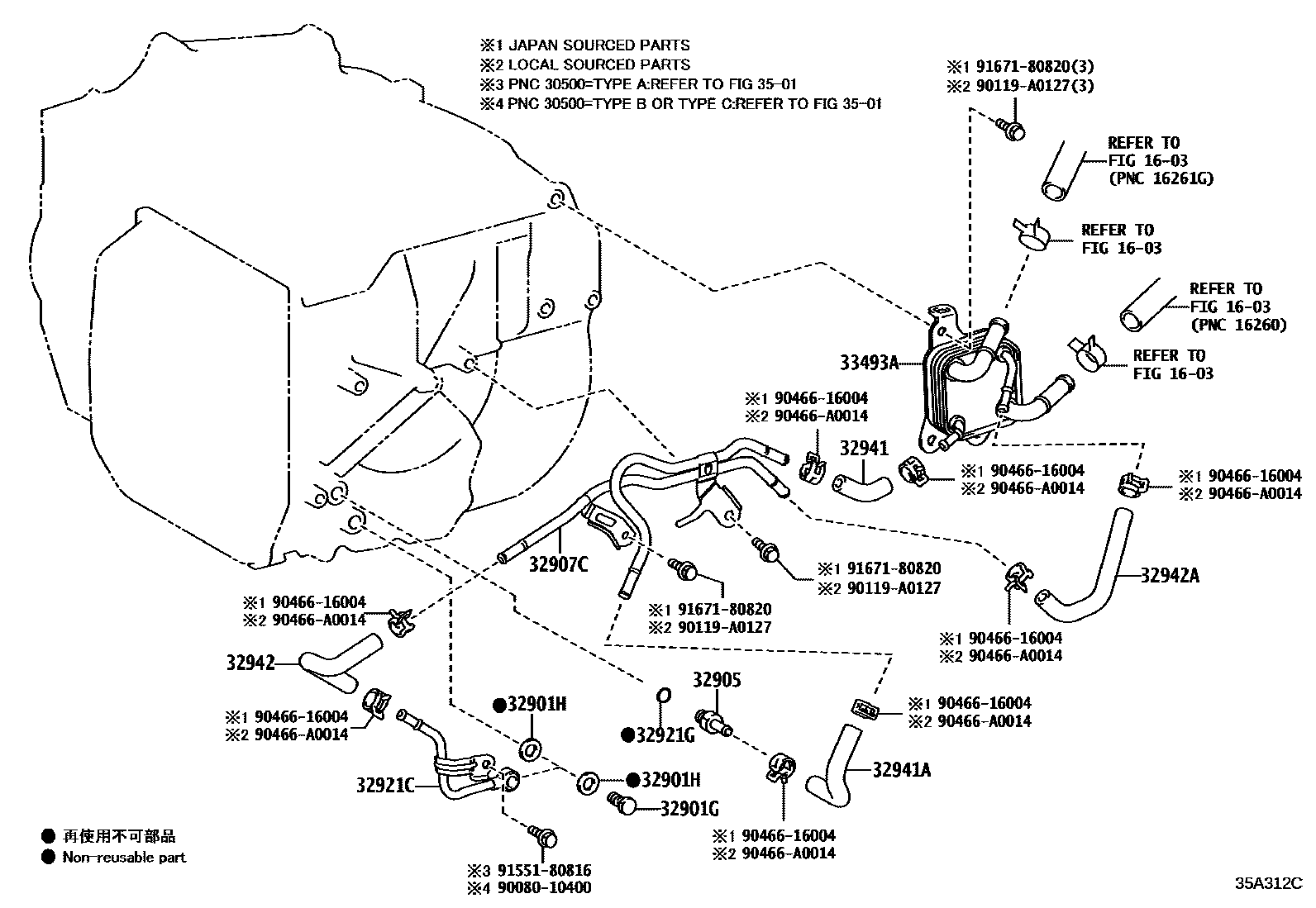

OIL COOLER & TUBE (ATM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-0R030iAXAA5#201812-202009

32921CUNION(FOR OIL COOLER TUBE)

main32901-48020iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

32941HOSE, OIL COOLER INLET, NO.1

main32941-06170iAXAA5#201812-202009

32941AHOSE, OIL COOLER INLET, NO.2

main32941-0R070iAXAA5#201812-202009

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06160iAXAA5#201812-202009

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-06150iAXAA5#201812-202009

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06020iAXAA5#201812-201904

main33493-06021iAXAA5#201905-202009

9008010400

main90080-10400

90119A0127

main90119-A0127

9046616004

main90466-16004

90466A0014

main90466-A0014

9155180816

main91551-80816

9167180820

main91671-80820

18 parts on this diagram · 1 diagram in section
