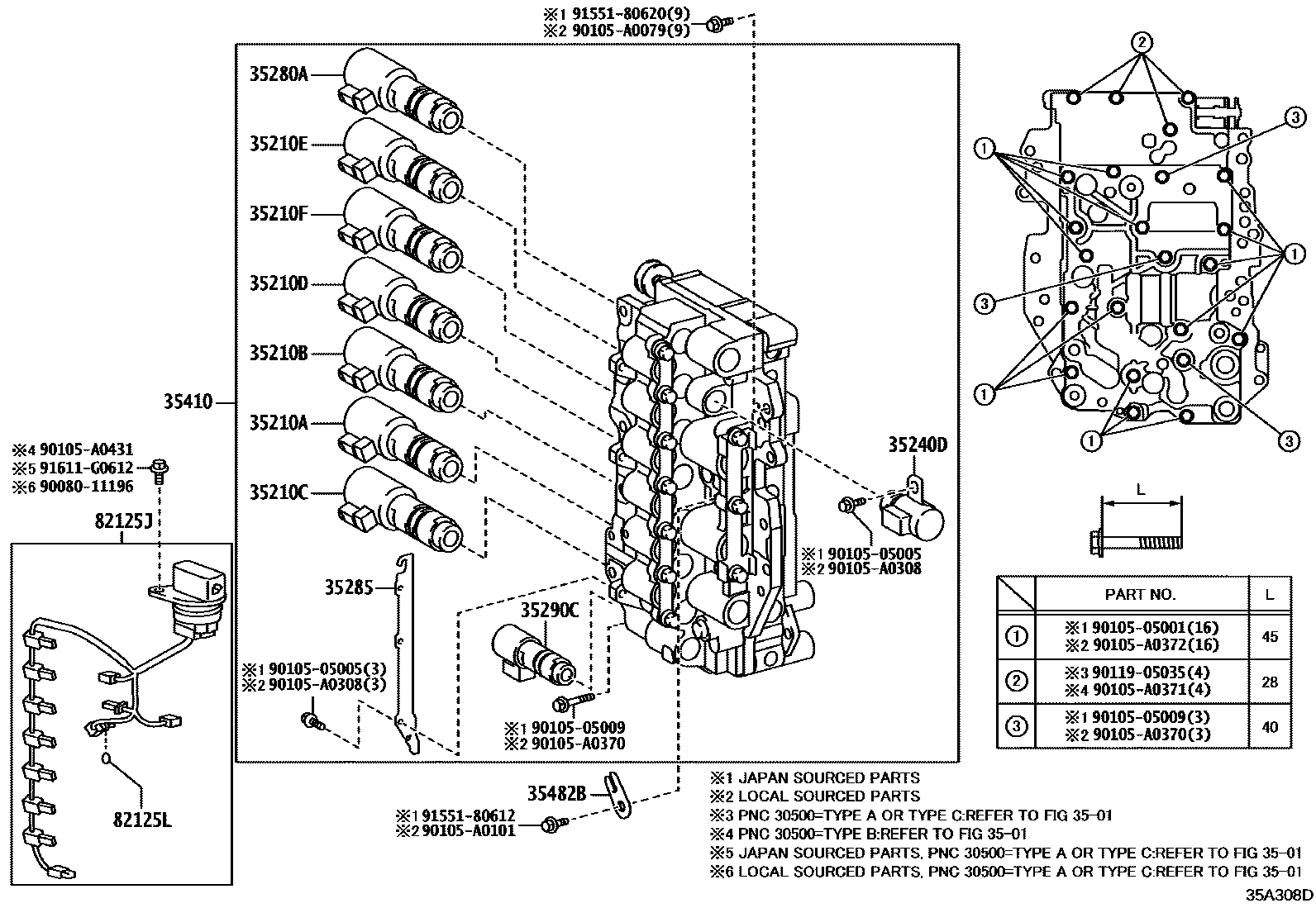

VALVE BODY & OIL STRAINER (ATM)

0001 1UB80E,UB80F W/O(STOP&START SY0002 1UB80F W(STOP&START SYSTEM)

35210AVALVE, SOLENOID(SL1)

main35210-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35210-48020iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35210BVALVE, SOLENOID(SL3)

main35210-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35210-48020iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35210CVALVE, SOLENOID(SL2)

main35210-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35210-48020iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

35210DVALVE, SOLENOID(SL4)

main35210-06020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35210-48020iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35210EVALVE, SOLENOID(SL5)

main35210-06020iAXAA5#201812-202009

TYPE B:REFER 35-01

main35210-48020iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35210FVALVE, SOLENOID(SL6)

main35210-06020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35210-48020iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35240DVALVE, SOLENOID(SL)

main35240-48020iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE A:REFER 35-01; TYPE B:REFER 35-01; TYPE C:REFER 35-01

35280AVALVE, SOLENOID(SLU)

main35280-06020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35280-48030iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35285PLATE, SOLENOID LOCK

main35285-06020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35285-48030iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35290CVALVE, SOLENOID(SLT)

main35290-06010iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

main35290-48030iAXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01

35410BODY ASSY, TRANSMISSION VALVE

main35410-06040iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35410-0R020iAXAA52..M..USA; AXAA54..G,V202211

MEXICO SPEC,TYPE B:REFER 35-01; TYPE B:REFER 35-01

main35410-0R030iAXAA54..M,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01

main35410-48090iAXAA5#..M..USA201812-201910

TYPE A:REFER 35-01

main35410-48100iAXAA54..M,X202009-202211

TYPE A:REFER 35-01

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

82125JWIRE, TRANSMISSION

main82125-06281iAXAA5#..M..USA201812-201910

(L)

main82125-33171iAXAA5#..M..USA201812-201910

(J)

main82125-33211iAXAA54..X..USA201812-202009

82125LRING, O(FOR TRANSMISSION WIRE)

main90301-06025iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

9008011196

main90080-11196

9010505001

main90105-05001

9010505005

main90105-05005

9010505009

main90105-05009

90105A0079

main90105-A0079

90105A0101

main90105-A0101

90105A0308

main90105-A0308

90105A0370

main90105-A0370

90105A0371

main90105-A0371

90105A0372

main90105-A0372

90105A0431

main90105-A0431

9011905035

main90119-05035

9155180612

main91551-80612

9155180620

main91551-80620

91611G0612

main91611-G0612

29 parts on this diagram · 2 diagrams in section
