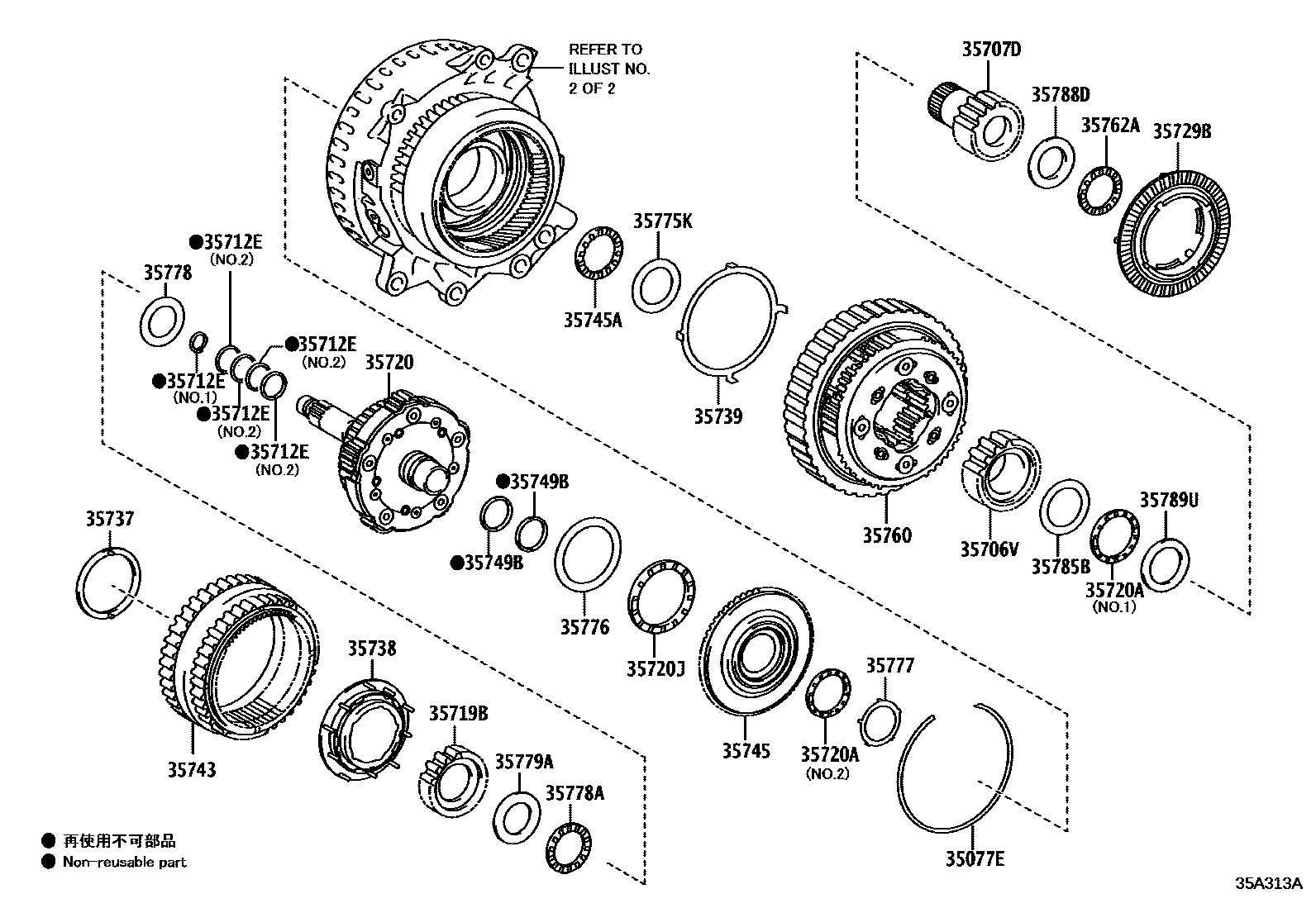

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1UB80E,UB80F(FR & RR PLANETARY0002 1UB80E,UB80F(COUNTER & DRIVEN

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-99190iAXAA52..G,X; AXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01; TYPE C:REFER 35-01

main90521-A0022iAXAA5#201812-202009

TYPE B:REFER 35-01

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-06021iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35706-33040iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

35707DGEAR SUB-ASSY, REAR PLANETARY SUN

main35707-06010iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main35707-33020iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35712ERING, INPUT SHAFT OIL SEAL

main35617-60030iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

T/P A:SEE 35-01,NO.1; T/P B:SEE 35-01,NO.1

main35712-33030×4iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P A:SEE 35-01,NO.2; T/P B:SEE 35-01,NO.2; T/P C:SEE 35-01,NO.2

main35712-48020iAXAA52..G,X;AXAA52..M..CND202004-202009

T/P C:SEE 35-01,NO.1

35719BGEAR, PLANETARY SUN

main35719-06010iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

main35719-33020iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35720GEAR ASSY, FRONT PLANETARY

main35720-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35720-0R020iAXAA54;AXAA52..G,X;AXAA52..M..USA202110-202211

TYPE B:REFER 35-01

main35720-33090iAXAA5#202009-202109

TYPE B:REFER 35-01

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-29010iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,T/P A:SEE 35-01,NO.1; T/P A:SEE 35-01,NO.1

main90374-35009iAXAA52..M..USA201812-201910

T/P A:SEE 35-01,NO.2

main90374-A0051iAXAA52..M..CND202009

T/P B:SEE 35-01,NO.2

main90374-A0053iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P B:SEE 35-01,NO.1; T/P C:SEE 35-01,NO.1

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-57007iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main90374-A0050iAXAA52..M..CND202009

TYPE B:REFER 35-01

35729BWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-33010iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35737WASHER, PLANETARY CARRIER THRUST

main35737-48050iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main35737-48080iAXAA52..M..USA; AXAA54; AXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-33040iAXAA52..G,X; AXAA54;AXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE A:REFER 35-01; TYPE B:REFER 35-01; TYPE C:REFER 35-01

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-33020iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

35743GEAR, FRONT PLANETARY RING

main35743-33060iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35745FLANGE, FRONT PLANETARY RING GEAR

main35745-33030iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

main35745-33040iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-201912

TYPE A:REFER 35-01; TYPE B:REFER 35-01

main35745-33041iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

35745ABRG, THRUST NEEDLE ROLLER(FOR FRONT PLNT RING GEAR FLANGE)

main90374-29009iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

main90374-A0052iAXAA52..M..CND202009

TYPE B:REFER 35-01

35749BRING, INPUT SHAFT OIL SEAL, REAR

main35749-33010×2iAXAA5#; AXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01; TYPE B:REFER 35-01

35760GEAR ASSY, REAR PLANETARY

main35760-06010iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main35760-0R010iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE B:REFER 35-01

main35760-33080iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-21011iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

main90374-A0054iAXAA5#201812-202009

TYPE B:REFER 35-01

35775KRACE, THRUST BEARING, NO.5

main35775-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35775-33030iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35776GEAR, PRIMARY REDUCTION DRIVEN

main35776-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35776-33010iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35777RACE, THRUST BEARING, NO.7

main35777-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35777-33010iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35778RACE, THRUST BEARING, NO.8

main35778-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE B:REFER 35-01

main35778-33010iAXAA52..M..USA; AXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01; TYPE A:REFER 35-01

35778ABEARING, THRUST NEEDLE ROLLER

main90374-28019iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

main90374-A0049iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE B:REFER 35-01

35779ARACE, THRUST BEARING, NO.9

main35779-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35779-33010iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35785BRACE, THRUST BEARING, NO.4

main35785-06020iAXAA52..G,X; AXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE B:REFER 35-01; TYPE C:REFER 35-01

main35785-33030iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35788DRACE, THRUST BEARING, NO.3

main35788-06020iAXAA5#201812-202009

TYPE B:REFER 35-01

main35788-33030iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35789URACE, THRUST BEARING

main35789-06020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35789-33040iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

27 parts on this diagram · 2 diagrams in section
