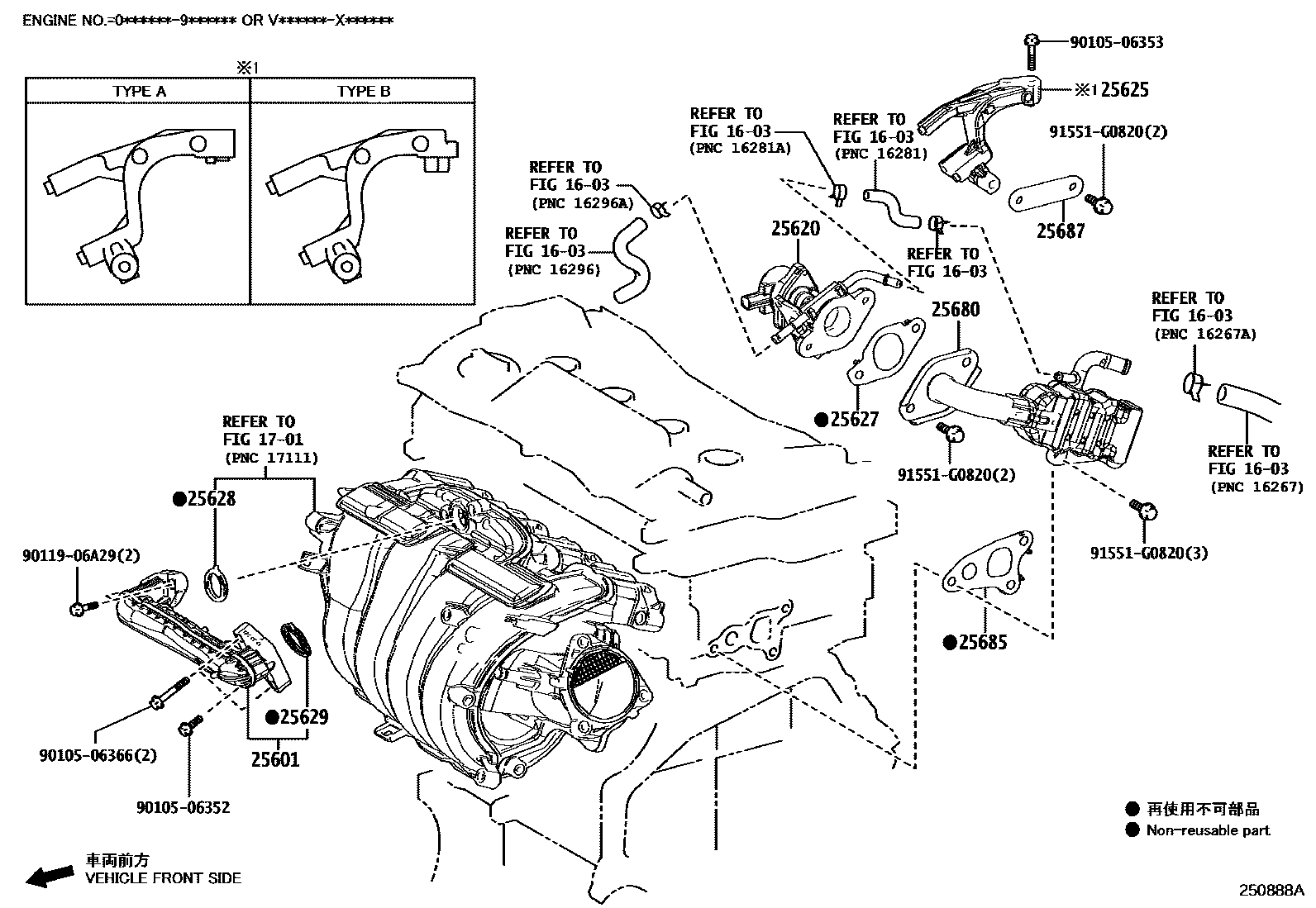

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011iA25AFKS..AXAA5#202009-202111

*584

main25601-25030iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202111-202211

*584

main25601-F0010iA25#..AXAA5#,AXAH54,AXAL54202009-202112

*628

main25601-F0020iA25AFKS..AXAA52..M..CND202112

*628

25620VALVE ASSY, EGR

main25620-24050iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202111-202211

*584

main25620-25040iA25#..AXAA5#,AXAH54,AXAL54201812-202009

*584

main25620-F0020iA25#..AXAA5#,AXAH54,AXAL54202009-202112

*628

main25620-F2010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202112-202211

*628

25625BRACKET, EGR VALVE

main25625-25010iA25#..AXAA5#,AXAH54201812-202007

*584T/P A:REF.ILLUST

main25625-25030iA25AFKS..AXAA5#202009-202111

*584

main25625-F0010iA25#..AXAA5#,AXAH54201812-202004

*628T/P A:REF.ILLUST

main25625-F0020iA25AFKS..AXAA5#; A25AFXS..AXAH54,AXAL54202009-202112

(L),*628; *628

25627GASKET, EGR VALVE

main25627-24010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

*584

main25627-25010iA25#..AXAA5#,AXAH54,AXAL54201812-202009

*584

main25627-F0010iA25#..AXAA5#,AXAH54,AXAL54202009-202112

*628

main25627-F2010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

*628

25628GASKET, EGR INLET

main25628-25010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54; A25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202009-202211

*584; *628

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54; A25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202009-202211

*584; *628

25680COOLER ASSY, EGR

main25680-25010iA25AFKS..AXAA5#201812-202009

*584

main25680-25060iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

*584

main25680-F0010iA25AFKS..AXAA5#201812-202009

*628

main25680-F0020iA25AFXS..AXAH54,AXAL54202009-202112

*628

main25680-F0030iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

*628

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25#..AXAA5#,AXAH54,AXAL54; A25AFKS..AXAA5#201812-202009

*584; *628

25687BRACKET, EGR COOLER, NO.1

main25687-25010iA25AFKS..AXAA5#201812-202009

*628,*584

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

16 parts on this diagram · 6 diagrams in section
