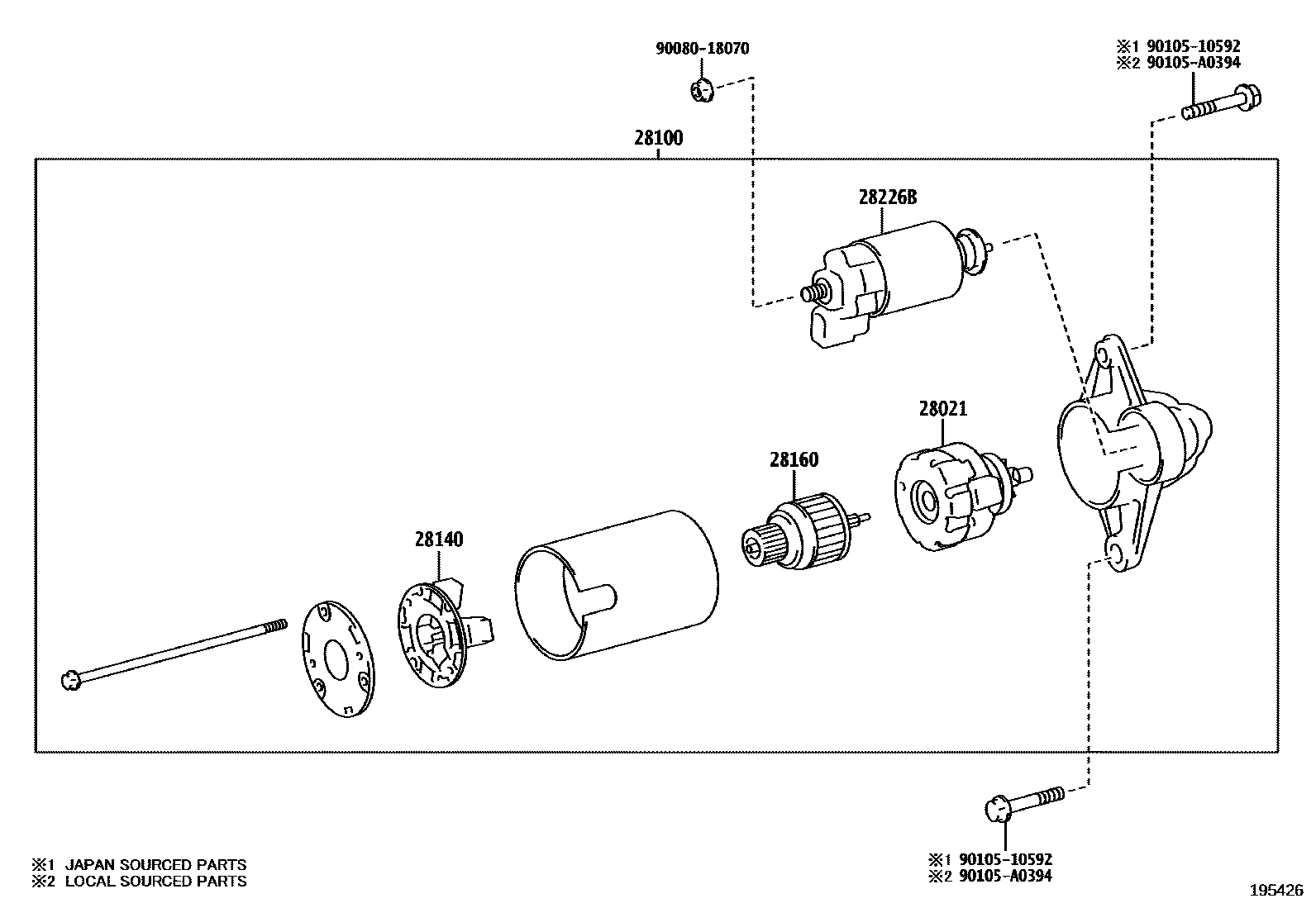

STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
main28021-25050iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V;A25AFKS..AXAA52..M..CND;A25AFKS..AXAA54..(M,X)..CND201812-201912
TOYOTA STOP & START SYSTEM-WITHOUT
28100STARTER ASSY
12V 1.3KW
12V 1.2KW; 12V 1.2KW,TOYOTA STOP & START SYSTEM-WITHOUT
12V 1.7KW
12V 1.7KW
12V 1.7KW
12V 1.7KW
28140HOLDER ASSY, STARTER BRUSH
TOYOTA STOP & START SYSTEM-WITHOUT
28160ARMATURE ASSY, STARTER
28226BSTARTER KIT, REPAIR SERVICE
main28226-25050iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V;A25AFKS..AXAA52..M..CND;A25AFKS..AXAA54..(M,X)..CND201812-201912
main28226-K0040iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V;A25AFKS..AXAA52..M..CND;A25AFKS..AXAA54..(M,X)..CND201912-202009
9008018070
main90080-18070
9010510592
main90105-10592
90105A0394
main90105-A0394
8 parts on this diagram · 2 diagrams in section
