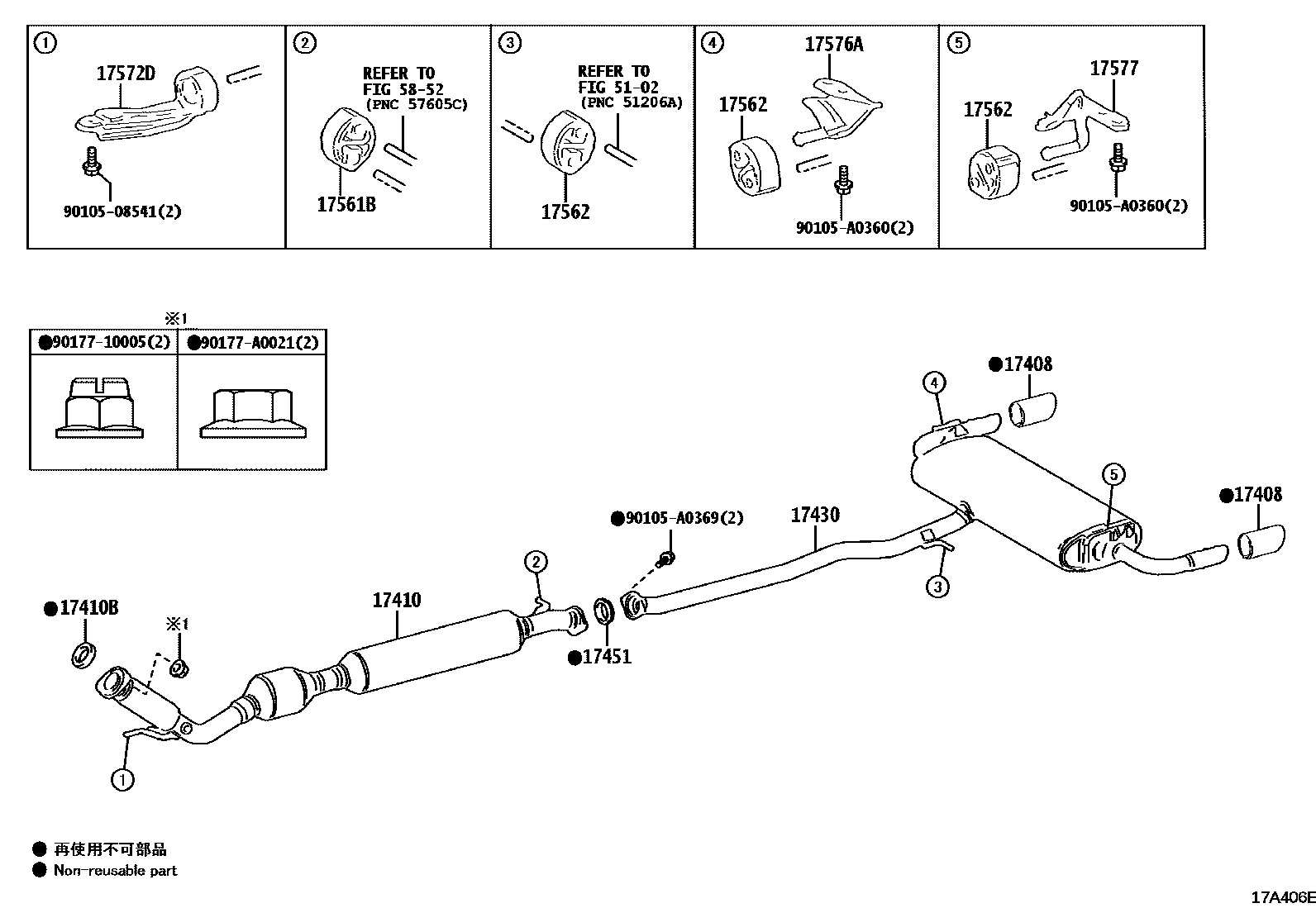

EXHAUST PIPE

0001 1 0002 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-25030×2iA25#..AXAA5#,AXAH54..X201812-201911

(J)

main17408-25040×2iA25#..AXAA5#,AXAH54..G,M,V201812-201911

(J)

main17408-F0030×2iA25AFKS..AXAA52..M..CND202009

main17408-F0040×2iA25#..AXAA5#,AXAH54,AXAL54..X202009-202211

main17408-YY040×2supersedes 17408-F0030iA25AFKS..AXAA52..(G,M)..USA;A25#..AXAA54,AXAH54,AXAL54..G,M,P,S,V202211

EXHAUST TAIL PIPE BAFFLE-WITHOUT(BAFFLE)

17410PIPE ASSY, EXHAUST, FRONT

main17410-F0150iA25AFKS..AXAA5#201812-202009

main17410-F0151iA25AFKS..AXAA52..(M,X)..USA; A25AFKS..AXAA54202112-202211

MEXICO SPEC

main17410-F0170iA25AFXS..AXAH54,AXAL54202009-202211

main17410-F0530iA25AFKS..AXAA52..M..CND202112

main17410-F0660iA25AFXS..AXAH54,AXAL54202211-202411

main17410-F0880iA25AFKS..AXAA52..(M,X)..USA; A25AFKS..AXAA54202411

MEXICO SPEC

main17410-F0A50iA25AFXS..AXAH54,AXAL54202411

17410BGASKET, EXHAUST PIPE

main90917-A6002iA25#..AXAA5#,AXAH54,AXAL54201812-202009

17430PIPE ASSY, EXHAUST, TAIL

main17430-F0150iA25AFKS..AXAA5#201812-202009

main17430-F0151iA25AFKS..AXAA52202111-202112

main17430-F0170iA25AFXS..AXAH54,AXAL54202211

main17430-F0490iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202112-202211

17451GASKET, EXHAUST PIPE

main17451-25040iA25AFKS..AXAA52..M..CND202009

(J)

main17451-F0100iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

(L)

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0P041iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-0S011×3iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202009-202211

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17572-F0040iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-25020iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-25010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202009-202211

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9010508541

main90105-08541

90105A0360

main90105-A0360

90105A0369

main90105-A0369

9017710005

main90177-10005

90177A0021

main90177-A0021

17 parts on this diagram · 2 diagrams in section
