11711BEARING, CRANKSHAFT

main11701-25010-01×5i202111-202211

MARK 1,*584,NO.1&2,REF. R/M

main11701-25010-02×3i201906-202009

MARK 2,*584,NO.1,REFER R/M

main11701-25010-03×3i202009-202111

MARK 3,*584,NO.1,REFER R/M

main11701-25010-04×3i201906-202009

MARK 4,*584,NO.1,REFER R/M

main11701-25010-05×5i202211

MARK 5,*584,NO.1&2,REF. R/M

main11701-25020-01×2i202009-202111

MARK 1,*584,NO.2,REFER R/M

main11701-25020-02×2i202009-202111

MARK 2,*584,NO.2,REFER R/M

main11701-25020-03×2i201906-202009

MARK 3,*584,NO.2,REFER R/M

main11701-25020-04×2i201906-202009

MARK 4,*584,NO.2,REFER R/M

main11701-25020-05×2i201906-202009

MARK 5,*584,NO.2,REFER R/M

main11701-F0010-01×5i202204-202211

MARK 1,*628,NO.1&2,REF. R/M

main11701-F0010-02×3i202001-202009

MARK 2,*628,NO.1,REFER R/M

main11701-F0010-03×3i202009-202204

MARK 3,*628,NO.1,REFER R/M

main11701-F0010-04×5i202204-202211

MARK 4,*628,NO.1&2,REF. R/M

main11701-F0010-05×5i201812-202001

MARK 5,*628,NO.1 OR 2,*RRM

main11701-F0020-01×2i202001-202009

MARK 1,*628,NO.2,REFER R/M

main11701-F0020-02×2i202009-202204

MARK 2,*628,NO.2,REFER R/M

main11701-F0020-03×2i202009-202204

MARK 3,*628,NO.2,REFER R/M

main11701-F0020-04×2i202009-202204

MARK 4,*628,NO.2,REFER R/M

main11701-F0020-05×2i202001-202009

MARK 5,*628,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25030×2i202009-202102

STD,*584

main11791-25040×2i202103-202211

STD,*584

main11791-F0010×2i202009-202112

STD,*628

main11791-F0040×2i202201-202211

STD,*628

13011RING SET, PISTON

main13011-25080i202009-202211

STD,*584

main13011-F0040i202211

STD,*628

13041BEARING, CONNECTING ROD

main13041-25020-01×4i202009-202211

MARK 1,*584:REFER R/M

main13041-25020-02×4i202009

MARK 2,*584:REFER R/M

main13041-25020-03×4i202009-202211

MARK 3,*584:REFER R/M

main13041-F0010-01×4i201812-202009

MARK 1,*628:REFER R/M

main13041-F0010-02×4i202009

MARK 2,*628:REFER R/M

main13041-F0010-03×4i201812-202009

MARK 3,*628:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-25030×4i202009-202211

STD,*628,*584

main13101-25040×4i202211

STD,*584,(J),*628

main13101-F0020×4i202009-202211

STD,*628

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8i202009-202211

*584; *628

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4i202009-202211

MARK A,*584:REFER R/M; MARK A,*628,(J):REFER R/M

main13201-29815-B0×4i202009-202211

MARK B,*584:REFER R/M; MARK B,*628,(J):REFER R/M

main13201-29815-C0×4i201812-202009

MARK C,*584:REFER R/M,*628,(J):REFER R/M

main13201-F9000-A0×4i201812-202009

MARK A,*628,(L):REFER R/M

main13201-F9000-B0×4i202009-202211

MARK B,*628,(L):REFER R/M

main13201-F9000-C0×4i202211

MARK C,*628:REFER R/M

13265BOLT, CONNECTING ROD

main13265-25020×8i202009-202211

(J),*628; *584

main13265-F0010×8i202009

(L),*628

13411CRANKSHAFT

main13401-25010i202211

*584

main13401-F0010i201812-202009

(L),*628

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202009-202211

*584; *628

13470PULLEY ASSY, CRANKSHAFT

main13470-25010i202211

*628,*584

main13470-25020i202009-202211

*628

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202009-202211

*584; *628

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201812-202009

*584

main90119-A0265i201903-202009

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010i202009-202211

*584

main13519-F0010i202009

*628

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010i201812-202009

*584

main13521-F0010i202009

*628

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25010i201812-201911

*584

main19315-25011i201912-202009

*584

main19315-F0010i201812-201911

*628

main19315-F0011i202009-202211

*628

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

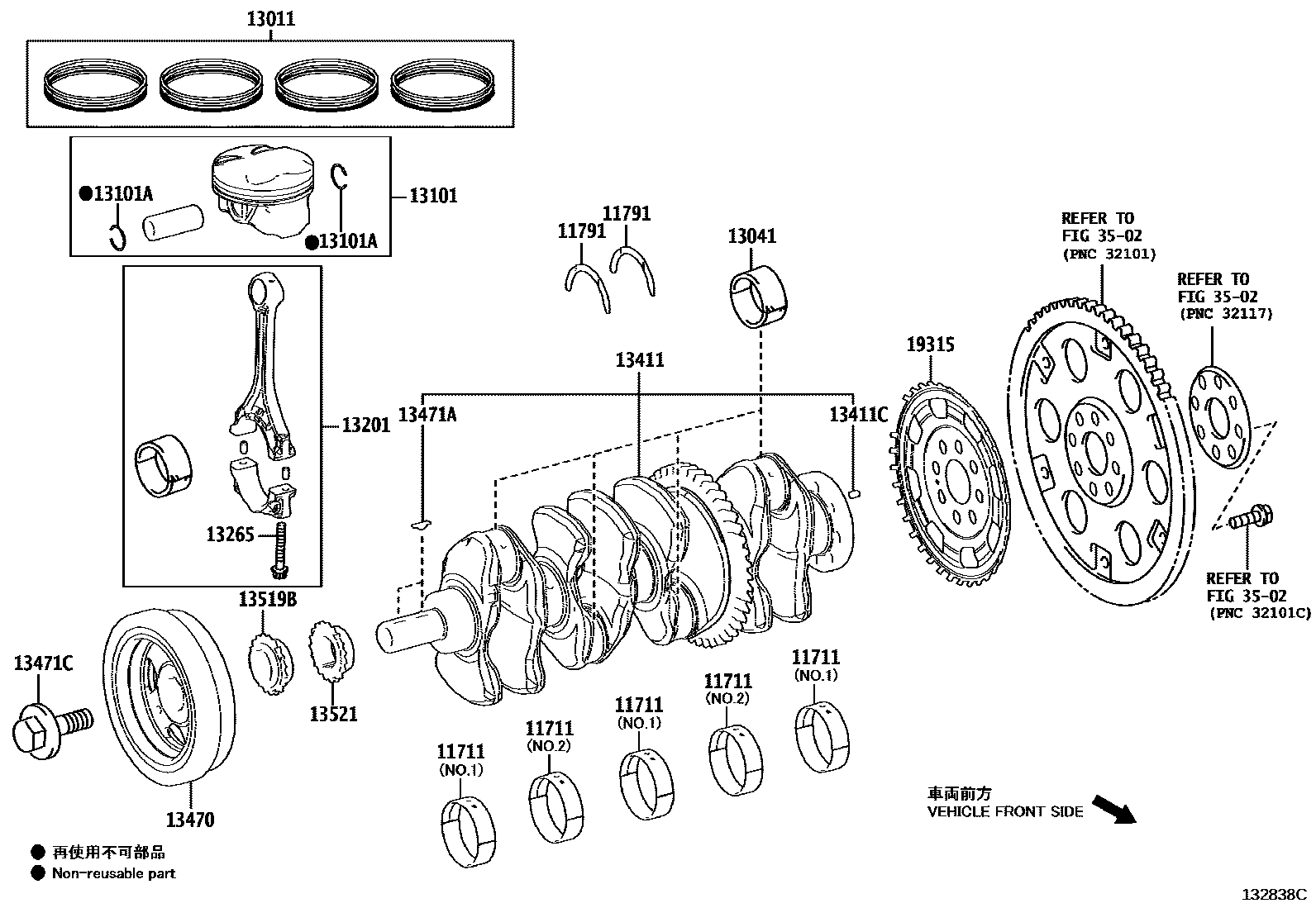

CRANKSHAFT & PISTON
