CYLINDER BLOCK

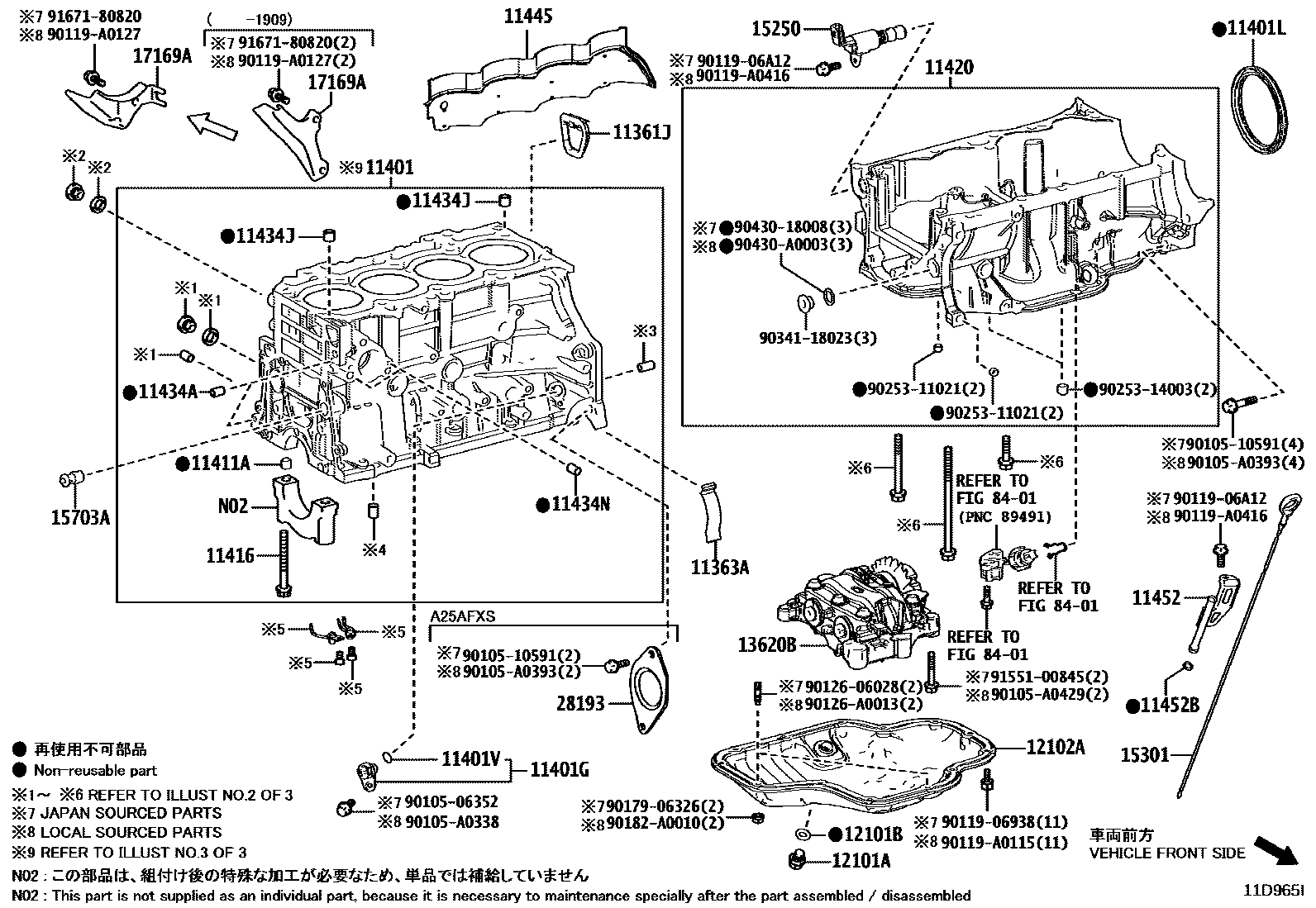

Parts diagram

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-25010i201812-202009

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010i202211

11401BLOCK SUB-ASSY, CYLINDER

main11410-29505i202009-202208

*628,(J),T/P A REF.

main11410-29515supersedes 11410-F9060i201903-202009

*584,(J),*628

main11410-29685i202211

*584

main11410-29695i202211-202310

*584

main11410-F9010i201812-202009

(L),*628

main11410-F9060i201903-202009

(L),*628

main11410-F9320i202208

*628T/P B:REF.ILLUST

main11410-F9340i202208-202211

*628T/P B:REF.ILLUST; MEXICO SPEC,*628T/P B:REF.ILLUST

11401GSENSOR, CRANK POSITION

main90919-05094i202211

*584

main90919-05095i202211

*584; MEXICO SPEC,*584

main90919-A5005i202310

*628

main90919-A5006i201812-201910

*628

11401LSEAL, ENGINE REAR OIL

main90311-90010i202009

*584

main90311-A0035i201812-202009

*628

11401VO-RING, CRANK POSITION SENSOR

main90301-11039i202009-202211

*584; *628

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90253-14003×10i202009-202211

*584; *628

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02197×10i202009

*584,(J),*628

main90910-A2015×10i201812-202009

(L),*628

11420CRANKCASE ASSY, STIFFENING

main11420-25010i201812-202009

*584

main11420-F0010i202211

*628

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003×2i202009

L=14,OD=6,*584,(J),*628

main90250-A0028×2i201812-202009

L=14,OD=6,(L),*628

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-14003×2i202009-202211

*584; *628

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003×2i202009-202211

(J),*628; *584

main90250-A0028×2i201812-202009

(L),*628

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-25010i202009-202211

*584

main11445-F0010i202009

*628

11452GUIDE, OIL LEVEL GAGE

main11452-25010i201812-202009

*584

main11452-F0010i202009

*628

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96741-19010i201812-202009

*628,*584

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i202211

*584

main90341-A0007i202009

*628

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i202009-202211

*584

main90430-A0006i202211

*628

12102APAN SUB-ASSY, OIL, NO.2

main12102-25010i201812-202009

*584

main12102-F0010i202009

*628

13620BBALANCER ASSY, ENGINE

main13620-25010i201812-202009

*584

main13620-F0010i202009-202211

*628

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010i202301

(J),*628

main15250-F0020i202301

(L),*628

15301GAGE SUB-ASSY, OIL LEVEL

main15301-25030i202009

*584

main15301-F0010i201812-202009

*628

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011i202009

*628,*584

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-25021i201812-201909

*584; *628

main17169-25030i201909-202009

*584; *628

main17169-F0050i202406

(L),*628

28193INSULATOR, STARTER HOLE

main28193-25010i201903-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506352

main90105-06352

9010510591

main90105-10591

90105A0338

main90105-A0338

90105A0393

main90105-A0393

90105A0429

main90105-A0429

9011906938

main90119-06938

9011906A12

main90119-06A12

90119A0115

main90119-A0115

90119A0127

main90119-A0127

90119A0416

main90119-A0416

9012606028

main90126-06028

90126A0013

main90126-A0013

9017906326

main90179-06326

90182A0010

main90182-A0010

9025311021

main90253-11021

9025314003

main90253-14003

9034118023

main90341-18023

9043018008

main90430-18008

90430A0003

main90430-A0003

9155100845

main91551-00845

9167180820

main91671-80820

46 parts on this diagram · 3 diagrams in section
