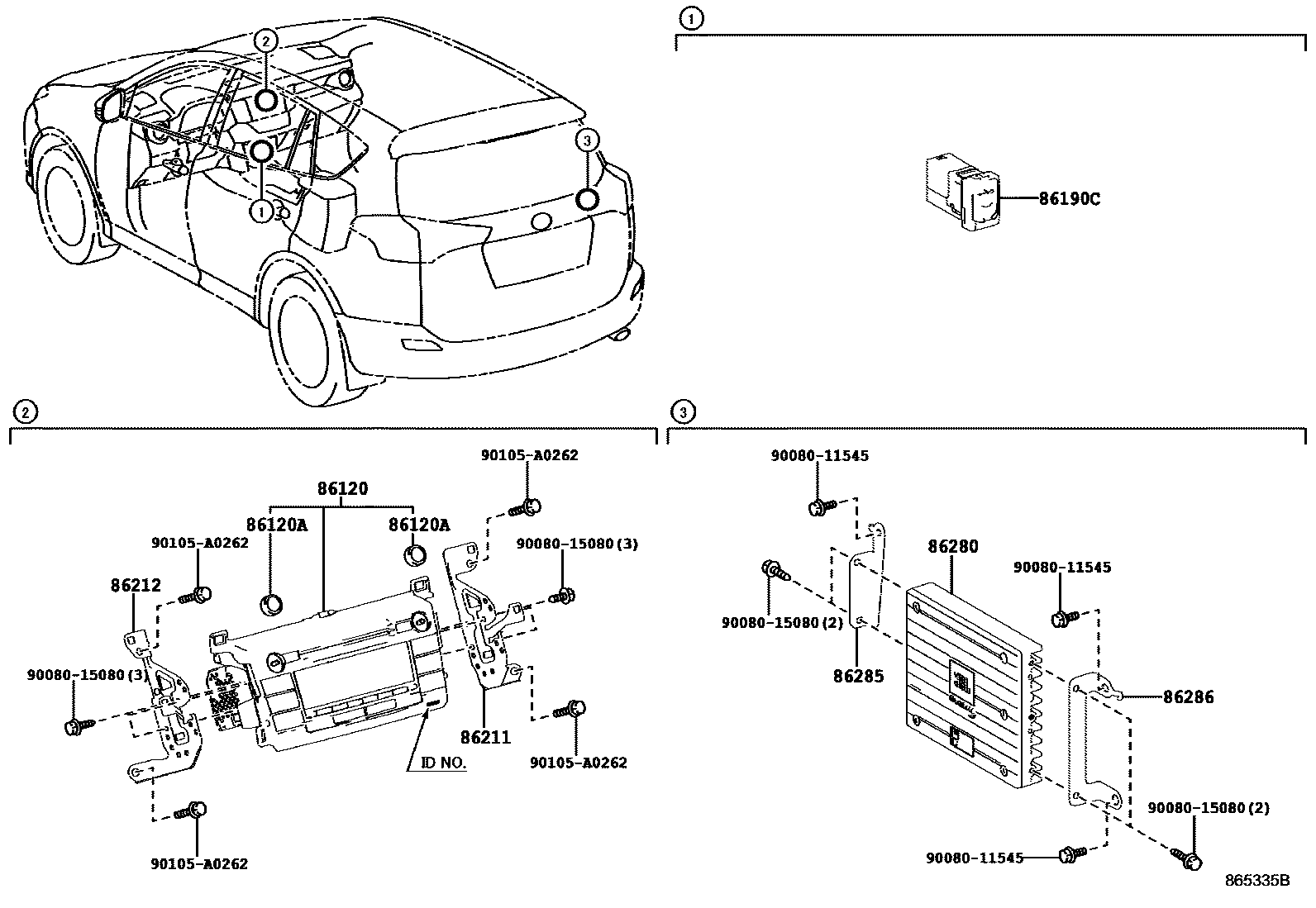

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0R040iASA4#..LE..CND201301-201511

FUJITSU TEN,ID100107

main86120-0R160iASA4#..LE..CND201511-201709

FUJITSU TEN,ID100594,AUDIO-CD & *BT & 4SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-23035×2iASA4#..LE..CND201301-201511

main90011-23041×2iASA4#..LE..CND201511-201709

AUDIO-CD & *BT & 4SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0R010iASA4#201301-201511

86211BRACKET, RADIO, NO.1

main86211-0R050iASA4#201301-201511

main86211-0R080iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

86212BRACKET, RADIO, NO.2

main86212-0R050iASA4#201301-201511

main86212-0R080iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0R020iASA4#..LIMD; ASA4#..LIMD..USA201301-201312

AUDIO-*DA & JBL & WITH(*EXB); AUDIO-*DA & JBL & WITH(ENTUNE&*EXB)

main86280-0R030iASA4#..LIMD; ASA4#..LIMD..USA201312-201511

AUDIO-AVN & JBL; AUDIO-AVN & JBL & ENTUNE

main86280-0R040iASA4#..(LIMD,SE)..USA; ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA201511

AUDIO-AVN & JBL; AUDIO-AVN & XM & JBL

86285BRACKET, AMPLIFIER, NO.1

main86285-0R010iASA4#..LIMD; ASA4#..LIMD..USA201301-201312

AUDIO-*DA & JBL & WITH(*EXB); AUDIO-*DA & JBL & WITH(ENTUNE&*EXB)

86286BRACKET, AMPLIFIER, NO.2

main86286-0R010iASA4#..LIMD; ASA4#..LIMD..USA201301-201312

AUDIO-*DA & JBL & WITH(*EXB); AUDIO-*DA & JBL & WITH(ENTUNE&*EXB)

9008011545

main90080-11545

9008015080

main90080-15080

90105A0262

main90105-A0262

11 parts on this diagram · 2 diagrams in section
