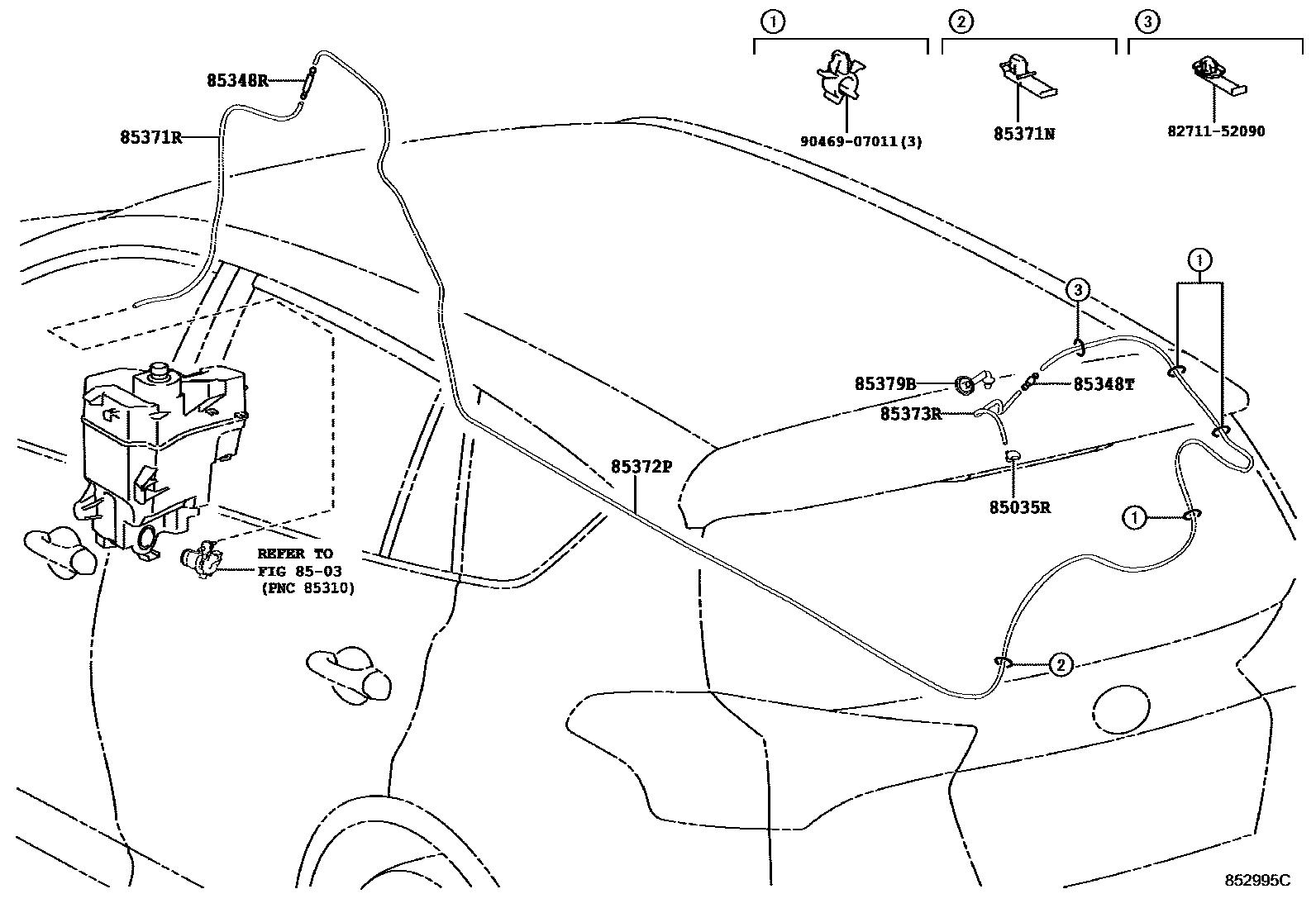

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-42020iASA4#201301-201511

85348RJOINT, REAR WASHER HOSE, NO.1

main85385-48320iASA4#201301-201511

85348TJOINT, REAR WASHER HOSE, NO.2

main85317-02300iASA4#201301-201511

85371NCLAMP, REAR WASHER HOSE

main82711-3A640iASA4#201301-201511

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33054iASA4#201301-201511

L=840

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33194iASA4#201301-201511

L=4650

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33179iASA4#201301-201511

L=350

85379BGROMMET, WASHER, A

main85373-44010iASA4#201301-201511

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9046907011

main90469-07011

11 parts on this diagram · 1 diagram in section
