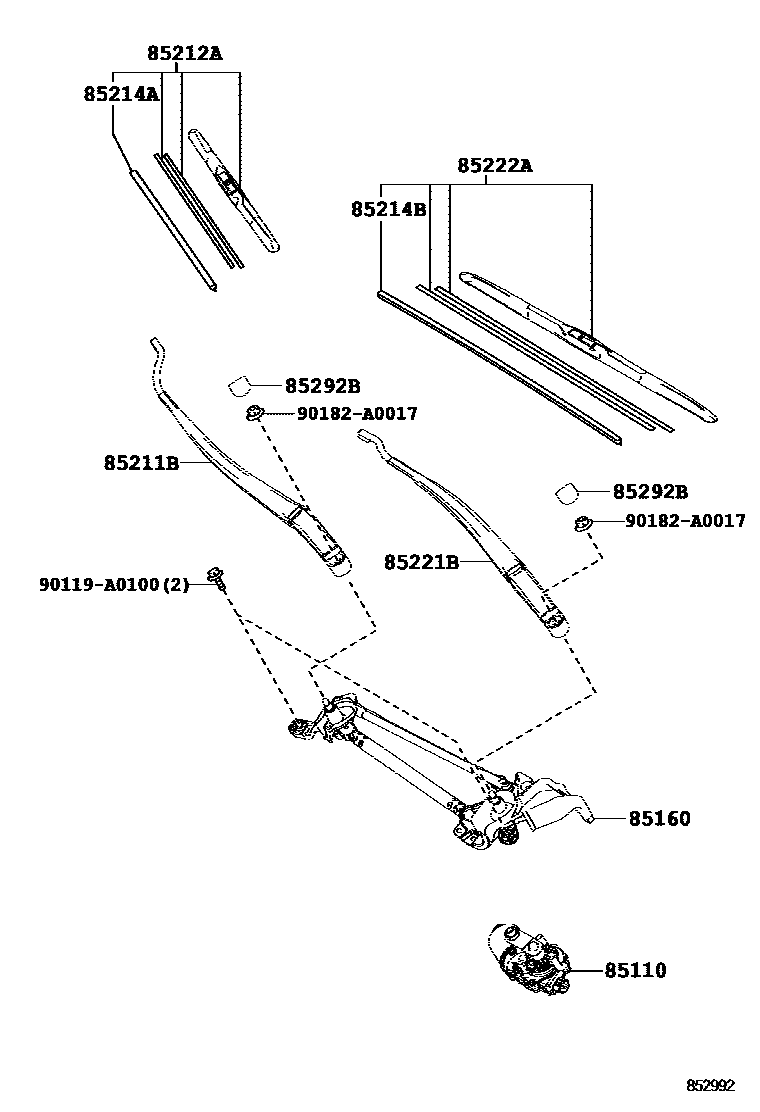

Toyota RAV4 (NAP)665 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

85110-0R030

85160LINK ASSY, WINDSHIELD WIPER

85150-0R030

85211BARM, FRONT WIPER, RH

85212ABLADE, FR WIPER, RH

85214ARUBBER, WIPER, RH

85214BRUBBER, WIPER, LH

85221BARM, FRONT WIPER, LH

85222ABLADE, FR WIPER, LH

85292BCAP, FRONT WIPER ARM HEAD

90119A0100

90119-A0100

90182A0017

90182-A0017

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RAV4 (NAP)665

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAV4 (NAP)665. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
