WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
89747BUZZER, WIRELESS DOOR LOCK
897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
main897B0-0R021iASA4#..LIMD..USA; ASA4#..XLE..USA; ASA42..SE; ASA44..XLE..USA;ASA42..(SE,XLE)..USA201803
PUERTORICO SPEC&SPARE TIRE-GROUND TIRE; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W(TWO OPERATION) & W(HANDSFREE *PBD)&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&POWER DOOR LOCK-W(TWO OPERATION) & W(POWERBACK DOOR)&KEY PLATE-FOR SMART ENTRY
89990ACOMPUTER ASSY, SMART KEY
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
WIRELESS DOOR LOCK-SMART ENTRY
WIRELESS DOOR LOCK-SMART ENTRY
WITH(FOOT LAMP)
89997ANTENNA, ELECTRICAL KEY
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
WIRELESS DOOR LOCK-SMART ENTRY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
9008011545
main90080-11545
9008011699
main90080-11699
9008017244
main90080-17244
90178A0023
main90178-A0023
9017906110
main90179-06110

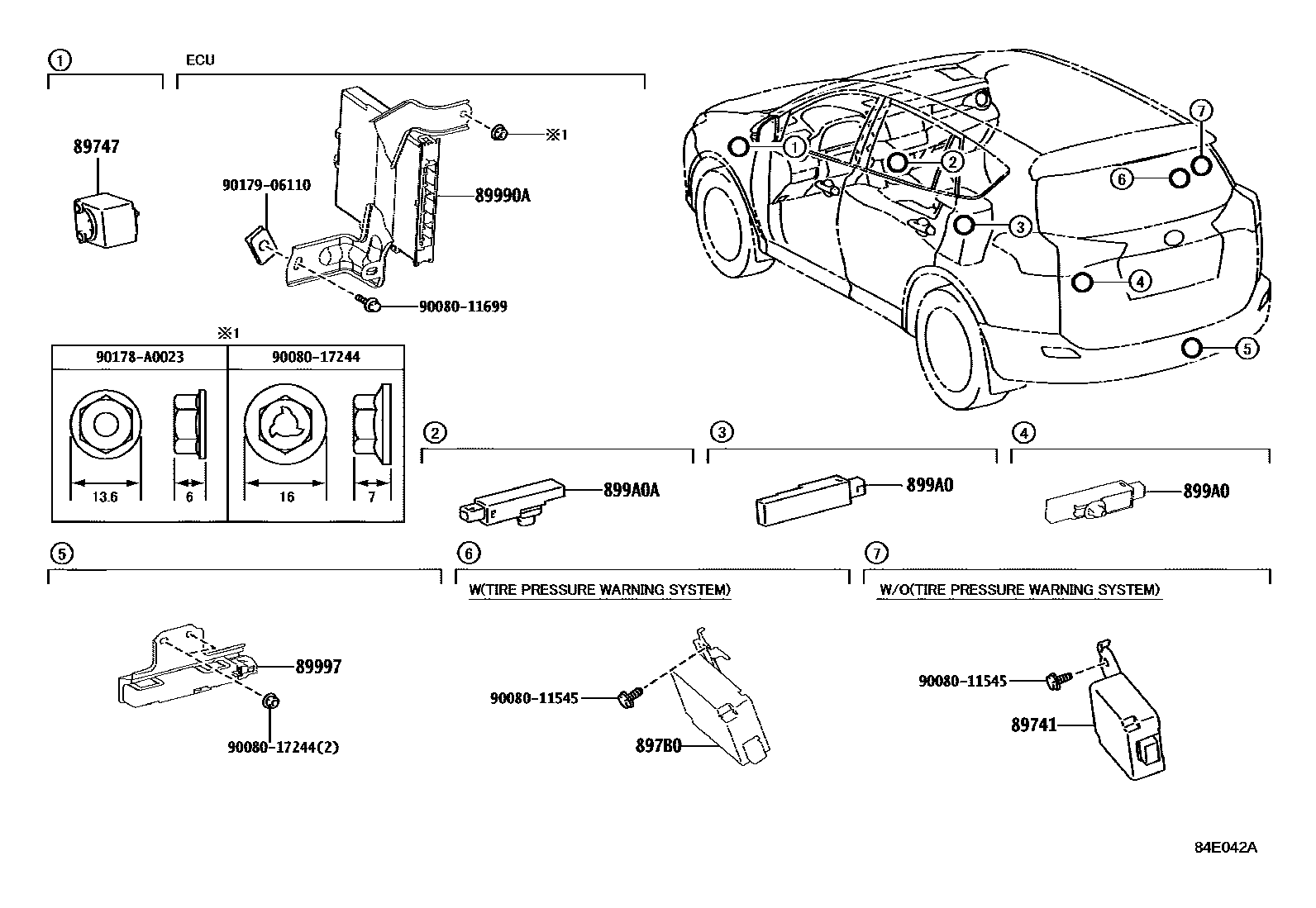

12 parts on this diagram · 3 diagrams in section
