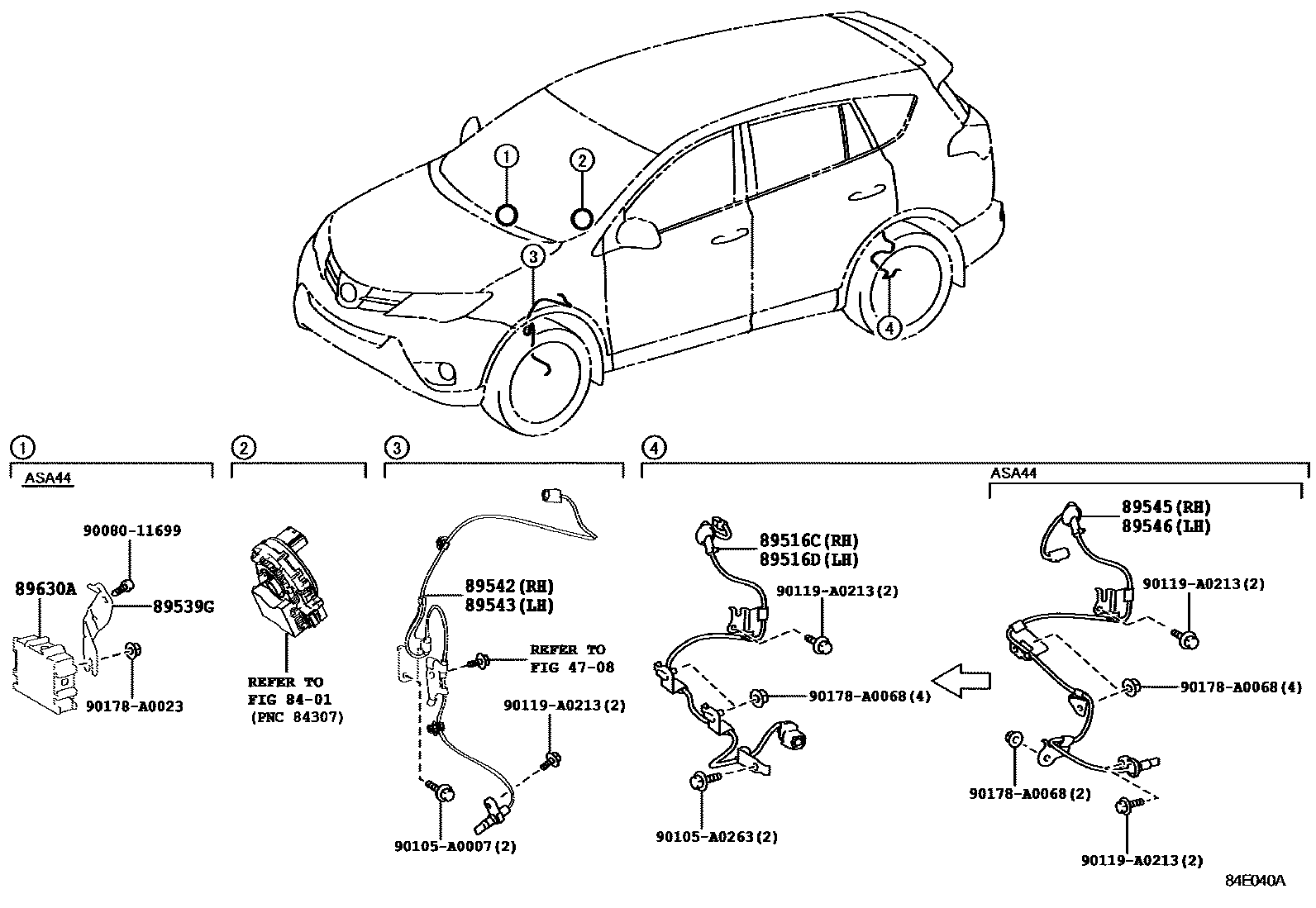

ABS & VSC

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0R050iASA42201301-201506

main89516-0R090iASA42201507-201511

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0R060iASA42201301-201506

main89516-0R100iASA42201507-201511

89539GBRACKET, COMPUTER

main89634-42020iASA44201301-201511

89542SENSOR, SPEED, FRONT RH

main89542-0R010iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

89543SENSOR, SPEED, FRONT LH

main89543-0R010iASA4#201301-201511

89545SENSOR, SPEED, REAR RH

main89545-0R050iASA44201511

main89545-42050iASA44201301-201312

89546SENSOR, SPEED, REAR LH

main89546-0R050iASA44201312-201511

main89546-42050iASA44201301-201312

89630ACOMPUTER ASSY, 4WD

main89630-42080iASA44201301-201511

main89630-42082iASA44201511

9008011699

main90080-11699

90105A0007

main90105-A0007

90105A0263

main90105-A0263

90119A0213

main90119-A0213

90178A0023

main90178-A0023

90178A0068

main90178-A0068

16 parts on this diagram · 1 diagram in section
