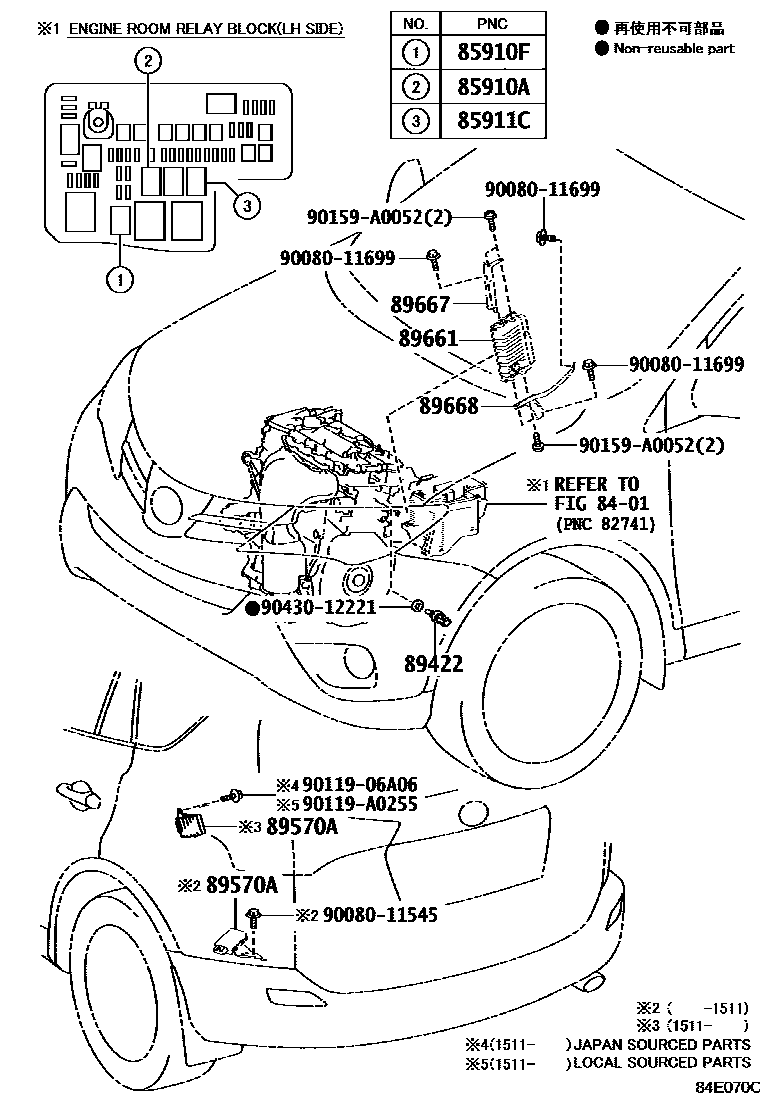

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87026iASA44201511

(L)

main90987-02027iASA44201511

(J)

85910FRELAY, COMPUTER (FOR EFI)

main90080-87026iASA42; ASA44201301-201511

(L)

main90987-02027iASA44201511

(J)

85911CRELAY, EFI 2

main90080-87026iASA42; ASA44201301-201511

(L)

main90987-02027iASA44201301-201511

(J)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-42010iASA42201301-201511

main89570-42030iASA42..(LIMD,SE)..CND201511-201709

89661COMPUTER, ENGINE CONTROL

main89661-0R070iASA42201301-201312

main89661-0R080iASA44201301-201312

main89661-0R380iASA42201312-201405

main89661-0R381iASA42201406-201411

main89661-0R390iASA44201312-201405

main89661-0R391iASA44201406-201411

main89661-0R460iASA42201411-201501

main89661-0R461iASA42201502-201511

main89661-0R470iASA44201411-201501

main89661-0R471iASA44201502-201511

main89661-0R510iASA42201511-201612

main89661-0R511iASA42201701-201708

main89661-0R512iASA42201709-201802

DENSO

main89661-0R513iASA42201803

DENSO

main89661-0R520iASA44201511-201612

main89661-0R521iASA44201701-201802

main89661-0R522iASA44201803

DENSO

main89661-0R250iASA42..USA201301-201411

MEXICO SPEC

main89661-0R400iASA44..USA201312-201411

MEXICO SPEC

main89661-0R480iASA42..USA201411-201511

MEXICO SPEC

main89661-0R490iASA44..USA201411-201511

MEXICO SPEC

main89661-0R530iASA42..USA201511

MEXICO SPEC

main89661-0R540iASA44..USA201511

MEXICO SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0R010iASA4#201301-201511

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0R010iASA4#201301-201511

9008011545

main90080-11545

9008011699

main90080-11699

9011906A06

main90119-06A06

90119A0255

main90119-A0255

90159A0052

main90159-A0052

9043012221

main90430-12221

15 parts on this diagram · 1 diagram in section
