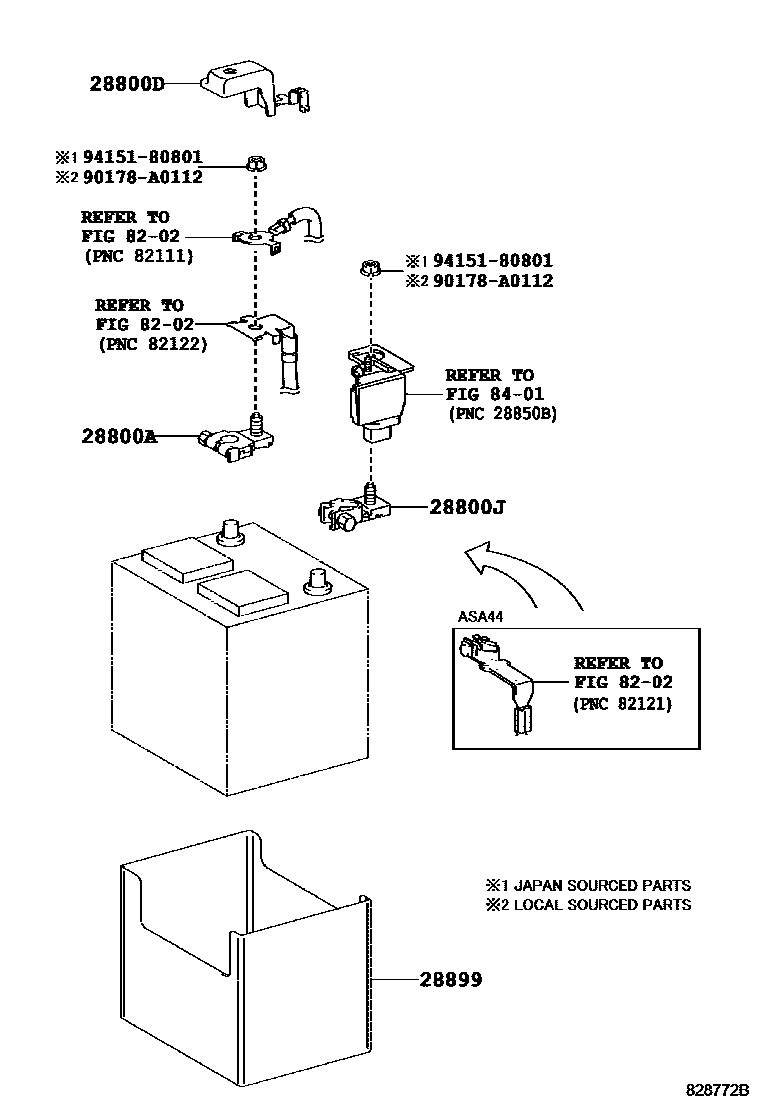

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFE..ASA4#201301-201511

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0E010i2ARFE..ASA4#201301-201511

main82821-12490i2ARFE..ASA42..(LIMD,SE)..CND201609-201709

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i2ARFE..ASA42201301-201511

28899INSULATOR, BATTERY

main28899-36020i2ARFE..ASA4#201301-201511

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178A0112

main90178-A0112

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
