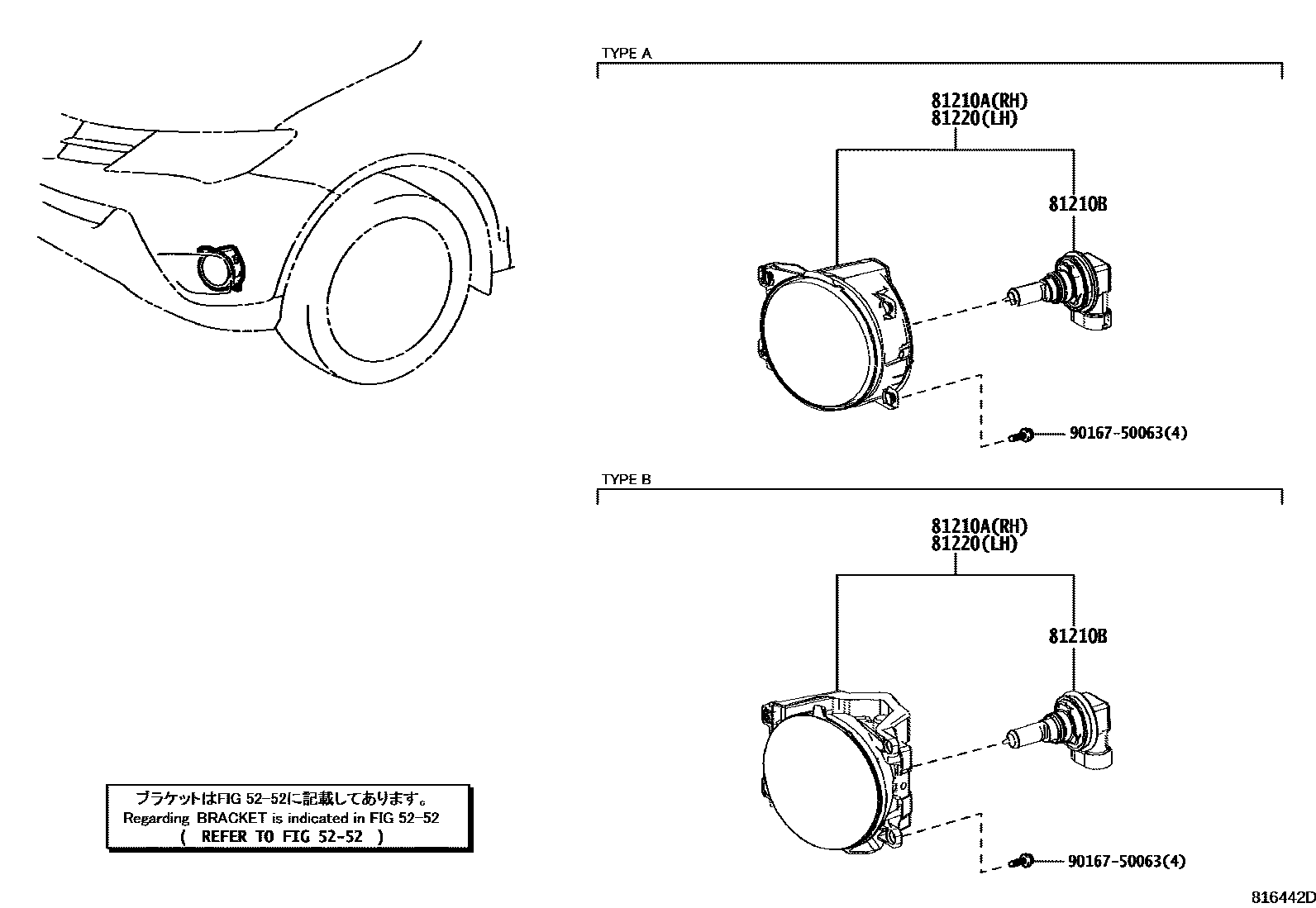

FOG LAMP

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-02160iASA4#..XLE..USA; ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA201511

MEXICO SPEC

main81210-0R020iASA4#..LIMD,XLE201301-201511

TYPE A:REFER ILLUST.

main81210-60180iASA4#..LIMD,XLE201301-201412

TYPE B:REFER ILLUST.

main81210-60200iASA4#..LIMD,XLE201501-201511

TYPE B:REFER ILLUST.

81210BBULB, FOG LAMP

main90981-13090×2iASA4#..XLE..USA; ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA201511

12V 19W; 12V 19W,MEXICO SPEC

main90981-WD017×2iASA4#..LIMD,XLE201301-201511

12V 19W,TYPE A:REFER ILLUST.

81220LAMP ASSY, FOG, LH

main81220-02160iASA4#..XLE..USA; ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA201511

MEXICO SPEC

main81220-0R020iASA4#..LIMD,XLE201301-201511

TYPE A:REFER ILLUST.

main81220-60100iASA4#..LIMD,XLE201301-201412

TYPE B:REFER ILLUST.

main81220-60120iASA4#..LIMD,XLE201501-201511

TYPE B:REFER ILLUST.

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
