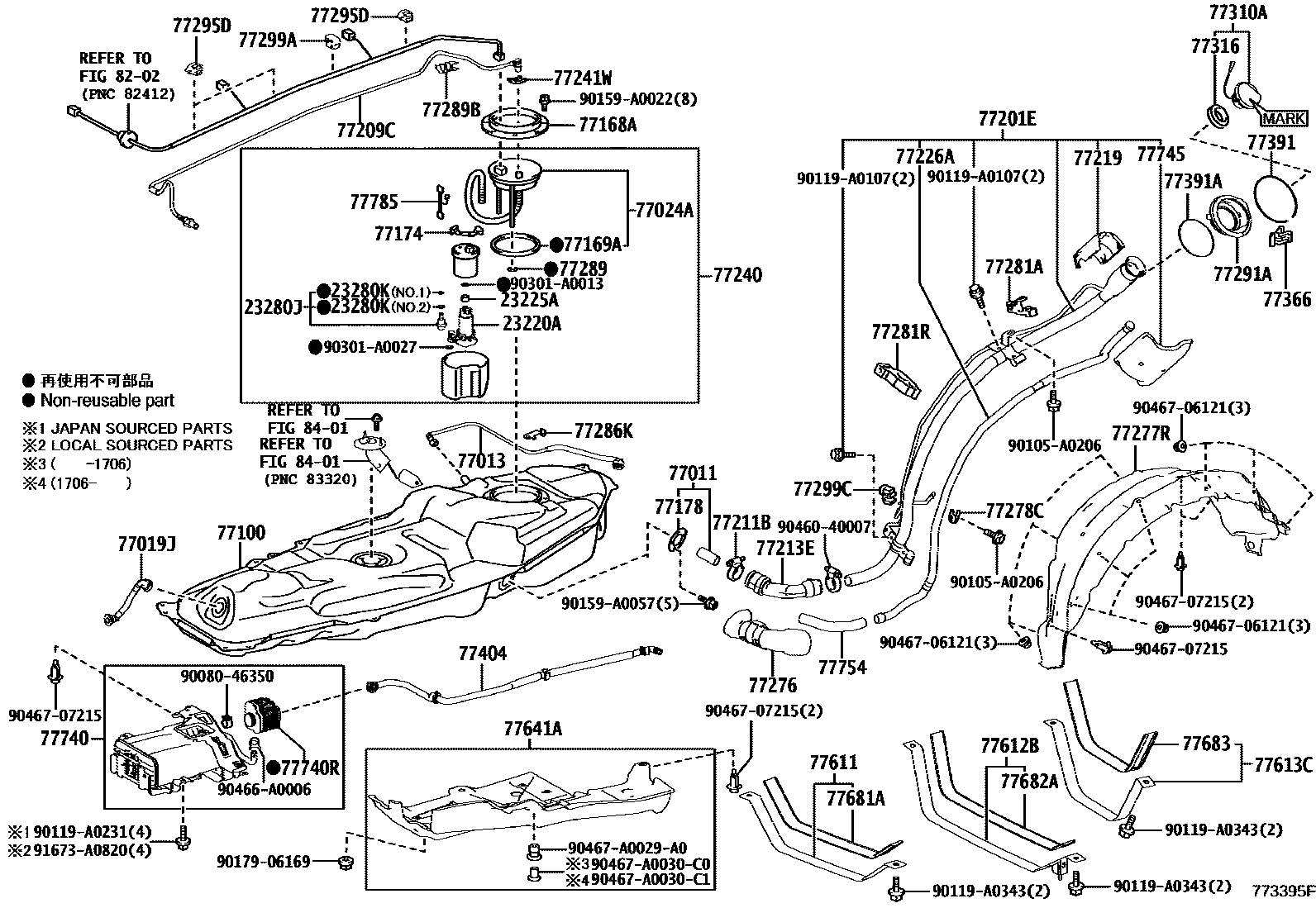

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0P101i2ARFE..ASA42201301-201709

main23220-0V021i2ARFE..ASA44201301-201511

23225ASPACER, FUEL PUMP

main23225-0V010i2ARFE..ASA4#201309-201709

main23225-21020i2ARFE..ASA4#201301-201308

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFE..ASA4#201301-201709

NO.1:REFER ILLUST.

main90301-15024i2ARFE..ASA4#201301-201709

NO.2:REFER ILLUST.

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-42020iASA42..(LIMD,SE)..CND201301-201709

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77015-0R020iASA4#201301-201709

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-42080iASA4#201301-201709

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0R010iASA4#201301-201709

77100TANK ASSY, FUEL

main77001-0R060iASA4#201301-201709

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iASA4#201301-201709

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iASA4#201301-201709

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0R010iASA4#201301-201709

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iASA4#201301-201709

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0R030iASA4#201301-201709

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R030iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iASA4#201301-201709

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0R030iASA4#201301-201709

77219COVER, FUEL TANK FILLER PIPE

main77219-0E010iASA42..(LIMD,SE)..CND201301-201709

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0R030iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

77240TUBE ASSY, FUEL SUCTION

main77020-0R010iASA44201301-201511

main77020-0R020iASA42..USA;ASA42..(LE,XLE)..CND201301-201709

77241WCLIP, TUBE JOINT

main77241-06020iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

77276PROTECTOR, FUEL HOSE

main77276-42060iASA4#201301-201709

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0R030iASA4#201301-201709

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-0R020iASA4#201301-201709

77281ACLAMP, FUEL FILLER PIPE

main77281-0R010iASA4#201301-201709

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-0R020iASA4#201301-201709

77286KCLAMP, FUEL TUBE, NO.2

main77286-0R010iASA4#201301-201709

77289HOLDER, FUEL TANK PIPE SETTING

main77289-02020iASA4#201301-201709

77289BCLAMP, FUEL TUBE, NO.3

main77289-0R030iASA4#201301-201709

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0R030iASA4#201301-201709

77295DGROMMET, FUEL TUBE

main77295-0R020iASA4#201301-201709

77299ACLAMP, FUEL TUBE, NO.5

main77299-0R030iASA4#201301-201709

77299CCLAMP (FOR FUEL FILLER PIPE)

main77299-0E010iASA4#201301-201709

77310ACAP ASSY, FUEL TANK

main77300-07010iASA4#201301-201312

MARK A:REFER ILLUST.

main77300-07030iASA4#201312-201511

MARK S:REFER ILLUST.

main77300-07030iASA42..(LIMD,SE)..CND201511-201709

77316GASKET, FUEL TANK CAP

main77316-06070iASA4#201301-201709

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iASA4#201301-201709

77391RING, FUEL INLET BOX

main77391-12020iASA4#201301-201709

77391ARING, FUEL INLET BOX

main77391-30020iASA4#201301-201709

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-0R040iASA4#201301-201709

77611BAND, FUEL TANK

main77601-0R020iASA4#201301-201709

77612BBAND, FUEL TANK, NO.2

main77602-0R020iASA4#201301-201709

77613CBAND, FUEL TANK, NO.3

main77603-0R020iASA4#201301-201709

77641APROTECTOR, FUEL TANK, NO.1

main77641-0R030iASA4#201301-201709

77681ASEAT, FUEL TANK BAND

main77681-0R030iASA4#201301-201709

77682ASEAT, FUEL TANK BAND, NO.2

main77681-0R040iASA4#201301-201709

77683SEAT, FUEL TANK BAND, NO.3

main77681-0R050iASA4#201301-201709

77740CANISTER ASSY, CHARCOAL

main77740-0R020iASA4#201301-201709

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-AF004iASA4#201301-201503

main90910-AF006iASA4#201504-201709

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-0E010iASA4#201301-201709

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-0R030iASA4#201301-201709

77785HARNESS, FUEL PUMP

main77785-0R010iASA4#201301-201709

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008046350

main90080-46350

90105A0206

main90105-A0206

90119A0107

main90119-A0107

90119A0231

main90119-A0231

90119A0343

main90119-A0343

90159A0022

main90159-A0022

90159A0057

main90159-A0057

9017906169

main90179-06169

90301A0013

main90301-A0013

90301A0027

main90301-A0027

9046040007

main90460-40007

90466A0006

main90466-A0006

9046706121

main90467-06121

9046707215

main90467-07215

90467A0029A0

main90467-A0029A0

90467A0030C0

main90467-A0030C0

90467A0030C1

main90467-A0030C1

91673A0820

main91673-A0820

71 parts on this diagram · 3 diagrams in section
