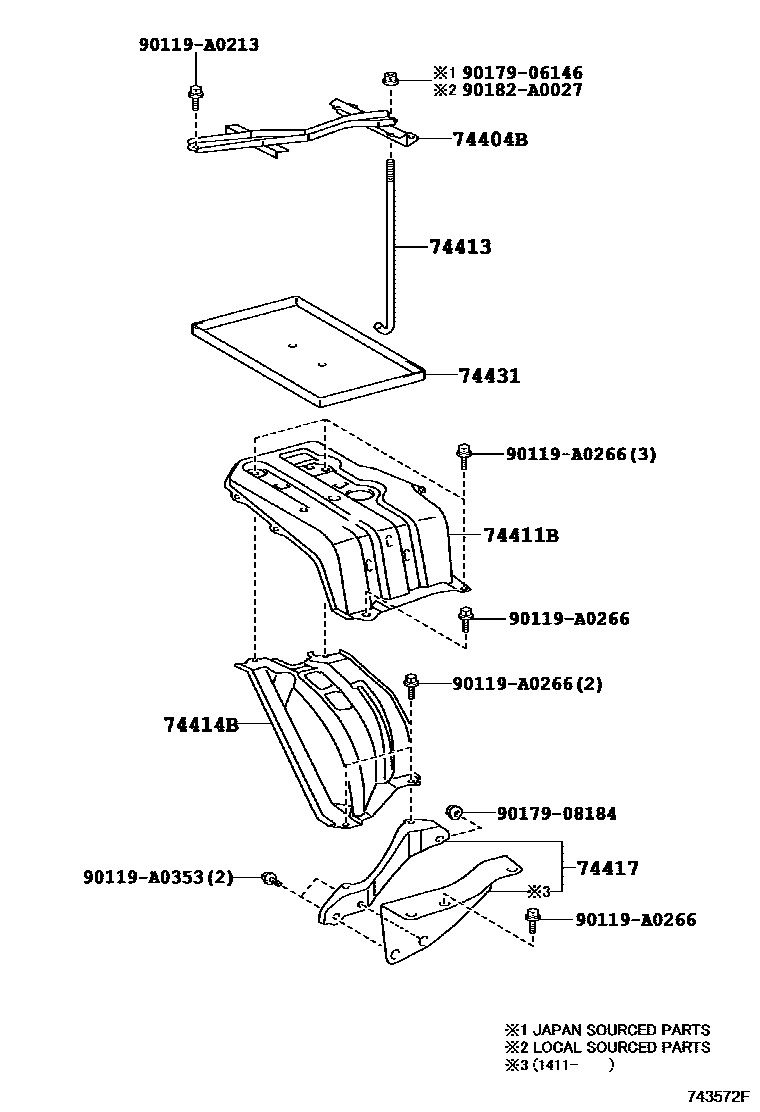

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-0R030iASA4#201301-201709

74411BBRACKET, BATTERY, FRONT

main74411-0R030iASA4#201301-201411

main74411-0R050iASA4#201411-201709

74413BOLT, BATTERY CLAMP

main74451-10060iASA4#201301-201506

main74451-10061iASA4#201507-201709

sub74451-42030

74414BREINFORCEMENT, BATTERY BRACKET

main74414-0R010iASA4#201301-201411

main74414-0R030iASA4#201411-201709

74417BRACKET, BATTERY CARRIER

main74401-0R010iASA42..(LIMD,SE)..CND201411-201709

main74417-0R010iASA4#201301-201411

74431TRAY, BATTERY

main74431-0R040iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

90119A0213

main90119-A0213

90119A0266

main90119-A0266

90119A0353

main90119-A0353

9017906146

main90179-06146

9017908184

main90179-08184

90182A0027

main90182-A0027

12 parts on this diagram · 1 diagram in section
