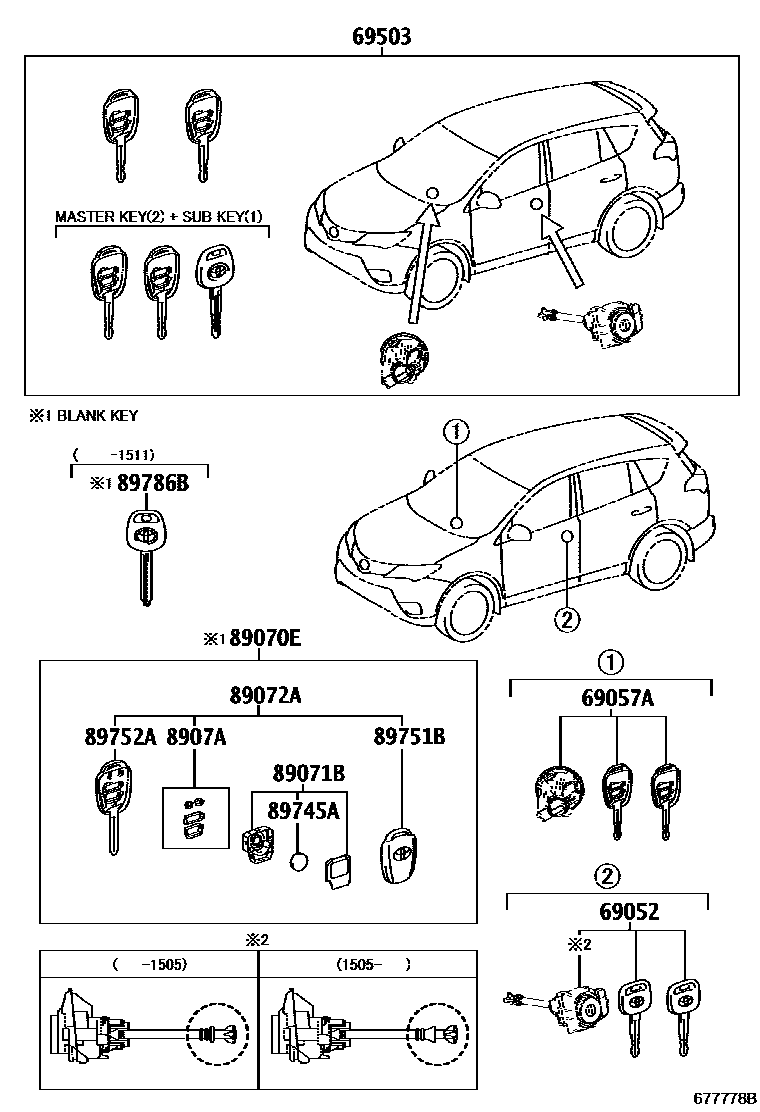

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69005-0R070supersedes 69052-0R050iASA4#..XLE; ASA44..LIMD;ASA42..LIMD..USA; ASA44..SE,XLE;ASA42..XLE..CND;ASA42..(SE,XLE)..USA201511
KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
KEY PLATE-MASTER KEY(2) + SUB KEY(1)
KEY PLATE-MASTER KEY(2) + SUB KEY(1)
89070ETRANSMITTER ASSY, DOOR CONTROL
MEXICO SPEC; WIRELESS DOOR LOCK-SMART ENTRY
MEXICO SPEC
MEXICO SPEC,REFER TO PNC 69052; REFER TO PNC 69052
MEXICO SPEC,REFER TO PNC 69052; REFER TO PNC 69052
MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY,REFER TO PNC 69052; MEXICO SPEC,REFER TO PNC 69052; REFER TO PNC 69052; WIRELESS DOOR LOCK-SMART ENTRY,REFER TO PNC 69052
MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY,REFER TO PNC 69052; MEXICO SPEC,REFER TO PNC 69052; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052; REFER TO PNC 69052; WIRELESS DOOR LOCK-SMART ENTRY,REFER TO PNC 69052
MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052; MEXICO SPEC,REFER TO PNC 69052; REFER TO PNC 69052
main89070-0R121iASA4#..(LE,SE,XLE)..USA; ASA4#..(SE,XLE)..USA; ASA4#..SE..USA; ASA4#..XLE..USA201511
BLANK KEY; KEY PLATE-FOR SMART ENTRY,BLANK KEY; MEXICO SPEC&KEY PLATE-FOR SMART ENTRY,BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLANK KEY; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,BLANK KEY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLANK KEY
main89070-0R220supersedes 89070-0R101iASA4#..LIMD..CND; ASA4#..LIMD..USA; ASA4#..XLE..USA201411-201505
MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),REFER TO PNC 69052; MEXICO SPEC,REFER TO PNC 69052; REFER TO PNC 69052; WIRELESS DOOR LOCK-SMART ENTRY,REFER TO PNC 69052
POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR),BLANK KEY
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1)
main89071-0R080×2supersedes 89071-0R090iASA4#..LIMD..CND; ASA4#..LIMD..USA; ASA4#..XLE..USA; ASA42..LIMD..USA; ASA42..XLE..USA201411-201511
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTERKEY(2) + SUB KEY(1); WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
main89071-0R090×2supersedes 89071-0R040iASA4#..(LE,SE,XLE)..USA; ASA4#..XLE..CND; ASA42..(LE,XLE)..CND;ASA44..(LE,SE,XLE)..CND; ASA42..XLE..CND;ASA44..(SE,XLE)..CND; ASA44..SE..CND201511
KEY PLATE-FOR SMART ENTRY; MEXICO SPEC; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); MEXICO SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
main89071-0R040×2iASA4#..(LE,XLE)..USA; ASA4#..XLE..USA; ASA42..(LE,XLE)..USA; ASA42..XLE..USA201301-201511
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTERKEY(2) + SUB KEY(1)
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY
BLANK KEY; MEXICO SPEC,BLANK KEY; WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; MEXICO SPEC,BLANK KEY
BLANK KEY; MEXICO SPEC,BLANK KEY
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY
8907ASWITCH SET, TRANSMITTER
main8907A-42010×2supersedes 8907A-52020iASA4#..LIMD; ASA42..LIMD..USA; ASA42..LIMD;ASA44..LIMD..CND; ASA44..LIMD..USA201301-201511
MEXICO SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTERKEY(2) + SUB KEY(1)
89745ABATTERY, TRANSMITTER
CR2016; CR2016,POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY; CR2016,POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY
main89745-0R010iASA4#..USA; ASA4#..XLE..USA; ASA42..LIMD..USA; ASA42..USA; ASA42..XLE..USA; ASA44..LIMD..USA201301-201511
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTERKEY(2) + SUB KEY(1); MEXICO SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
89751BCOVER, TRANSMITTER HOUSING
MEXICO SPEC; MEXICO SPEC&KEY PLATE-MASTER KEY(2) + SUB KEY(1); WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
MEXICO SPEC&SPARE TIRE-165/80D17(REINFORCED TEMPORARY)&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY; PUERTORICO SPEC&SPARE TIRE-GROUND TIRE&WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY&KEY PLATE-FOR SMART ENTRY
89752ACASE, TRANSMITTER HOUSING
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; MEXICO SPEC,BLANK KEY
BLANK KEY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY; WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY
BLANK KEY; MEXICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR),BLANK KEY; WIRELESS DOOR LOCK-SMART ENTRY,BLANK KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY,KEY PLATE-MASTER KEY(2) + SUB KEY(1)
BLANK KEY,KEY PLATE-MASTER KEY(2) + SUB KEY(1)
11 parts on this diagram · 2 diagrams in section
