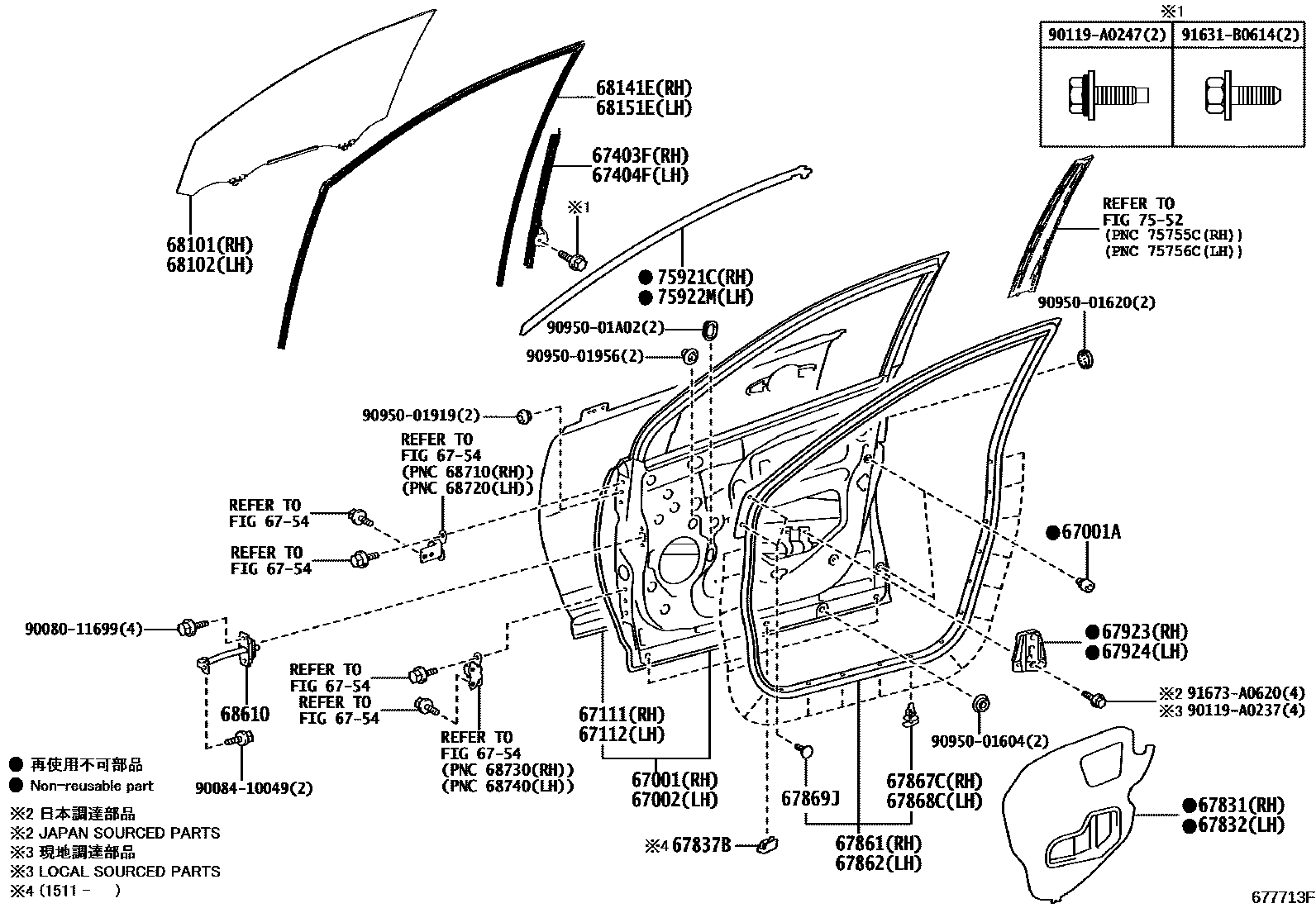

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R060iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4iASA42..(LIMD,SE)..CND201511-201709

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R060iASA4#201301-201410

main67002-0R080iASA42..(LIMD,SE)..CND201511-201709

67111PANEL, FRONT DOOR, OUTER RH

main67111-0R040iASA4#201301-201511

67112PANEL, FRONT DOOR, OUTER LH

main67112-0R040iASA4#201301-201511

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0R030iASA4#201301-201511

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0R030iASA42..(LIMD,SE)..CND201511-201709

6754FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-54

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0R040iASA4#201301-201505

main67831-0R041iASA4#201506-201511

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0R040iASA4#201301-201505

main67832-0R041iASA42..(LIMD,SE)..CND201511-201709

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0R010×6iASA42..(LIMD,SE)..CND201511-201709

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0R030iASA4#201301-201511

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0R030iASA4#201301-201511

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iASA4#201301-201511

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iASA4#201301-201511

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iASA4#201301-201511

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0R010iASA4#201301-201511

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0R010iASA4#201301-201511

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R030iASA4#201301-201511

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R030iASA4#201301-201511

68141ERUN, FRONT DOOR GLASS, RH

main68141-0R030iASA4#201301-201511

68151ERUN, FRONT DOOR GLASS, LH

main68151-0R030iASA4#201301-201511

68610CHECK ASSY, FRONT DOOR

main68610-0R030×2iASA4#201301-201312

main68610-0R031×2iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0R030iASA4#201301-201511

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0R030iASA4#201301-201511

9008011699

main90080-11699

9008410049

main90084-10049

90119A0237

main90119-A0237

90119A0247

main90119-A0247

9095001604

main90950-01604

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

91631B0614

main91631-B0614

91673A0620

main91673-A0620

37 parts on this diagram · 2 diagrams in section
