ROOF HEADLINING & SILENCER PAD

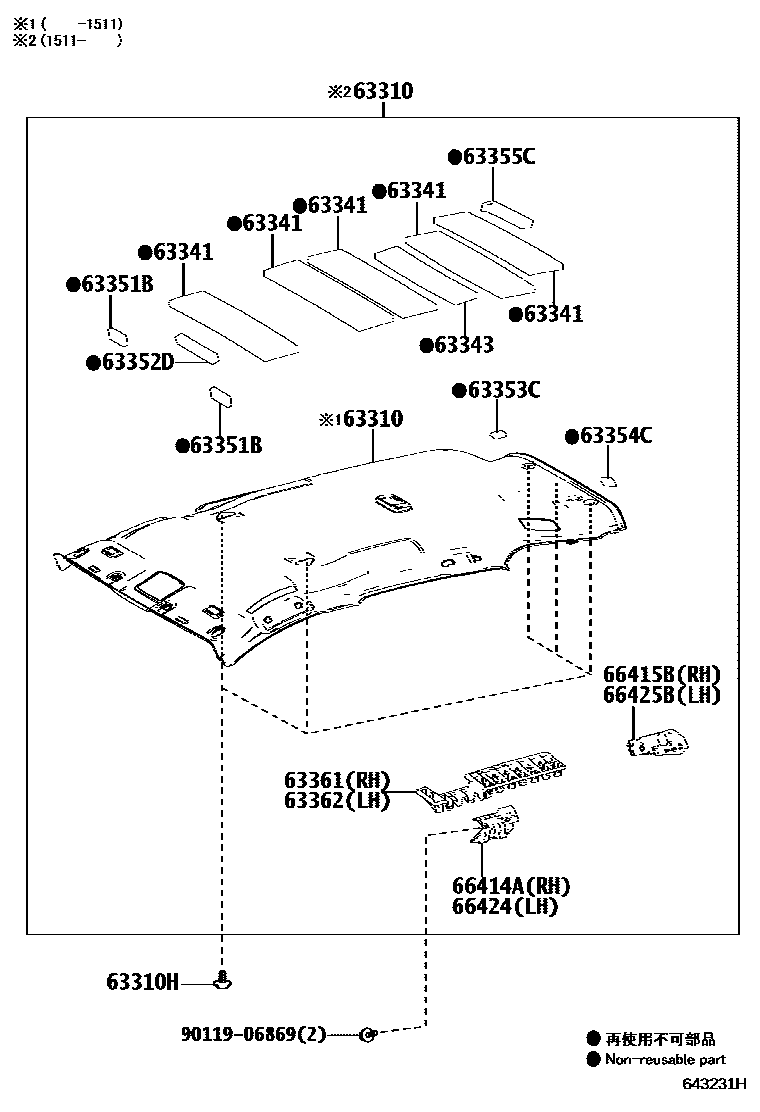

Parts diagram

63310HEADLINING ASSY, ROOF

main63310-0R070-B1i201301-201304

LT.GRAY,TRIM1#,4#

main63310-0R071-B1i201305-201511

LT.GRAY,TRIM1#,2#,4#

main63310-0R080-B1i201301-201304

LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#

main63310-0R081-B1i201305-201511

LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#

main63310-0R904i201511-201811

main63310-0R915i201511-201811

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B0×5i201301-201511

LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#

main90467-05164-C0×3i201511-201610

BLACK,TRIM20,30

main90467-05164-C7×3i201610

BLACK,TRIM20,30

63341PAD, ROOF SILENCER, NO.1

main63341-0R010×5i201511-201811

63343PAD, ROOF SILENCER, NO.3

main63343-0R010i201511-201811

63351BPAD, ROOF HEADLINING

main63351-0R010×2i201301-201511

main63351-0R011×2i201511-201811

63352DPAD, ROOF HEADLINING, NO.2

main63352-0R010i201301-201511

main63352-0R020i201511-201811

63353CPAD, ROOF HEADLINING, CENTER

main63353-0R020i201511-201811

main63353-42010i201503-201511

63354CPAD, ROOF HEADLINING FRONT SIDE

main63353-42010i201301-201305

main63354-0R010i201511-201811

main63354-42010i201305-201502

63355CPAD, ROOF HEADLINING, RH

main63355-0R020i201301-201511

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-0R060i201301-201511

main63361-0R070i201301-201511

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-0R060i201301-201511

main63362-0R070i201301-201511

66414ASPACER, SIDE RAIL, REAR RH

main66414-0R050i201301-201511

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-0R050i201301-201511

66424SPACER, SIDE RAIL, REAR LH

main66424-0R050i201301-201511

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-0R050i201511

9011906869

main90119-06869

16 parts on this diagram · 2 diagrams in section
