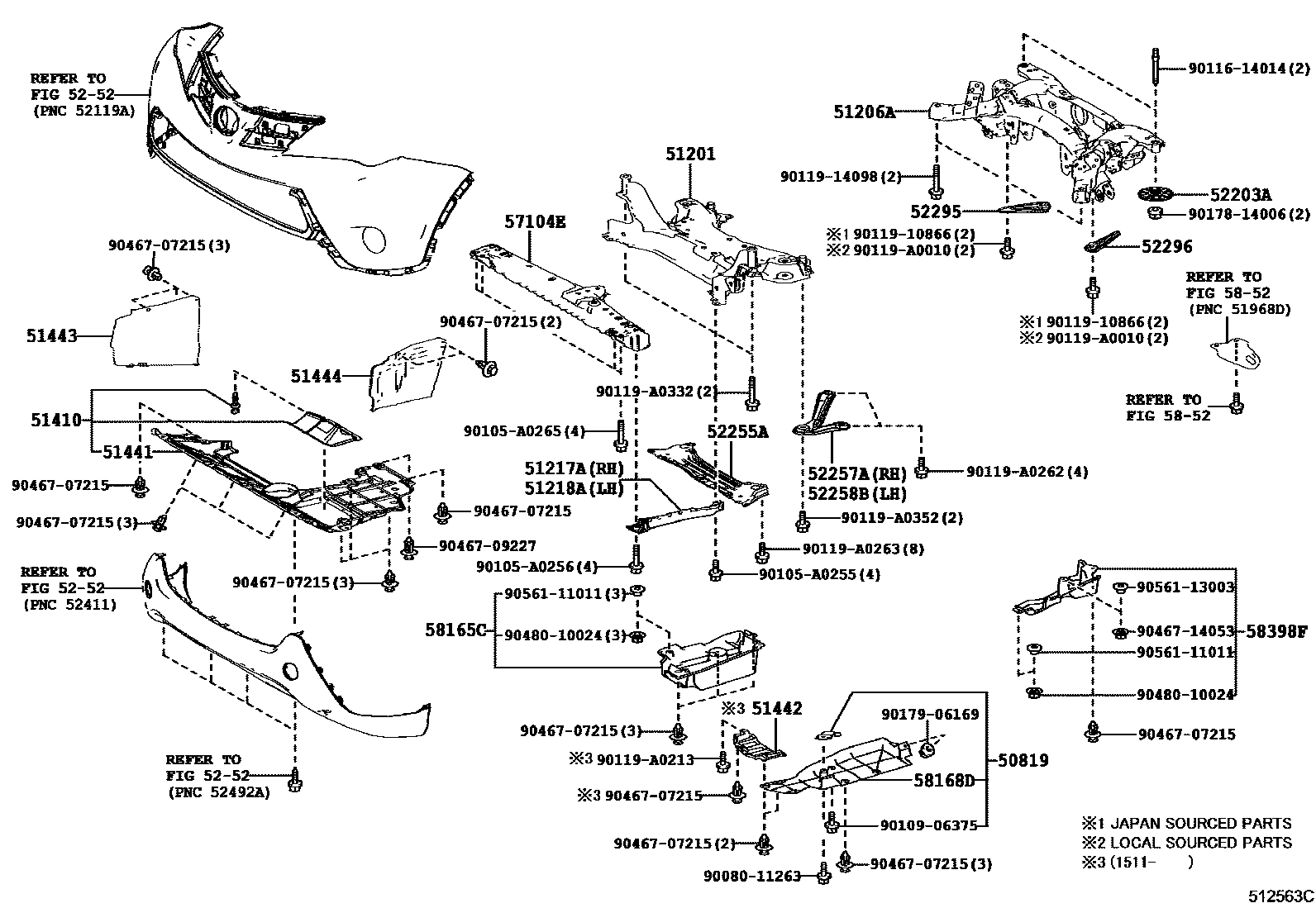

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

50819COVER, FRONT FLOOR

main50819-0R010iASA4#201301-201411

main50819-0R011iASA42..(LIMD,SE)..CND201511-201709

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0R010iASA4#201301-201308

main51201-0R011iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R032iASA4#201301-201403

main51206-0R034iASA4#201403-201511

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-0R040iASA4#201301-201511

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-0R030iASA42..(LIMD,SE)..CND201511-201709

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-0R030iASA4#..SE201511-201609

51441COVER, ENGINE UNDER, NO.1

main51441-0R030iASA4#201301-201411

main51441-0R070iASA44..SE;ASA42..SE..USA201609

51442COVER, ENGINE UNDER, NO.2

main51442-0R020iASA4#201411-201511

51443COVER, ENGINE UNDER, REAR RH

main51443-0R010iASA4#201301-201511

51444COVER, ENGINE UNDER, REAR LH

main51444-0R010iASA4#201301-201511

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-0R030×2iASA4#201301-201511

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-0R020iASA4#201301-201511

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R010iASA4#201301-201511

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R011iASA4#201301-201511

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-42010iASA4#201301-201511

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-42010iASA4#201301-201511

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-0R011iASA4#201301-201511

58165CCOVER, FRONT FLOOR, RH

main58165-0R010iASA4#201301-201511

58168DCOVER, FRONT FLOOR, CENTER LH

main58168-0R010iASA4#201301-201411

main58168-0R030iASA4#201411-201511

58398FCOVER, FLOOR UNDER, NO.1

main58398-0R030iASA4#201301-201511

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9008011263

main90080-11263

90105A0255

main90105-A0255

90105A0256

main90105-A0256

90105A0265

main90105-A0265

9010906375

main90109-06375

9011614014

main90116-14014

9011910866

main90119-10866

9011914098

main90119-14098

90119A0010

main90119-A0010

90119A0213

main90119-A0213

90119A0262

main90119-A0262

90119A0263

main90119-A0263

90119A0332

main90119-A0332

90119A0352

main90119-A0352

9017814006

main90178-14006

9017906169

main90179-06169

9046707215

main90467-07215

9046709227

main90467-09227

9046714053

main90467-14053

9048010024

main90480-10024

9056111011

main90561-11011

9056113003

main90561-13003

44 parts on this diagram · 2 diagrams in section
