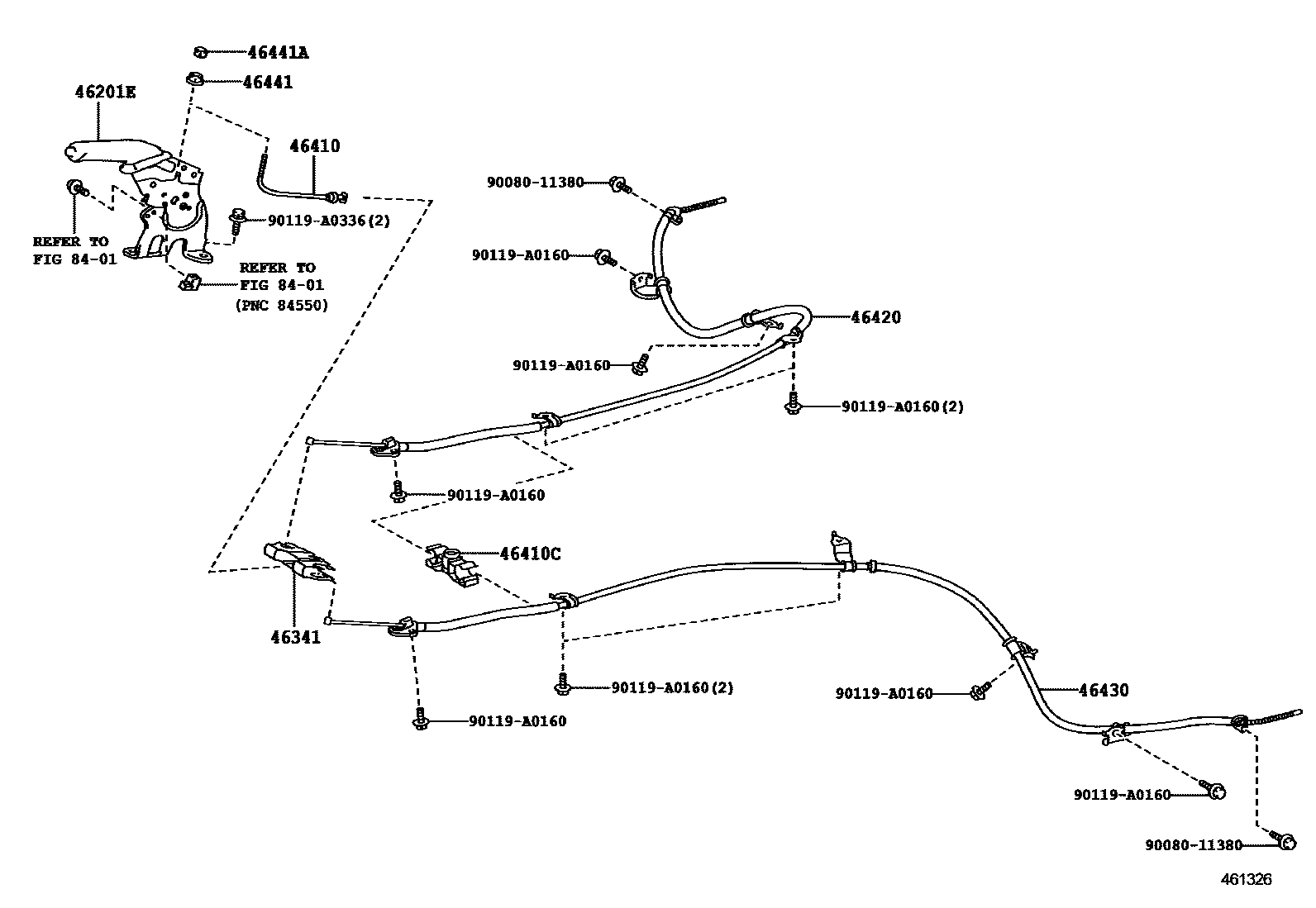

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0R040-C0iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

main46201-0R050-C0iASA44..LIMD,SE;ASA42..(LIMD,SE)..USA201511

BLACK,TRIM1#,2#,3#,4#

46341EQUALIZER, PARKING BRAKE

main46341-0R010iASA42..(LIMD,SE)..CND201511-201709

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0R010iASA4#201301-201511

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0R010iASA4#201301-201511

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0R013iASA4#201301-201511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0R013iASA4#201301-201511

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iASA4#201301-201511

46441ANUT, WIRE ADJUSTING, NO.2

main90178-A0073iASA4#201301-201511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011380

main90080-11380

90119A0160

main90119-A0160

90119A0336

main90119-A0336

12 parts on this diagram · 2 diagrams in section
