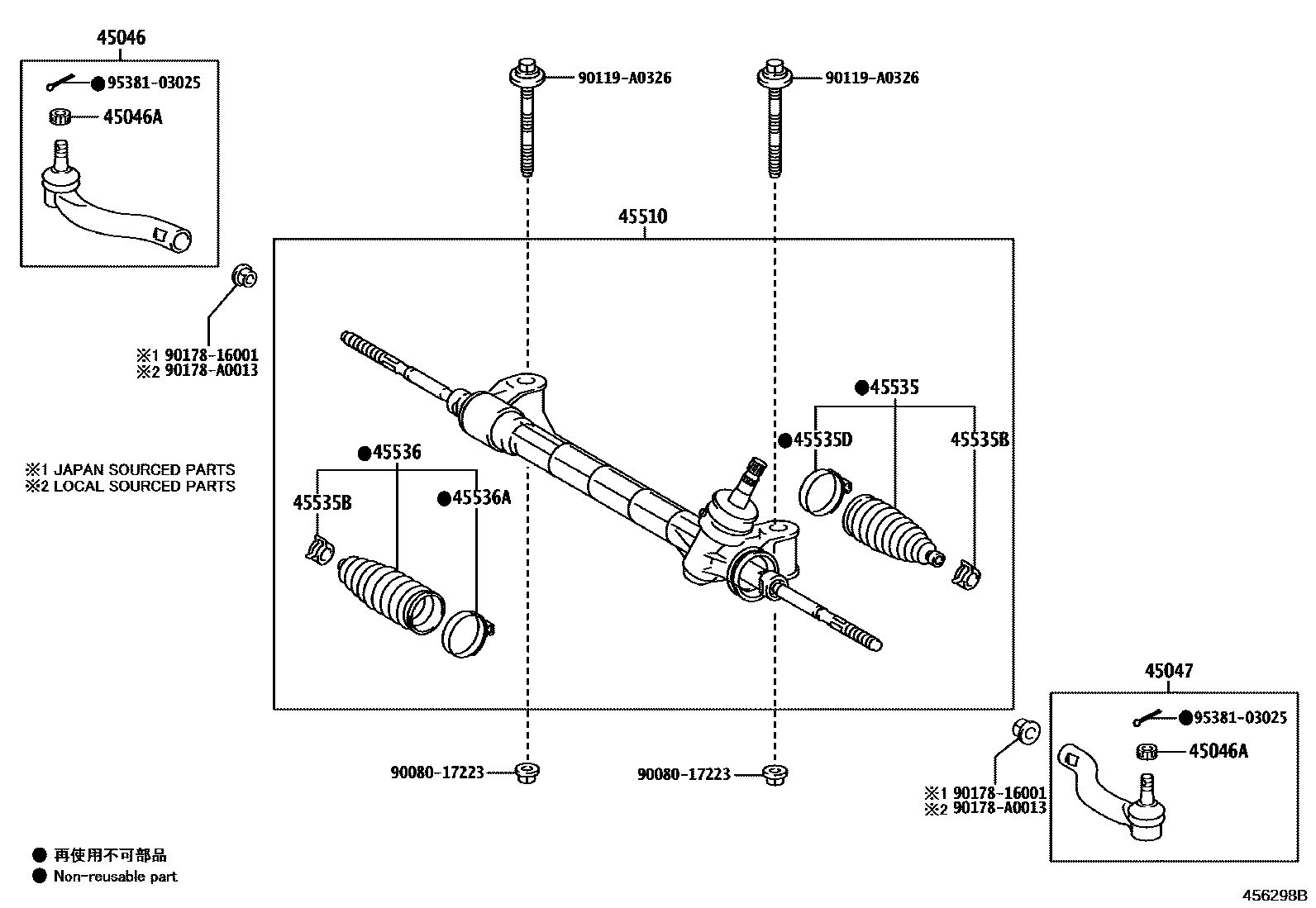

Toyota RAV4 (NAP)665 — FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9008017223
90119A0326
9017816001
90178A0013
9538103025
14 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota RAV4 (NAP)665
This section contains 14 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RAV4 (NAP)665. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
