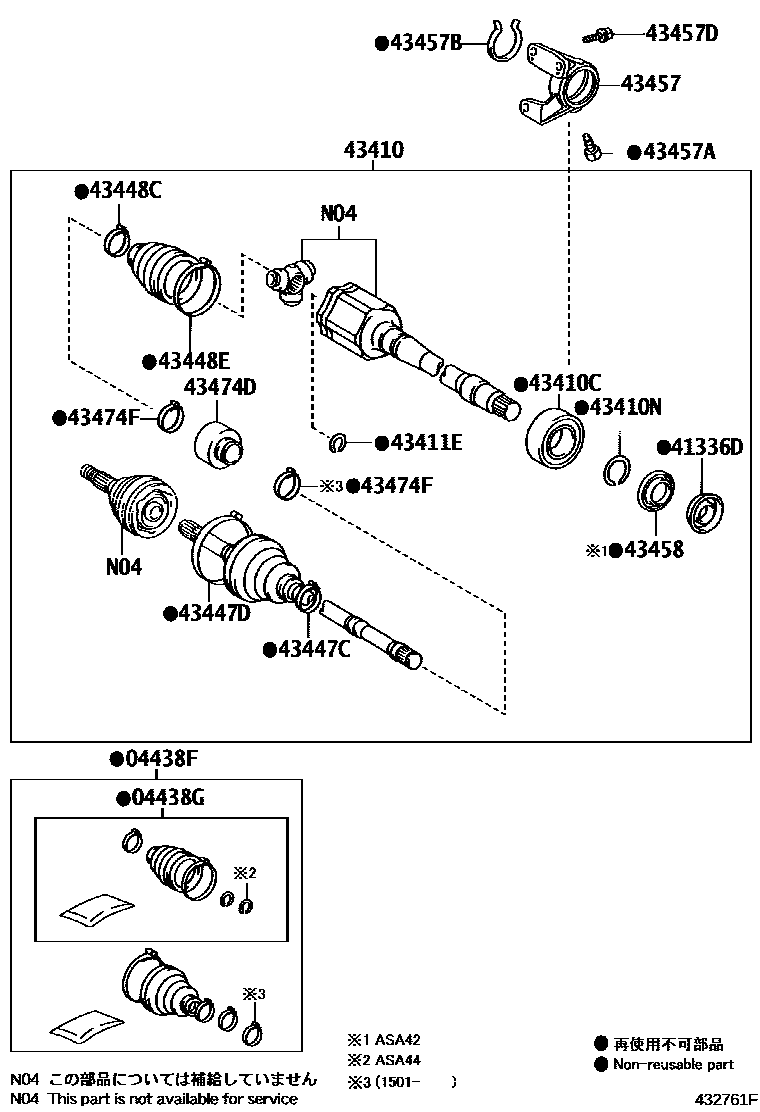

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0R061iASA42201301-201501

main04427-0R062iASA44201301-201501

main04427-0R100iASA42201501-201807

main04427-0R104iASA42201807

main04427-0R110iASA44201501-201807

main04427-0R113iASA44201807

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0R020iASA42201501-201511

main04437-0R061iASA42201301-201501

main04437-0R062iASA44201301-201511

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-07020iASA42201301-201511

main41336-0R010iASA44201301-201511

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0R090iASA42201301-201501

main43410-0R091iASA42201501-201807

main43410-0R092iASA42201807

main43410-0R100iASA44201301-201501

main43410-0R101iASA44201501-201807

main43410-0R102iASA44201807

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-A0004iASA42201301-201511

main90363-A0010iASA44201301-201811

main90363-A0017iASA44201501-201511

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-07010iASA42201301-201511

main43425-0R050iASA44201301-201511

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0R030iASA4#201301-201511

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R040iASA4#201301-201511

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R030iASA4#201301-201511

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0R060iASA4#201301-201807

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0R050iASA4#201301-201807

43457BRACKET, DRIVE SHAFT BEARING

main43457-0R050iASA44201301-201511

main43457-0T010iASA42..USA;ASA42..(LE,XLE)..CND201301-201709

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASA42..(LIMD,SE)..CND201301-201709

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iASA44201301-201511

main90521-78004iASA42..(LIMD,SE)..CND201301-201709

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087iASA4#201301-201709

43458COVER, FRONT DRIVE SHAFT DUST

main43458-07010iASA42201301-201511

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0R030iASA4#201301-201501

main43474-0R120iASA4#201501-201511

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-07090iASA4#201301-201511

18 parts on this diagram · 2 diagrams in section
