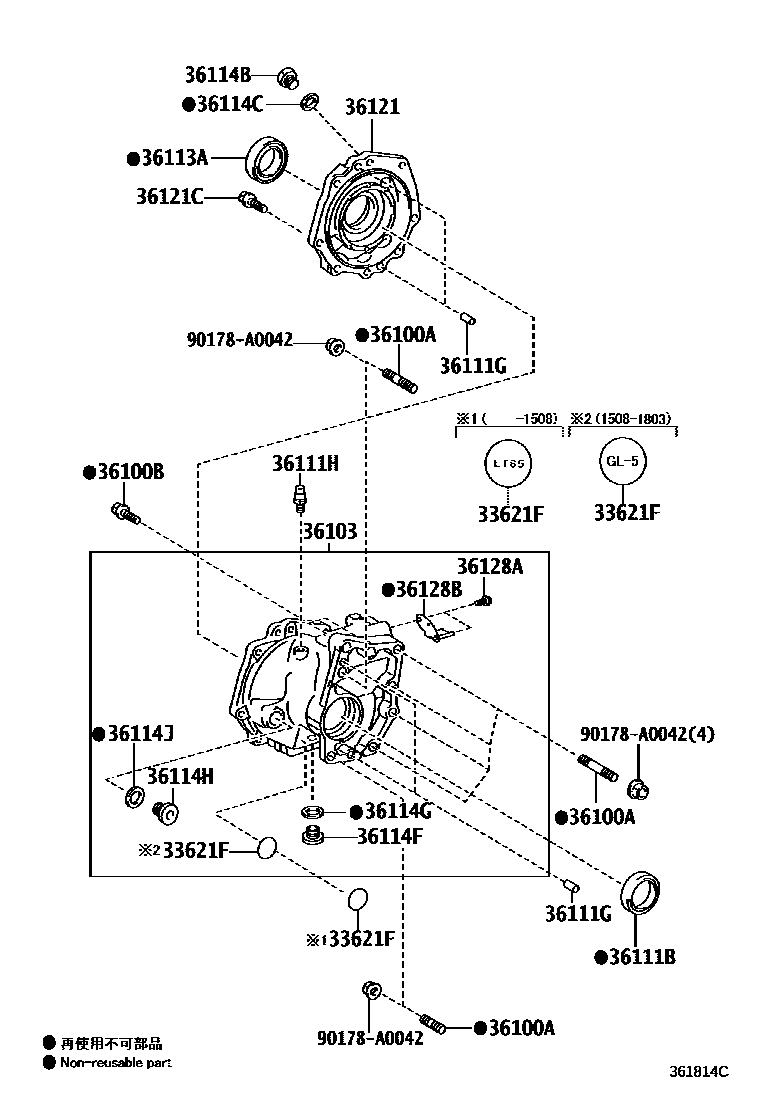

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42030iASA44201301-201508

main33621-48020iASA44201511-201803

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iASA44201511

S=22 & 22,L=69

main90116-12034iASA44201301-201511

S=19 & 19,L=47

main90116-12041×4iASA44201511

S=30 & 22,L=64

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12298×2iASA44201511

*12-1.25PX53-35

36103CASE SUB-ASSY, TRANSFER

main36103-42040iASA44201301-201508

main36103-42041iASA44201508-201511

main36103-42070iASA44201809

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iASA44201301-201511

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iASA44201301-201511

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iASA44201301-201511

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iASA44201301-201511

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iASA44201301-201511

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iASA44201301-201511

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iASA44201301-201511

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iASA44201301-201511

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iASA44201301-201511

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iASA44201301-201511

36121COVER, TRANSFER CASE, NO.1

main36121-52020iASA44201301-201511

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iASA44201301-201511

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iASA44201301-201511

36128BDEFLECTOR, BREATHER OIL

main36128-42010iASA44201301-201511

90178A0042

main90178-A0042

19 parts on this diagram · 1 diagram in section
