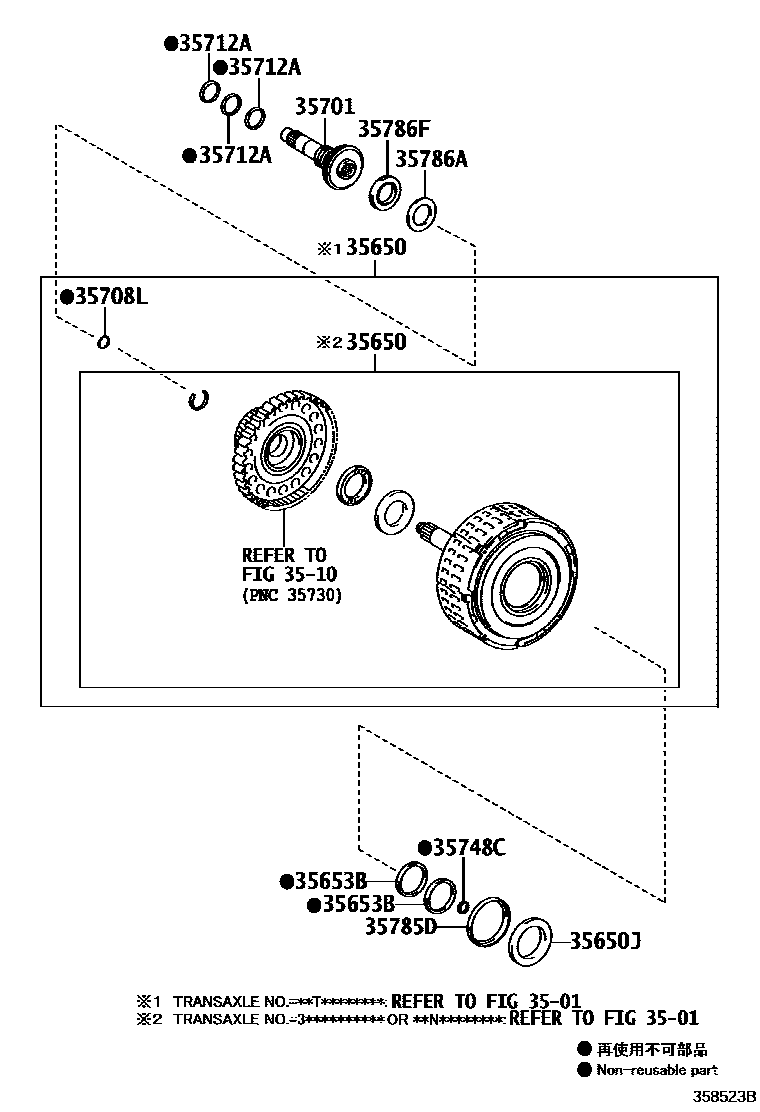

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

→ Go to FIG 35-01

3510PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

→ Go to FIG 35-10

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-06031iASA4#201707

*451

main35650-0R011iASA4#201301-201308

*325

main35650-0R012iASA4#201308-201511

*325

main35650-73020iASA4#201511-201811

*335

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASA4#201301-201310

*335

main90374-48009iASA4#201511-201811

*335

main90374-A0032iASA4#201707

*451

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010×2iASA4#201301-201511

35701SHAFT SUB-ASSY, INPUT

main35711-33080iASA4#201707

*451

main35711-33090iASA4#201511-201709

*325

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11027iASA4#201707

*451

main90301-11032iASA4#201511-201811

*335

main90301-A0024iASA4#201301-201511

*325

35712ARING, INPUT SHAFT OIL SEAL

main35712-33010×3iASA4#201511-201707

*335,*325

main35712-33020×3iASA4#201707-201709

*325

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASA4#201301-201511

35785DRACE, THRUST BEARING, NO.4

main35785-06010iASA4#201707

*451

main35785-33020iASA4#201301-201310

*335

main35785-48020iASA4#201511-201811

*335

35786ARACE, THRUST BEARING, NO.1

main35786-07010iASA4#201707

*451

main35786-33010iASA4#201511-201811

*335

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iASA4#201301-201312

*335

main90374-29007iASA4#201401-201511

*335

main90374-A0040iASA4#201301-201511

*325

12 parts on this diagram · 1 diagram in section
