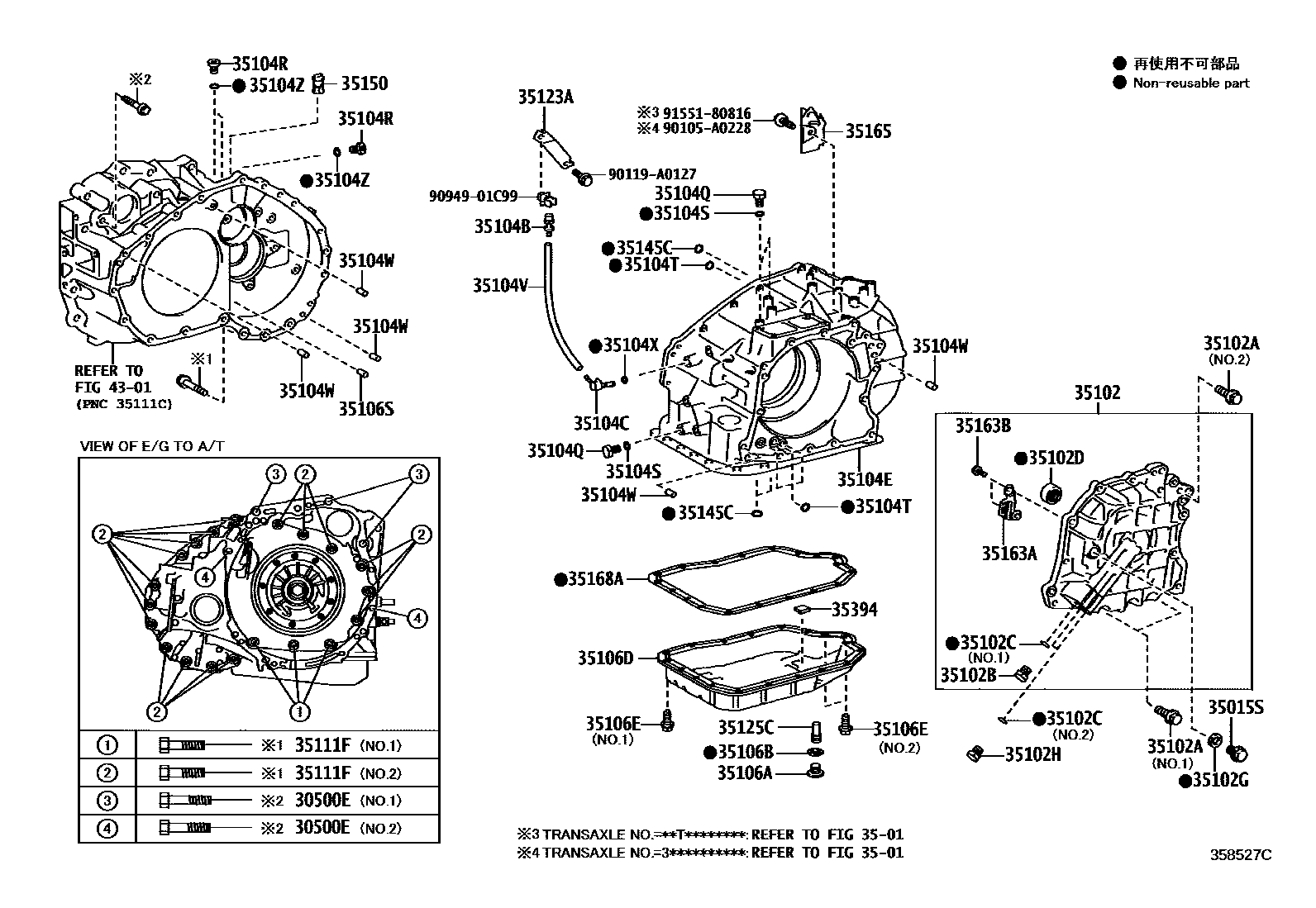

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10299×2i201301-201511

*10-1.25PX50-30,NO.2

main90080-11310×3i201511

*12-1.25PX55-30,NO.1

3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

→ Go to FIG 35-01

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064i201301-201511

*335

main90341-A0003i201301-201511

*325

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-0R010i201301-201401

*325

main35102-0R011i201511-201709

*325

main35102-0R020i201707

*451

main35102-33110i201601-201811

*335

main35102-42040i201301-201308

*335

main35102-42041i201308-201511

*335

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2i201511-201811

*8-1.25PX28-22,*335,NO.1

main90105-A0109×2i201301-201511

*8-1.25PX28-22,*325,NO.1

main90105-A0213×12i201511-201709

*8-1.25PX28-22,*325,NO.2

main91551-00828×12i201301-201511

*8-1.25PX28-22,*335,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001i201301-201511

main90341-A0001i201707

*451

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90080-30075i201707

*451,(L),NO.1

main90080-30105×2i201301-201511

*325,NO.2

main90301-06196×3i201301-201511

*325,NO.1; *335,NO.1 & NO.2

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010i201301-201511

*335

main90364-A0010i201301-201511

*325

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008i201301-201511

*335

main90430-A0003i201301-201511

*325

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2i201301-201511

*335

main90341-A0001×2i201511-201709

*325

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149i201511

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187i201301-201511

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-06031i201707

*451,(L)

main35141-0R010i201301-201411

*325

main35141-0R011i201411-201511

*325

main35141-33141i201707

*451,(J)

main35141-73010i201301-201405

*335

main35141-73011i201511-201811

*335

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3i201301-201511

*335

main90341-A0001×3i201511-201709

*325

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3i201511-201811

*335

main90341-A0005×3i201511-201709

*325

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×3i201511-201709

*325

main90301-06196×3i201511-201811

*335

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4i201511-201811

*335

main90301-10189×4i201707

*451

main90301-A0016×4i201511-201709

*325

35104VHOSE (FOR BREATHER PLUG)

main35121-33051i201707

*451

main35121-73010i201301-201312

main35121-73011i201312-201511

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5i201301-201511

35104XRING, O (FOR BREATHER PLUG)

main90301-06021i201511

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3i201511

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034i201511

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008i201301-201511

*335

main90430-A0002i201301-201511

*325

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-06020i201707

*451

main35106-0R010i201511-201709

*325

main35106-73010i201301-201511

*335

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496×2i201511-201709

*325,NO.2

main90119-06173×2i201511-201811

*335,NO.1; *335,NO.2

main90119-A0298×17i201511-201709

*325,NO.1

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007i201301-201511

*335

main90253-A0012i201411-201511

*325

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3i201511-201811

*8-1.25PX45-22,*335,NO.1

main90105-A0110×3i201707

*8-1.25PX45-22,*451,NO.1

main90105-A0111×17i201707

*8-1.25PX45-22,*451,NO.2

main91551-10845×17i201301-201511

*8-1.25PX45-22,*335,NO.2

35123ASKIRT, TRANSMISSION BREATHER

main35123-21010i201301-201511

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-73010i201301-201511

35145CGASKET, TRANSAXLE CASE

main35145-07010×3i201301-201511

*325

main35145-33010×3i201511-201811

*335

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010i201511

35163APLATE, TRANSAXLE REAR COVER

main35163-07010i201707

*451,(L)

main35163-33010i201707

*451,(J)

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90080-14046×2i201707

*451,(L)

main90148-60055×2i201707

*451,(J)

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010i201511

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-73010i201511

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×4i201402-201511

*325

main35394-30011×4i201402-201511

*335

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

90105A0228

main90105-A0228

90119A0127

main90119-A0127

9094901C99

main90949-01C99

9155180816

main91551-80816

41 parts on this diagram · 1 diagram in section
