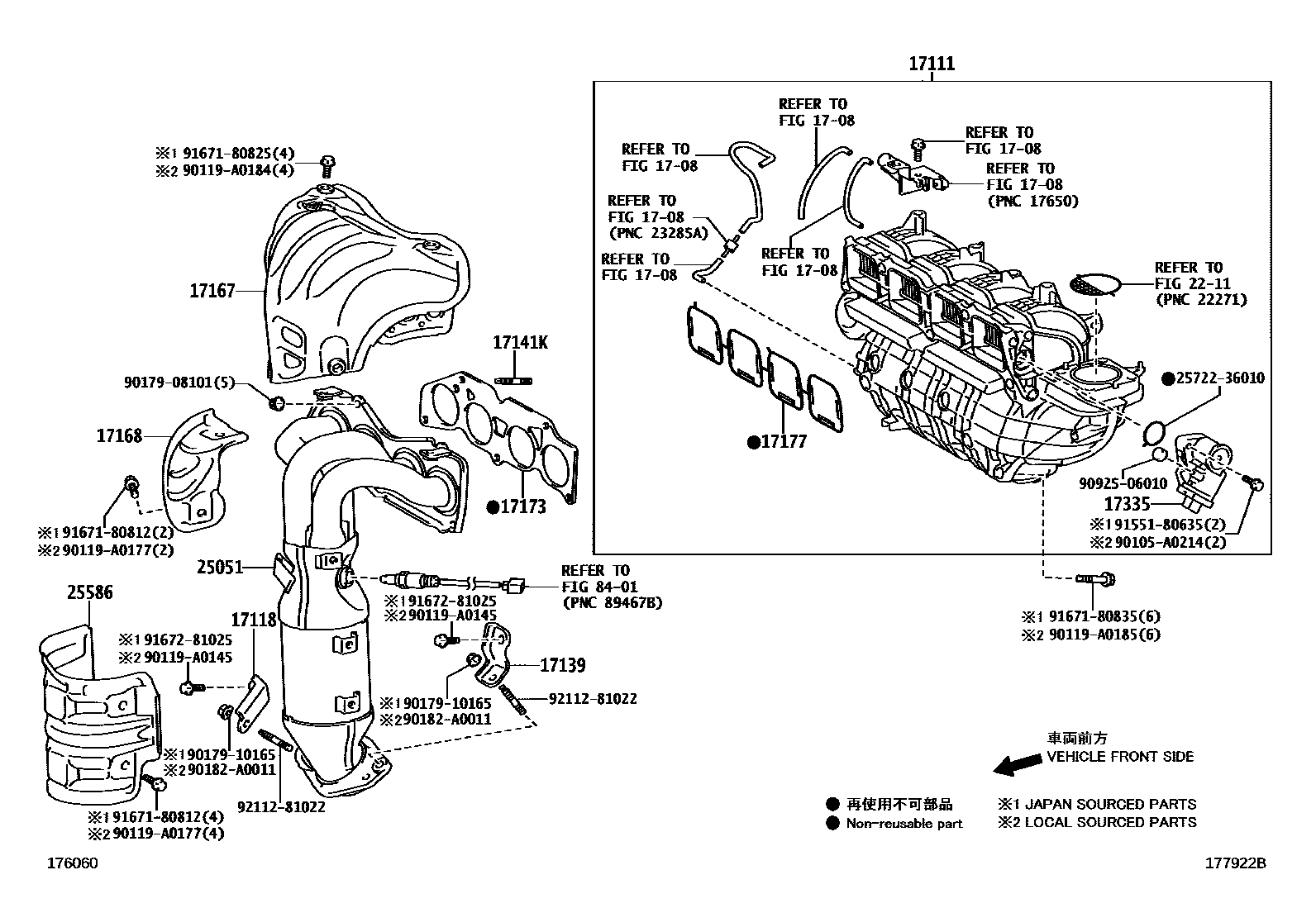

MANIFOLD

1708

17111MANIFOLD, INTAKE

main17120-0V010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*364 OR *390

sub17120-36011

main17120-36010i2ARFE..ASA4#201301-201610

*265

sub17120-36011

main17120-36011i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201611-201709

*265

17118STAY, MANIFOLD

main17118-0V010i2ARFE..ASA4#201301-201709

(L),*364 OR *390

main17118-36010i2ARFE..ASA4#201301-201709

*265,(J),*364 OR *390

17139STAY, MANIFOLD, NO.2

main17139-0V040i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

(L),*364 OR *390

main17139-36010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*265,(J),*364 OR *390

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*265

main90126-A0007i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*364 OR *390

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0V030i2ARFE..ASA4#201301-201709

(L),*364 OR *390

main17167-36011i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265,(J),*364 OR *390

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0V010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

(L),*364 OR *390

main17168-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265,(J),*364 OR *390

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main17173-36020i2ARFE..ASA4#201301-201709

*265

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main17171-36010i2ARFE..ASA4#201301-201610

*265

main17171-36011i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201611-201709

*265

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-0V010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*364 OR *390

main17335-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0V110i2ARFE..ASA4#201301-201709

(L),*364 OR *390

main25051-36150i2ARFE..ASA4#201301-201709

*265,(J),*364 OR *390

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0V010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

(L),*364 OR *390

main25586-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265,(J),*364 OR *390

8401

2572236010GASKET, ELECTRIC AIR CONTROL VALVE

main25722-36010

90105A0214

main90105-A0214

90119A0145

main90119-A0145

90119A0177

main90119-A0177

90119A0184

main90119-A0184

90119A0185

main90119-A0185

9017908101

main90179-08101

9017910165

main90179-10165

90182A0011

main90182-A0011

9092506010

main90925-06010

9155180635

main91551-80635

9167180812

main91671-80812

9167180825

main91671-80825

9167180835

main91671-80835

9167281025

main91672-81025

9211281022

main92112-81022

30 parts on this diagram · 1 diagram in section
