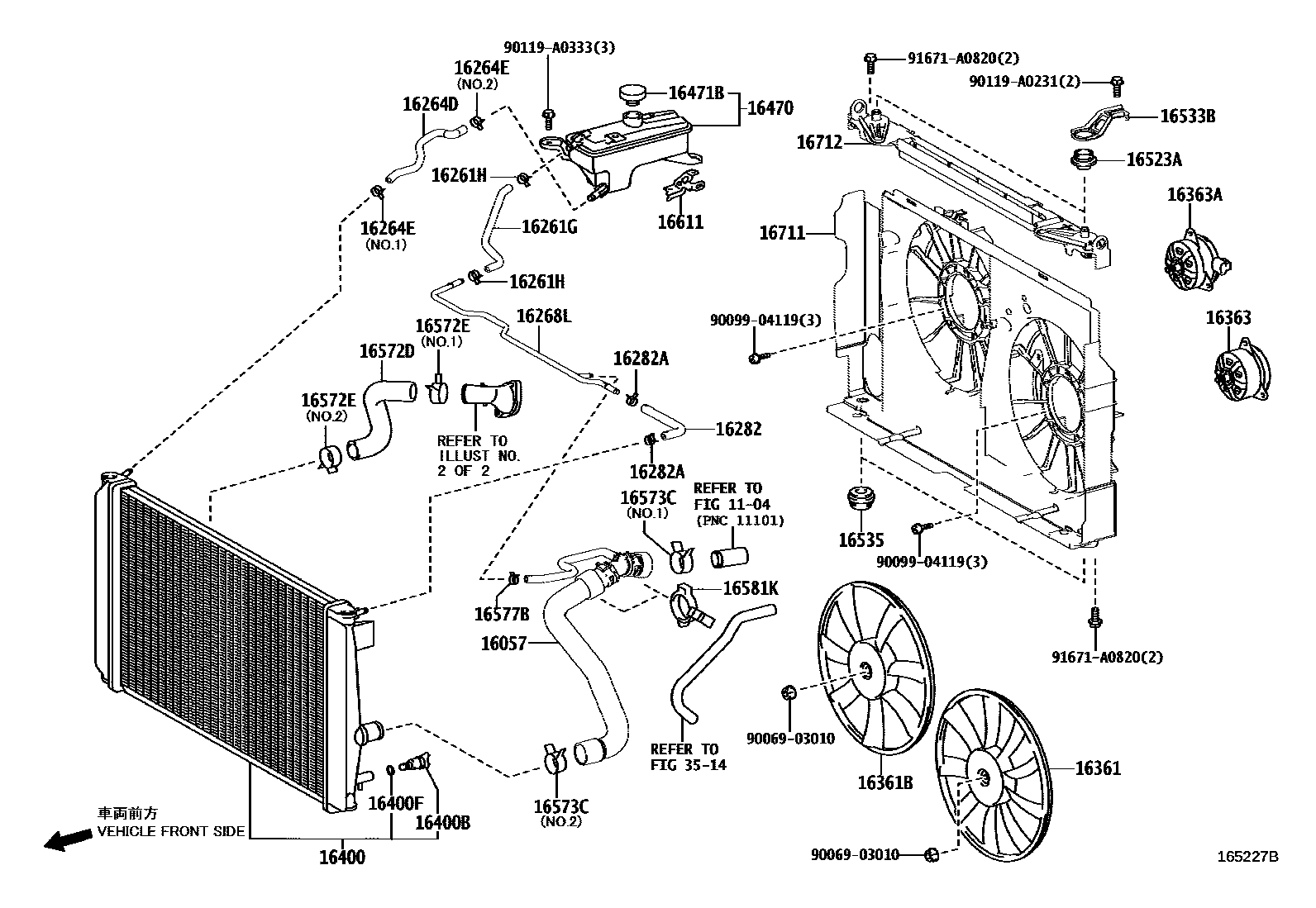

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16057HOSE SUB-ASSY, RADIATOR
16261HOSE, WATER BY-PASS
*364 OR *390
*265
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
*364 OR *390
*265
16264DHOSE, WATER BY-PASS, NO.2
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
16268PIPE, WATER BY-PASS, NO.1
(L),*364 OR *390
*265,(J),*364 OR *390
16268LPIPE, WATER BY-PASS
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
16400BPLUG, RADIATOR DRAIN COCK
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
16400FPACKING(FOR RADIATOR DRAIN COCK)
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
16470TANK ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16533BSUPPORT, RADIATOR, NO.1
16535SUPPORT, RADIATOR, LOWER
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16581KCLAMP, SUB-RADIATOR HOSE, NO.1
16611BRACKET, RADIATOR RESERVE TANK
16712SHROUD, FAN, NO.2
3514OIL COOLER & TUBE (ATM)
9006903010
main90069-03010
9009904119
main90099-04119
90119A0231
main90119-A0231
90119A0333
main90119-A0333
91671A0820
main91671-A0820
38 parts on this diagram · 4 diagrams in section
