CAMSHAFT & VALVE

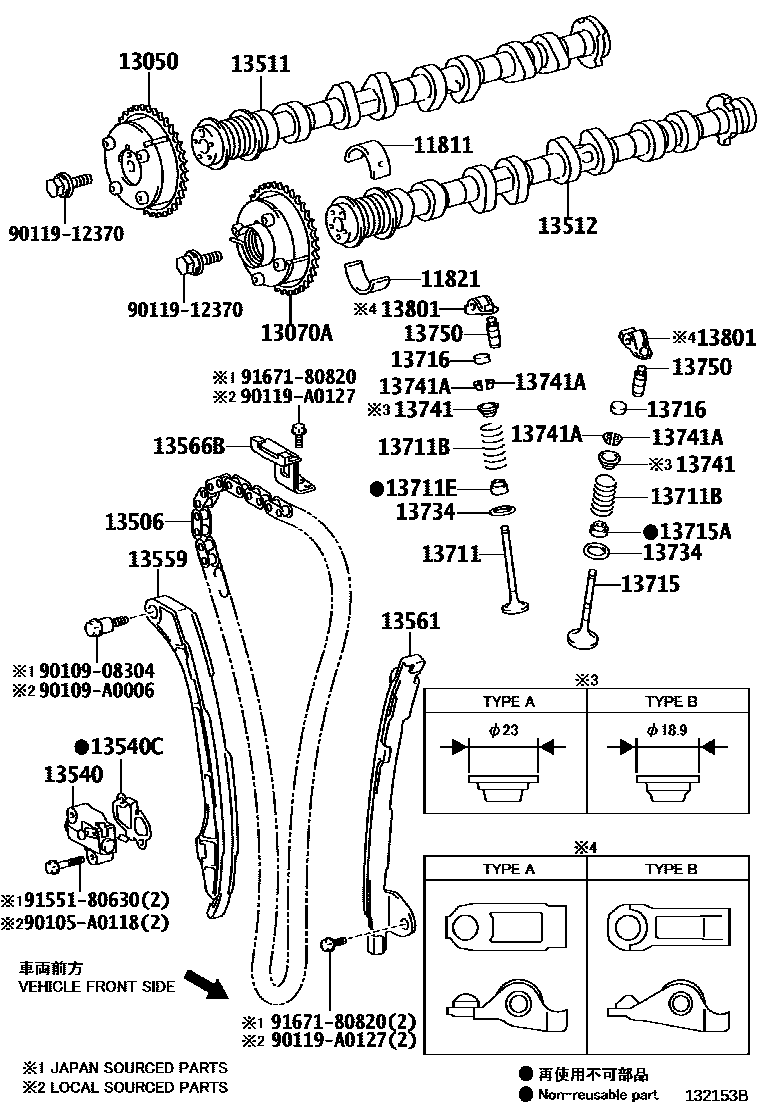

Parts diagram
11811BEARING, CAMSHAFT, NO.1
main11811-0V020i201511-201709
(L),*364 OR *390
main11811-36010i201511-201709
*265,(J),*364 OR *390
11821BEARING, CAMSHAFT, NO.2
main11821-0V020i201511-201709
(L),*364 OR *390
main11821-36010i201511-201709
*265,(J),*364 OR *390
13050GEAR ASSY, CAMSHAFT TIMING
main13050-0V040i201301-201511
*364 OR *390
main13050-36030i201301-201511
*265
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
main13070-0V040i201301-201511
*364 OR *390
main13070-36030i201511-201709
*265
13506CHAIN SUB-ASSY
main13506-0V010i201511
*364 OR *390
main13506-36010i201301-201407
*265
main13506-36030i201511-201709
*265
13511CAMSHAFT
main13501-0V010i201511-201710
(L),*364 OR *390
main13501-36050i201309-201511
(J),*364 OR *390
13512CAMSHAFT, NO.2
main13502-0V010i201309-201511
(L),*364 OR *390
main13502-36030i201301-201511
*265
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0V010i201301-201306
*364 OR *390
main13540-0V030i201511-201808
*364 OR *390
main13540-0V031i201809
*364 OR *390
main13540-36010i201301-201306
*265
main13540-36040i201306-201511
*265
main13540-36041i201807
*265
13540CGASKET(FOR CHAIN TENSIONER)
main13552-0V010i201301-201511
*364 OR *390
main13552-36010i201511-201709
*265
13559SLIPPER, CHAIN TENSIONER
main13559-0V010i201511-201709
*364 OR *390
main13559-36010i201511-201709
*265
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0V010i201301-201511
*364 OR *390
main13561-36010i201301-201511
*265
13566BGUIDE, TIMING CHAIN
main13566-0V011i201511-201709
*364 OR *390
main13566-36011i201511
*265
13711VALVE, INTAKE
main13711-0V010×8i201511-201709
(L),*364 OR *390
main13711-36060×8i201301-201511
*265
13711BSPRING, COMPRESSION(FOR INNER)
main90501-34016×16i201301-201505
*265PNC 13741=TYPE A
main90501-34017×16i201511-201709
(J),*364 OR *390
main90501-34022×16i201511
*265
main90501-A0090×16i201511
(L),*364 OR *390
13711ESEAL, INTAKE VALVE STEM OIL
main90080-31043×8i201511
*364 OR *390
main90913-02101×8i201511
*265
13715VALVE, EXHAUST
main13715-0V010×8i201306-201511
(L),*364 OR *390
main13715-36020×8i201511-201709
*265,(J),*364 OR *390
13715ASEAL, EXHAUST VALVE STEM OIL
main90080-31101×8i201511
*364 OR *390
main90913-02112×8i201301-201511
*265
13716CAP, VALVE STEM
main13716-75020×16i201511-201709
*265,*364 OR *390
13734SEAT, VALVE SPRING
main13734-0P010×16i201301-201511
*364 OR *390
main13734-62020×16i201301-201511
*265
13741RETAINER, VALVE SPRING
main13741-0V010×16i201301-201511
(L),*364 OR *390
main13741-20021×16i201511-201709
(J),*364 OR *390
main13741-36010×16i201511-201709
*265
13741ALOCK, VALVE SPRING RETAINER
main90913-03028×32i201301-201511
*265,(J),*364 OR *390
main90913-A3001×32i201511
(L),*364 OR *390
13750ADJUSTER ASSY, VALVE LASH
main13750-0P020×16i201511-201709
*364 OR *390
main13750-31030×16i201301-201505
*265PNC 13801=TYPE A
main13750-36020×16i201511-201709
*265
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-0P010×16i201511
*364 OR *390
main13801-23011×16i201301-201505
*265T/P A:REF.ILLUST
main13801-36020×16i201511-201709
*265
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9155180630
main91551-80630
9167180820
main91671-80820

30 parts on this diagram · 2 diagrams in section
