STANDARD TOOL

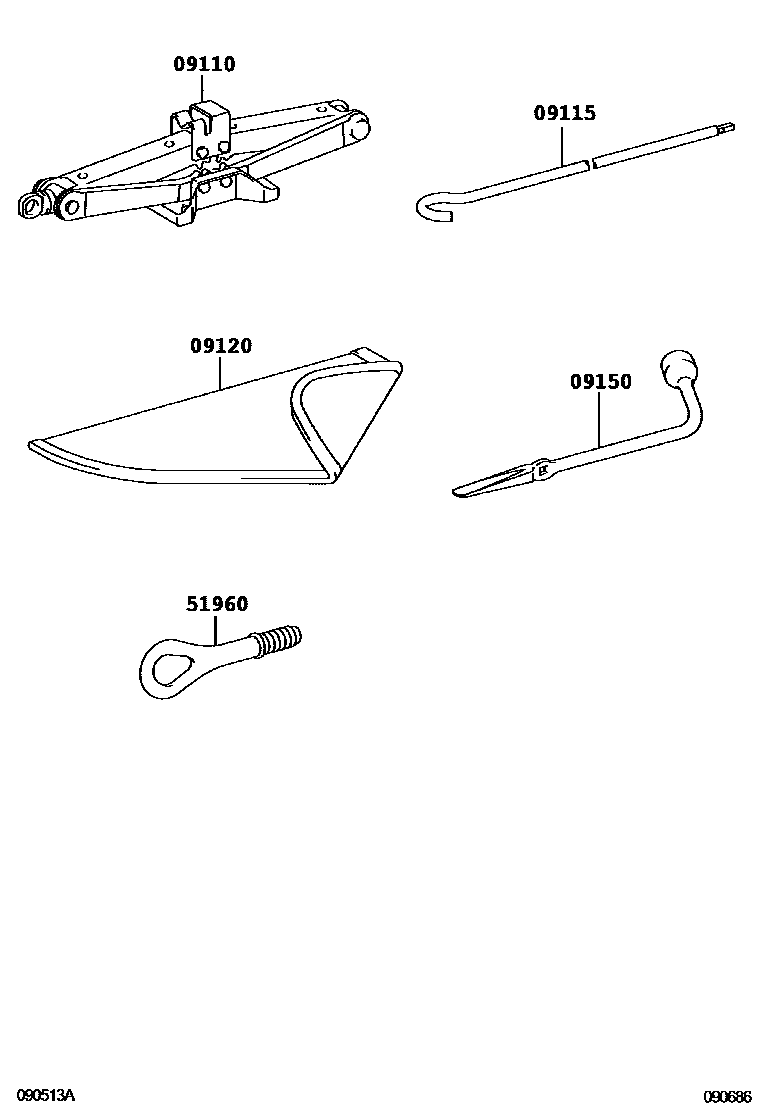

Parts diagram

09110JACK ASSY

main09111-0R030i201605-201709

main09111-0W140i201301-201511

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010i201301-201511

09120BAG, TOOL

main09120-0R030i201511

main09120-0R060i201709-201802

MEXICO SPEC; PUERTORICO SPEC

09150WRENCH, HUB NUT BOX

main09150-0R010i201301-201511

51960HOOK ASSY, FRONT

main51961-42040i201301-201511

5 parts on this diagram · 1 diagram in section
