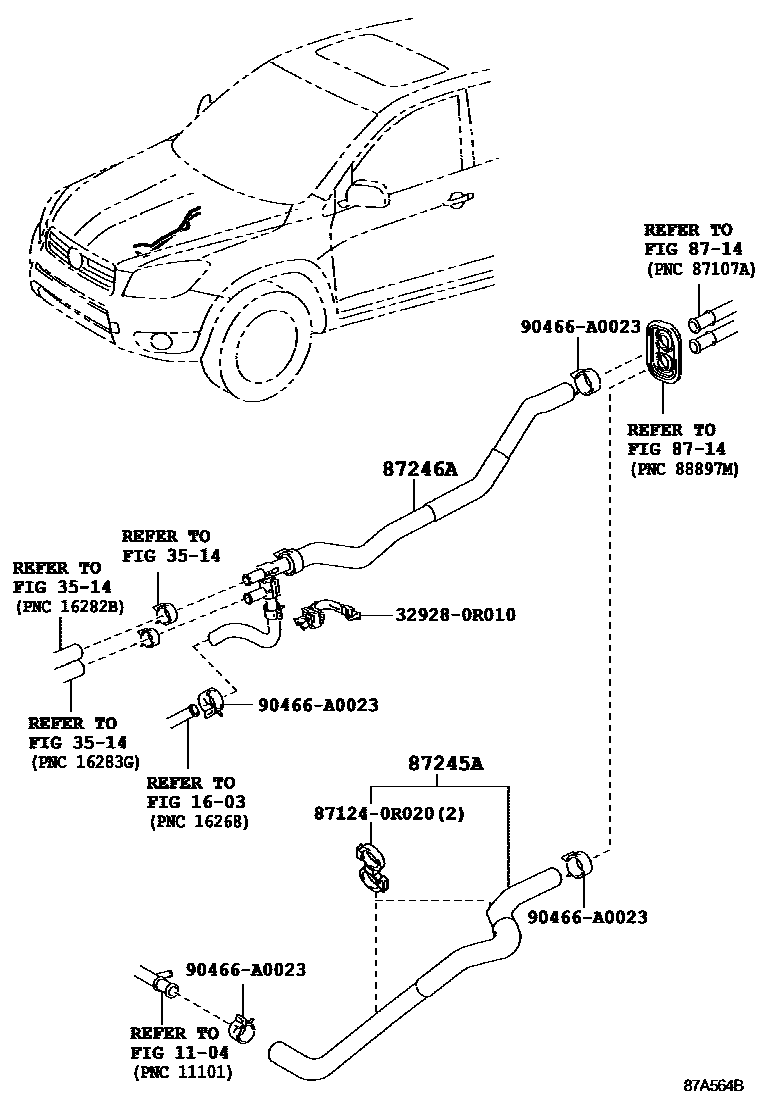

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-0R030iASA3#..NAP200811

main87245-0R010iGSA3#..NAP200811

87246AHOSE, HEATER WATER, OUTLET A

main87209-0R010iGSA3#..NAP200811-201301

main87209-0R040iASA3#..NAP200811-201212

329280R010CLAMP, FLEXIBLE HOSE, NO.1

main32928-0R010

871240R020CLAMP, HEATER

main87124-0R020

90466A0023

main90466-A0023

9 parts on this diagram · 2 diagrams in section
