HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL---MANUAL 0002 1HEATER CONTROL---AUTO 0003 1AIR DUCT 0004 1AIR DUCT---W(THIRD SEAT) 0005 1SENSOR

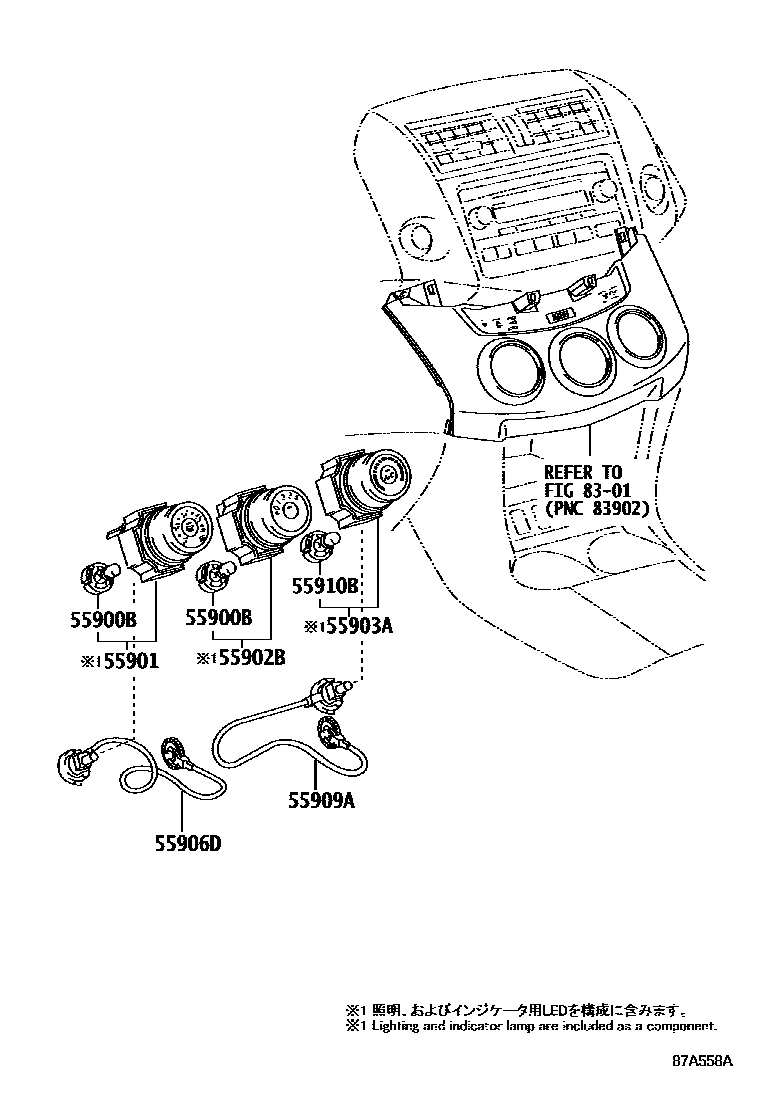

55900CONTROL ASSY, AIR CONDITIONER

main55900-0R020-B0iASA3#,GSA3#..NAP..LIMD200811-201111

GRAY,TRIM1#,4#

main55900-0R021-B0iASA3#,GSA3#..NAP..LIMD201112-201301

GRAY,TRIM1#,4#

55900BBULB, AIR CONDITIONER CONTROL

main90010-01122iASA3#,GSA3#..NAP..(SPO,STD)200811

14V 1.8W

55901BASE SUB-ASSY, HEATER CONTROL

main55901-0R010iASA3#,GSA3#..NAP..(SPO,STD)200811

55902BCONTROL SUB-ASSY, HEATER

main55902-0R010iASA3#,GSA3#..NAP..(SPO,STD)200811

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0R010iASA3#..NAP..(SPO,STD)200811-201112

main55903-0R030iASA3#..NAP..(SPO,STD)201112

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010iASA3#,GSA3#..NAP..(SPO,STD)200811-201205

main55906-26060iASA3#,GSA3#..NAP..(SPO,STD)201205-201301

(J)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iASA3#,GSA3#..NAP..(SPO,STD)200811-201205

main55909-26080iASA3#,GSA3#..NAP..(SPO,STD)201205-201301

(J)

55910BBULB, HEATER CONTROL

main90010-01122iASA3#,GSA3#..NAP..(SPO,STD)200811

8301METER

→ Go to FIG 83-01

9 parts on this diagram · 5 diagrams in section
