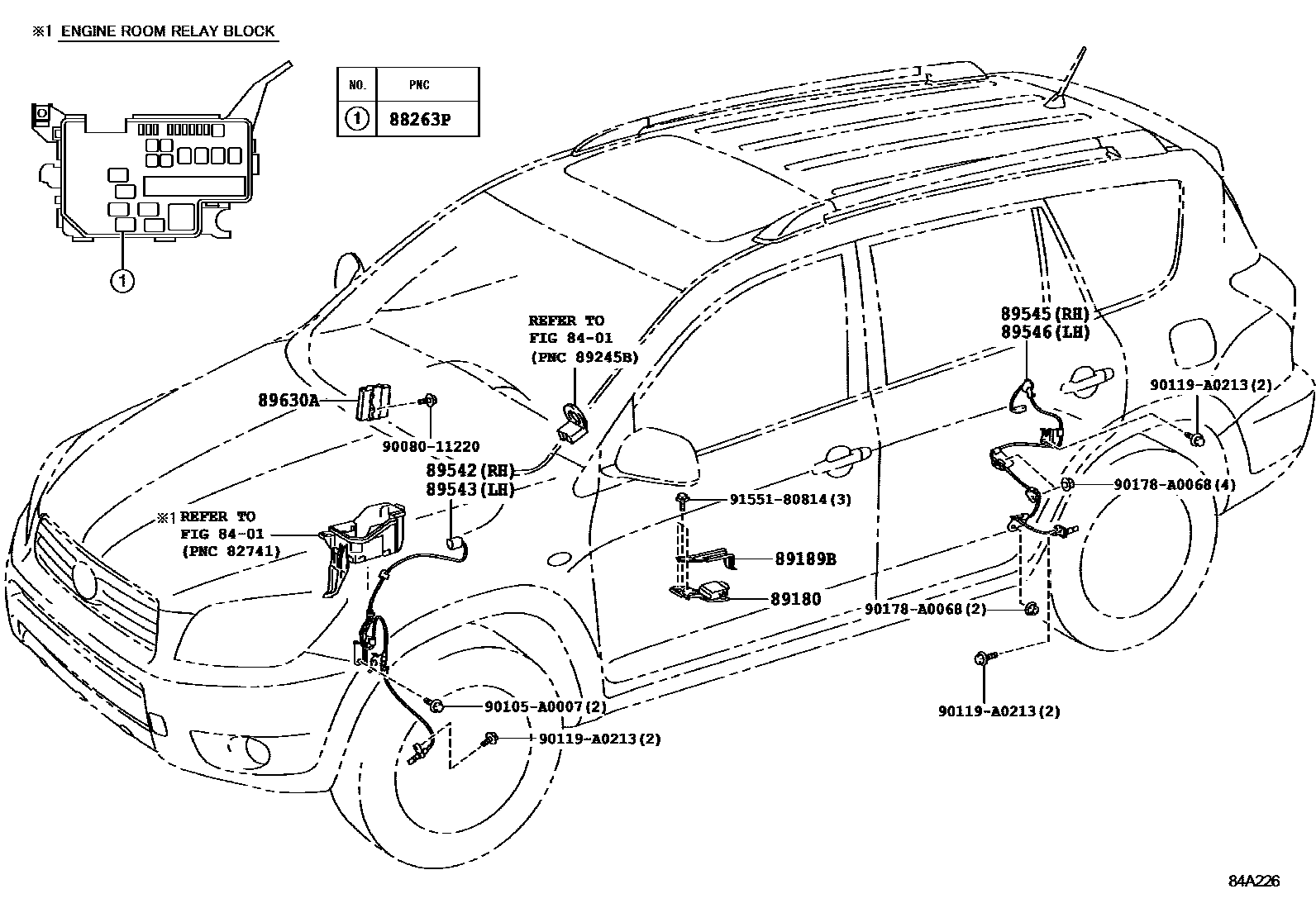

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263PRELAY, STOP LAMP CONTROL

main90084-98032iASA3#,GSA3#..NAP; ASA3#..NAP..(LIMD,STD)201001

THIRD SEAT-WITH

main90987-04004iASA3#,GSA3#..NAP; ASA3#..NAP..(LIMD,STD)200811-200912

THIRD SEAT-WITH

89180SENSOR ASSY, YAWRATE

main89180-42030iASA3#,GSA3#..NAP200811-201002

main89180-42040iASA3#,GSA3#..NAP201002

89189BBRACKET, YAWRATE SENSOR

main89189-0R010iASA3#,GSA3#..NAP200811

89542SENSOR, SPEED, FRONT RH

main89542-0R010iASA3#,GSA3#..NAP200811-201301

89543SENSOR, SPEED, FRONT LH

main89543-0R010iASA3#,GSA3#..NAP200811-201301

89545SENSOR, SPEED, REAR RH

main89545-42040iASA33,GSA33..NAP200811-201301

89546SENSOR, SPEED, REAR LH

main89546-42040iASA33,GSA33..NAP200811-201301

89630ACOMPUTER ASSY, 4WD

main89630-42040iASA33,GSA33..NAP200811

9008011220

main90080-11220

90105A0007

main90105-A0007

90119A0213

main90119-A0213

90178A0068

main90178-A0068

9155180814

main91551-80814

14 parts on this diagram · 2 diagrams in section
