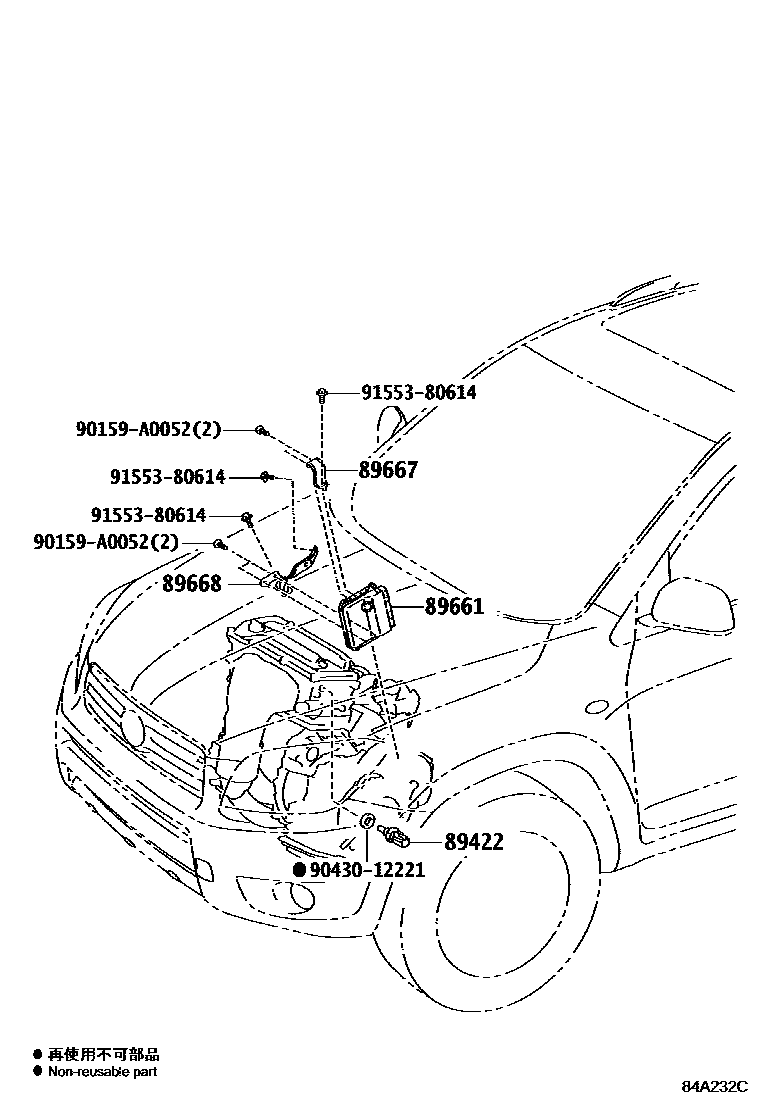

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200811-201301

89661COMPUTER, ENGINE CONTROL

main89661-0R091i200902-201009

main89661-0R100i200811-200901

main89661-0R101i200902-201009

main89661-0R130i200811-200909

main89661-0R131i200910-201009

main89661-0R140i200811-200909

main89661-0R141i200910-201009

main89661-0R210i201009-201109

main89661-0R211i201109-201112

main89661-0R220i201009-201109

main89661-0R221i201109-201112

main89661-0R230i201009-201010

main89661-0R231i201011-201012

main89661-0R232i201012-201108

main89661-0R233i201109-201112

main89661-0R240i201009-201010

main89661-0R241i201011-201012

main89661-0R242i201012-201108

main89661-0R243i201109-201112

main89661-0R270i201112

main89661-0R280i201112

main89661-0R290i201112

main89661-0R300i201112

main89661-0R110supersedes 89661-0R090i200811-200901

MEXICO SPEC

main89661-0R111supersedes 89661-0R090i200902-201102

MEXICO SPEC

main89661-0R112supersedes 89661-0R090i201103-201111

MEXICO SPEC

main89661-0R113supersedes 89661-0R090i201112

MEXICO SPEC

main89661-0R120i200811-200901

MEXICO SPEC

main89661-0R121i200902-201102

MEXICO SPEC

main89661-0R122i201103-201111

MEXICO SPEC

main89661-0R123i201112

MEXICO SPEC

main89661-0R150i200811-201111

MEXICO SPEC

main89661-0R160i200811-201111

MEXICO SPEC

main89661-0R310i201112

MEXICO SPEC

main89661-0R320i201112

MEXICO SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-42050i200811

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42050i200811

90159A0052

main90159-A0052

9043012221

main90430-12221

9155380614

main91553-80614

7 parts on this diagram · 2 diagrams in section
