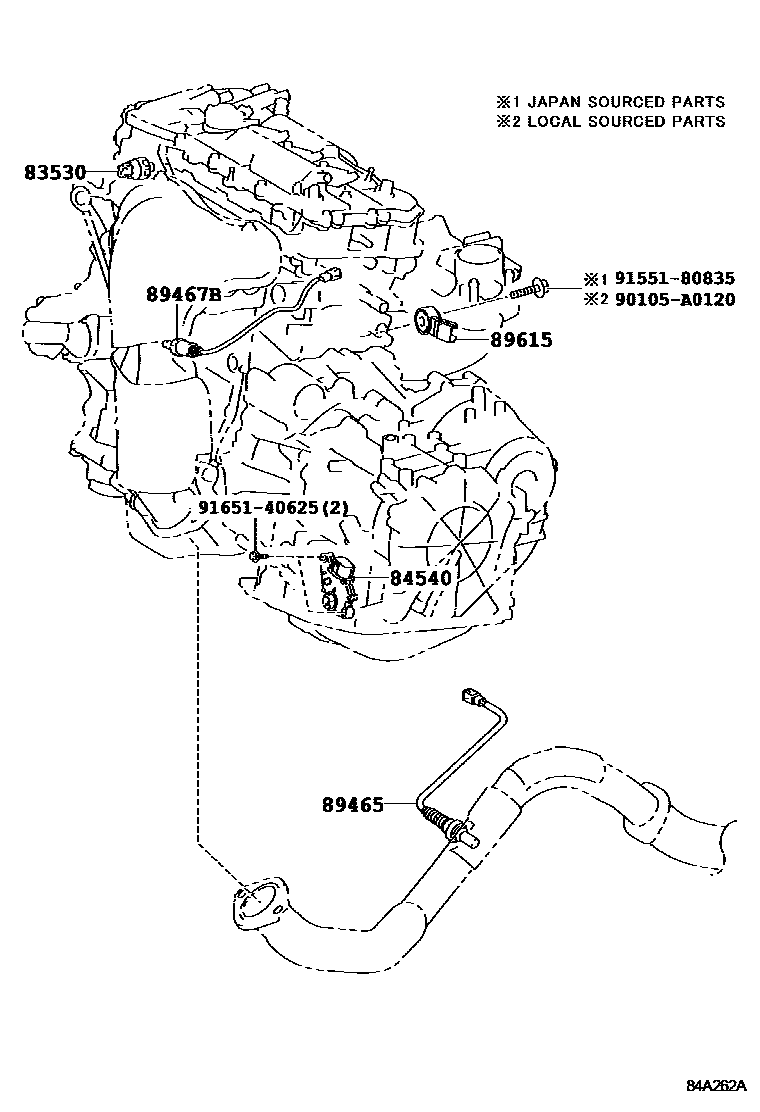

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASA3#,GSA3#..NAP200912

(L),DENSO

main83530-28020iASA3#,GSA3#..NAP200811

(J),DENSO

main83530-60020iASA3#,GSA3#..NAP200811

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-42010iASA3#,GSA3#..NAP200811-201301

89465SENSOR, OXYGEN

main89465-0R010iASA3#..NAP200811

sub89465-0R080

main89465-0R020iGSA3#..NAP200811

LH

main89465-0R030iGSA3#..NAP200811

RH

89467BSENSOR, AIR FUEL RATIO

main89467-0R010iGSA3#..NAP200811

LH

main89467-0R020iGSA3#..NAP200811

RH

main89467-42120iASA3#..NAP200811

89615SENSOR, KNOCK CONTROL

main89615-06010iGSA3#..NAP200912

(L)

main89615-20090iASA3#..NAP200811-201011

main89615-20090iGSA3#..NAP200912

(J)

90105A0120

main90105-A0120

9155180835

main91551-80835

9165140625

main91651-40625

8 parts on this diagram · 9 diagrams in section
