E
EPC Data

SEAT & SEAT TRACK

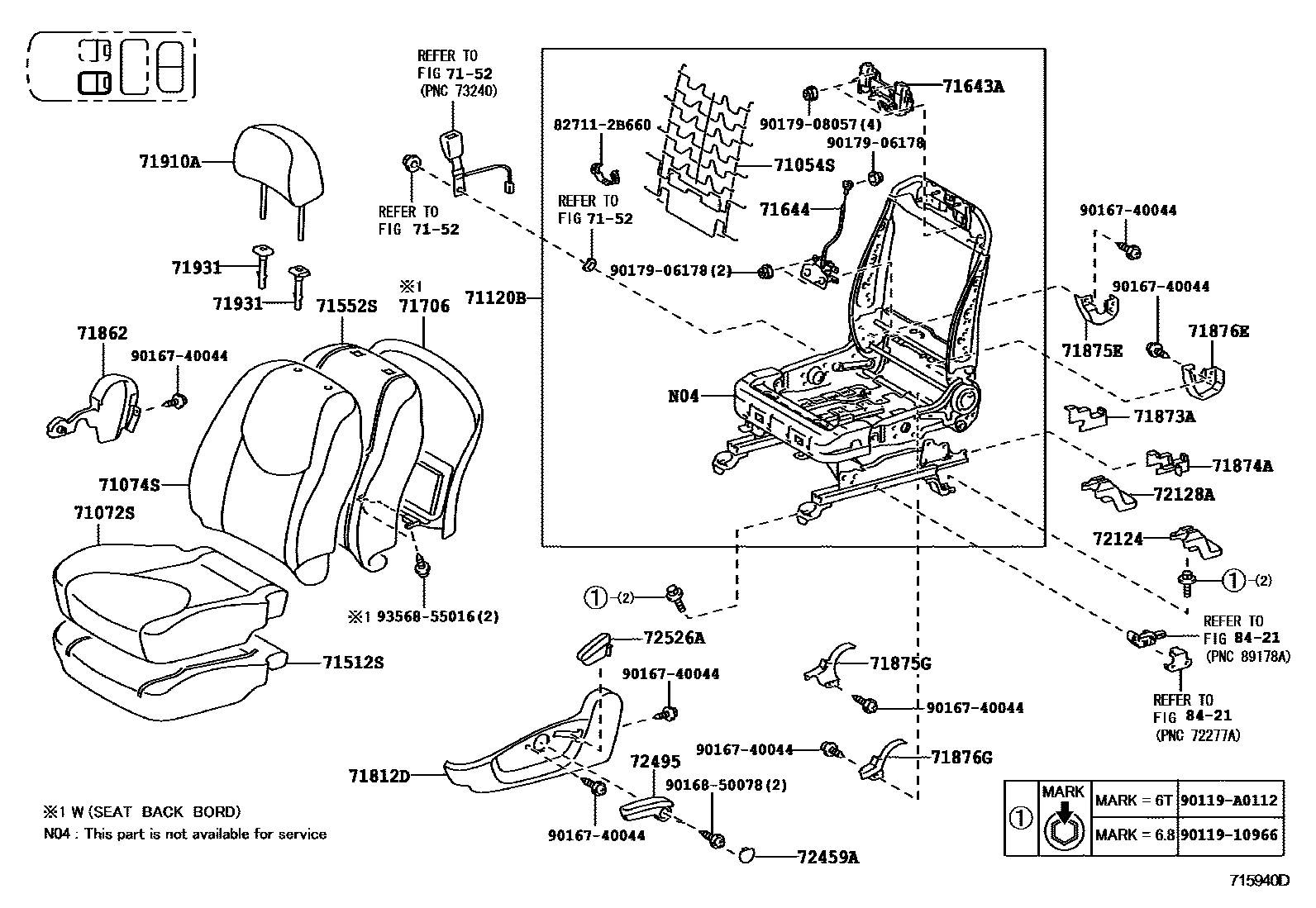

Parts diagram
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-02160i200811
main71053-02170i200811
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0R030-B0i200811-201009
GRAY,TRIM1#; GRAY,TRIM10; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM10
main71072-0R030-B4i200811-201009
DK GRAY,TRIM13; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),DK GRAY,TRIM13
main71072-0R030-E0i200811-201009
SAND BEIGE,TRIM4#; SAND BEIGE,TRIM40; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM40
main71072-0R020-B1supersedes 71072-0R033-B2i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM10; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM10
main71072-0R020-E0i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM40; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM40
main71072-0R023-B5supersedes 71072-0R033-B2i201009-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71072-0R023-E2supersedes 71072-0R033-E2i201009-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71072-0R033-B2supersedes 71072-0R013-B0i201009-201301
GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),GRAY,TRIM1#
main71072-0R033-E2supersedes 71072-0R013-E0i201009-201301
SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),SAND BEIGE,TRIM4#
main71072-0R040-B0supersedes 71072-0R033-B2i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71072-0R040-B1i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK GRAY,TRIM1#
main71072-0R040-E0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0R030-B0i200811-200909
DK GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK GRAY,TRIM1#
main71073-0R030-B1i200811-200909
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#
main71073-0R030-E0i200811-200909
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71074-0R010-B0supersedes 71073-0R010-B0i201009-201101
GRAY,TRIM1#
main71074-0R010-E0supersedes 71073-0R010-E0i201009-201101
SAND BEIGE,TRIM4#
main71074-0R033-B4i201009-201101
DK.GRAY,TRIM1#
main71074-0R033-B5i201009-201101
GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),GRAY,TRIM1#
main71074-0R033-E2i201009-201101
SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),SAND BEIGE,TRIM4#
main71073-0R010-B0supersedes 71074-0R010-B0i200811-201101
SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#
main71073-0R010-E0supersedes 71074-0R010-E0i200811-201101
SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71073-0R013-B0supersedes 71074-0R010-B0i201102-201301
SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#
main71073-0R013-E0supersedes 71074-0R010-E0i201102-201301
SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71073-0R033-B4i201009-201301
SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#
main71073-0R033-B5i201009-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#
main71073-0R033-E2i201009-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71073-0R070-B0supersedes 71074-0R030-B1i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#
main71073-0R070-B1supersedes 71074-0R030-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK GRAY,TRIM1#
main71073-0R070-E0i200811-201009
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71074-0R030-B0i200811-201009
DK GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),DK GRAY,TRIM1#
main71074-0R030-B1i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#; GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71074-0R030-E0i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71074-0R036-B5supersedes 71074-0R013-B0i201102-201301
GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),GRAY,TRIM1#
main71074-0R036-E2supersedes 71074-0R013-E0i201102-201301
SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),SAND BEIGE,TRIM4#
main71074-0R040-B0i201009-201101
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71074-0R040-B1i200811-201009
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),DK GRAY,TRIM1#
main71074-0R040-E0supersedes 71074-0R030-E0i200811-201101
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71074-0R043-B0supersedes 71074-0R036-B5i201102-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71074-0R043-B1supersedes 71074-0R036-B4i201102-201301
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71074-0R043-E0supersedes 71074-0R036-E2i201102-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-0R010i200811-201009
main71120-0R050i200811-201009
main71120-0R030i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0R010i200811
main71512-0R040i200811
main71052-0R010i200811
SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
main71512-0R020i200811
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
7152SEAT BELT
→ Go to FIG 71-52
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0R010i200811-201009
main71551-0R030i200811-201009
main71552-0R010i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)
71643AUNIT, ACTIVE HEADREST, UPR
main71643-04010×2i200811
71644UNIT, ACTIVE HEADREST, LWR
main71644-04010×2i200811
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71771-0R010-B0i200811-201301
DK.GRAY,TRIM1#
main71771-0R010-B1i200811-201301
GRAY,TRIM1#
main71771-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0R010-B1i200811-201301
GRAY,TRIM1#
main71812-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
main71812-0R020-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71812-0R020-B1i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71812-0R020-E0i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0R010-B1i200811-201301
GRAY,TRIM1#
main71862-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
main71862-0R020-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71862-0R020-B1i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71862-0R020-E0i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0R010i200811
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-0R010i200811
main71873-06080i200811
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0R010i200811
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0R010i200811
main71874-06090i200811
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-AA060i200811
main71814-0E020i200811-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06350-B1i200811-201301
GRAY,TRIM1#
main71875-06350-E1i200811-201301
SAND BEIGE,TRIM4#
main71875-0E020-B2supersedes 71875-06350-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71875-0E020-B6i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71875-0E020-E2i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-AA060i200811
main71813-0E020i200811
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY); SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06380-B1i200811-201301
GRAY,TRIM1#
main71876-06380-E1i200811-201301
SAND BEIGE,TRIM4#
main71876-AA090-B1supersedes 71876-06380-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71876-AA090-B6i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71876-AA090-E2i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0R010-B0×2i200811-200909
GRAY,TRIM1#
main71910-0R010-E0×2i200811-200909
SAND BEIGE,TRIM4#
main71910-0R011-B0×2i200909-201301
GRAY,TRIM1#
main71910-0R011-E0×2i200909-201301
SAND BEIGE,TRIM4#
main71910-0R021×2i200909-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE); SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)
main71910-0R022-B4×2i201009-201301
GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),GRAY,TRIM1#
main71910-0R022-B5×2i201009-201301
DK.GRAY,TRIM1#
main71910-0R022-E2×2i201009-201301
SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD),SAND BEIGE,TRIM4#
main71910-0R020×2i201008-201009
US BASE PLUS PACKAGE&SEAT COVER MATERIAL-FABRIC(BLOCKS),W(FRONT SEAT BACK BOARD)
main71910-0R020-B0×2i200909-201009
SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71910-0R020-B1×2i200909-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71910-0R020-E0×2i200909-201009
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71910-0R030-B0×2supersedes 71910-0R020-B1i200811-200909
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71910-0R030-B1×2i200811-200909
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-0R030-E0×2i200811-200909
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71910-0R031-B0×2i200909-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71910-0R031-B1×2i200909-201301
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-0R031-E0×2i200909-201301
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B0×2i200811-201301
W(LOCK),DK.GRAY,TRIM1#
main71930-44020-B2×2i200811-201301
W(LOCK),GRAY,TRIM1#
main71930-44020-E2×2i200811-201301
W(LOCK),SAND BEIGE,TRIM4#
main71931-47010-B2×2i200811-201301
W/O(LOCK),DK.GRAY,TRIM1#
main71931-47010-E8×2i200811-201301
W/O(LOCK),SAND BEIGE,TRIM4#
main71931-47010-P4×2i200811-201301
W/O(LOCK),GRAY,TRIM1#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-0R010-B1i200811-201301
GRAY,TRIM1#
main72123-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
main72124-0R010-B0supersedes 72123-0R010-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main72124-0R010-B1i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main72124-0R010-E0i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-0R010-B1i200811-201301
GRAY,TRIM1#
main72128-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
main72128-0R020-B0supersedes 72128-0R010-B0i200811-201301
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main72128-0R020-B1i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main72128-0R020-E0i200811-201301
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
72459ACAP, VERTICAL SEAT ADJUSTER KNOB
main72459-06010-B0i200811-201301
GRAY,TRIM1#
main72459-06010-B2i200811-201301
DK.GRAY,TRIM1#
main72459-06010-E1i200811-201301
SAND BEIGE,TRIM4#
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-0R010-B0i200811-201301
DK.GRAY,TRIM1#
main72495-0R010-B1i200811-201301
GRAY,TRIM1#
main72495-0R010-E0i200811-201301
SAND BEIGE,TRIM4#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B0i200811-201301
GRAY,TRIM1#
main72526-06020-B2i200811-201301
DK.GRAY,TRIM1#
main72526-06020-E1i200811-201301
SAND BEIGE,TRIM4#
8421AIR BAG
→ Go to FIG 84-21
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
9011910966
main90119-10966
90119A0112
main90119-A0112
9016740044
main90167-40044
9016850078
main90168-50078
9017906178
main90179-06178
9017908057
main90179-08057
9356855016
main93568-55016

36 parts on this diagram · 9 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
