61653EBRACKET, DECK SIDE TRIM

main61653-0R010i200811

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06155×2i200811

62111CBOARD, COWL SIDE TRIM, RH

main62111-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0R010i201009

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0R010i201009

62211GARNISH, FRONT PILLAR, RH

main62210-0R021-B0supersedes 62210-42030-B0i201009-201111

GRAY,TRIM1#

main62210-0R021-E0supersedes 62210-42030-E0i201009-201111

SAND BEIGE,TRIM4#

main62210-0R022-B0i201112-201301

GRAY,TRIM1#

main62210-0R022-E0i201112-201301

SAND BEIGE,TRIM4#

main62210-0R020-B0i200811-200912

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#

main62210-0R020-E0i200811-200912

SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#

main62210-42030-B0supersedes 62210-0R021-B0i200811-201301

SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#

main62210-42030-E0supersedes 62210-0R021-E0i200811-201301

SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main62217-42030×4supersedes 90467-10161i201009

main62217-20010×4i200811-200912

SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE)

main90467-10161×4supersedes 62217-42030i200811

SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)

62212GARNISH, FRONT PILLAR, LH

main62220-0R021-B0supersedes 62220-42030-B0i201009-201111

GRAY,TRIM1#

main62220-0R021-E0supersedes 62220-42030-E0i201009-201111

SAND BEIGE,TRIM4#

main62220-0R022-B0i201112-201301

GRAY,TRIM1#

main62220-0R022-E0i201112-201301

SAND BEIGE,TRIM4#

main62220-0R020-B0i200811-200912

GRAY,TRIM1#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#

main62220-0R020-E0i200811-200912

SAND BEIGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#

main62220-42030-B0supersedes 62220-0R021-B0i200811-201301

SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#

main62220-42030-E0supersedes 62220-0R021-E0i200811-201301

SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62411GARNISH, CENTER PILLAR, RH

main62410-0R010-B0i200811-201301

GRAY,TRIM1#

main62410-0R010-E0i200811-201301

SAND BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-0R010-B0i200811-201301

GRAY,TRIM1#

main62420-0R010-E0i200811-201301

SAND BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4i200811

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62423AHOOK, SIDE WINDOW GARNISH

main62423-0R010-B0×2i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0R010-B0i200811-201301

GRAY,TRIM1#

main62470-0R020-B0i200811-201009

THIRD SEAT-WITH&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#

main62470-0R020-E0i200811-201009

THIRD SEAT-WITH&SRS AIR BAG-W(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×14i200811

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0R010-B0i200811-201301

GRAY,TRIM1#

main62480-0R020-B0i200811-201301

THIRD SEAT-WITH&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),GRAY,TRIM1#; THIRD SEAT-WITH,GRAY,TRIM1#

main62480-0R020-E0i200811-201301

THIRD SEAT-WITH&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE),SAND BEIGE,TRIM4#; THIRD SEAT-WITH,SAND BEIGE,TRIM4#

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-0R010×2i200811

64714CCOVER, DECK SIDE TRIM, RH

main64714-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64715CCOVER, DECK SIDE TRIM, LH

main64715-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64716DCOVER, DECK TRIM, REAR

main64716-42010-B0×2i200811-201301

THIRD SEAT-WITH,DK.GRAY,TRIM1#,4#

64725HHOOK, QUARTER TRIM,

main64725-13010-B0×2i200811-201301

THIRD SEAT-WITH,DK.GRAY,TRIM1#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0R010-B0i200811-201112

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main64730-0R011-B0i201201-201203

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161×8i200811

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0R010-B0i201203-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main64740-0R011-B0i201201-201203

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64741CBOX, DECK SIDE TRIM, RH

main64741-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64742CBOX, DECK SIDE TRIM, LH

main64742-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0R010-B0i200811-201301

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

7152SEAT BELT

→ Go to FIG 71-52

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9008010080

main90080-10080

9008011699

main90080-11699

9008016073

main90080-16073

9011906869

main90119-06869

90168A0002

main90168-A0002

9046709206

main90467-09206

9046710167

main90467-10167

9356015012

main93560-15012

9356056014

main93560-56014

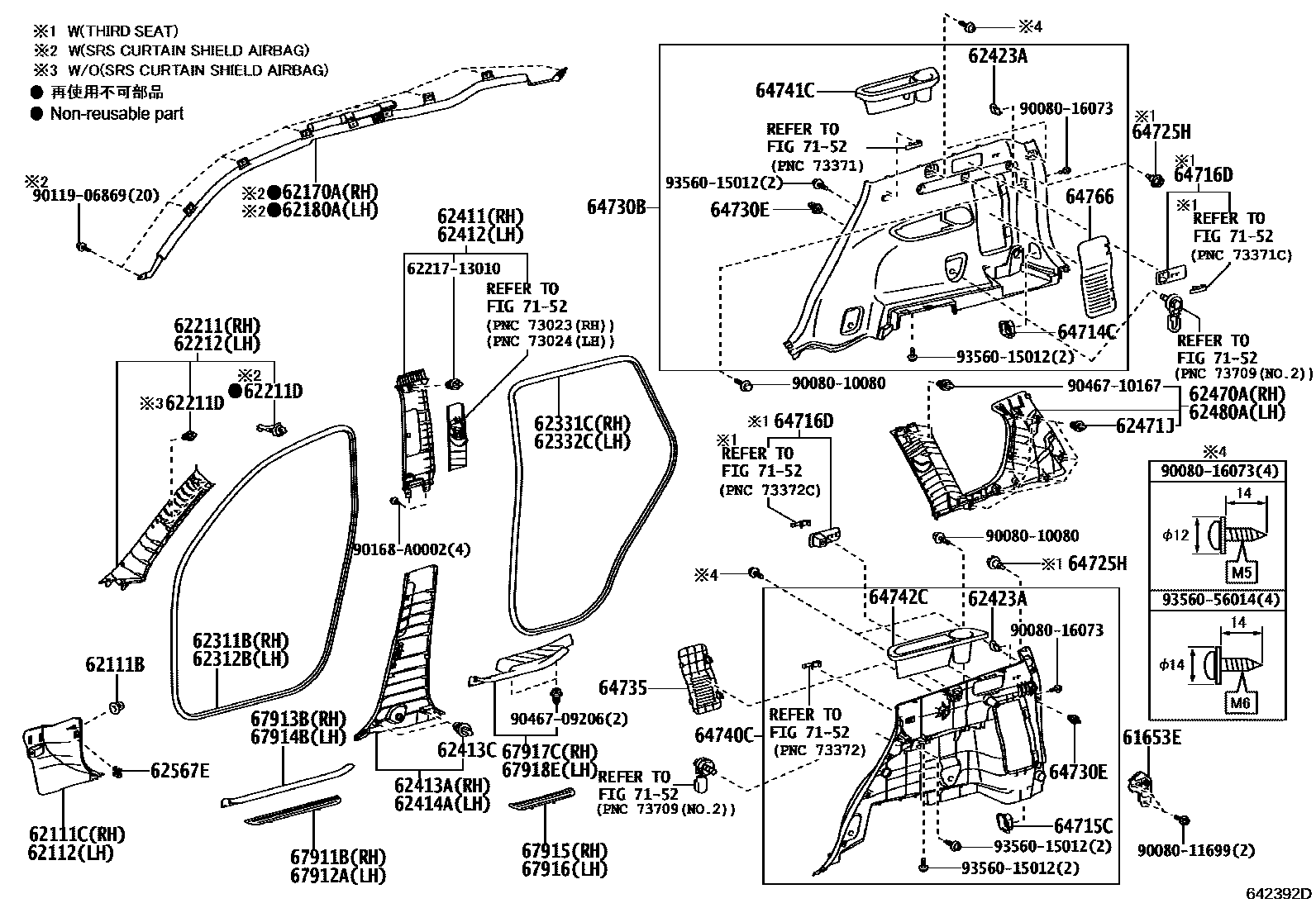

INSIDE TRIM BOARD
