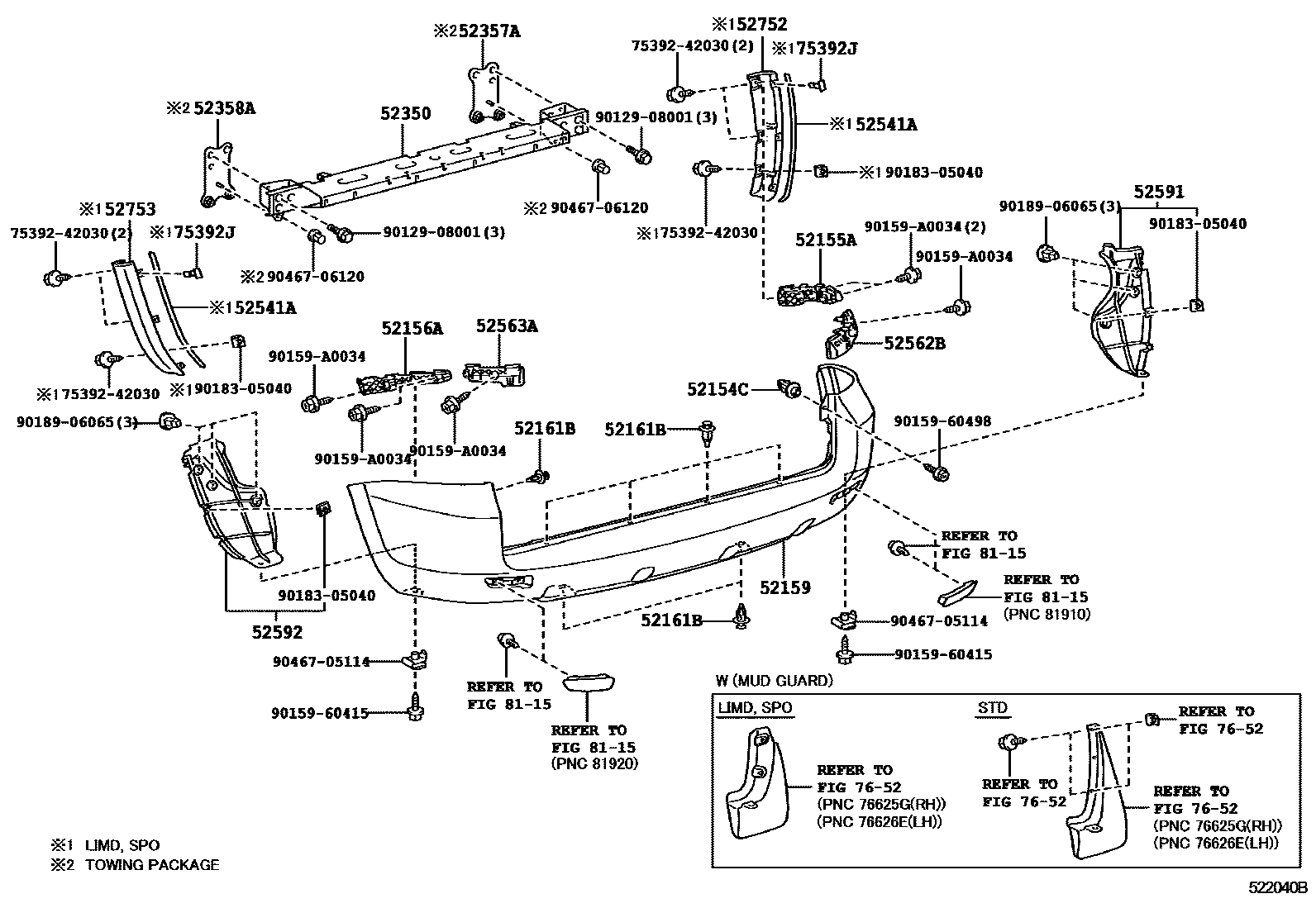

REAR BUMPER & BUMPER STAY

52154CSUPPORT, REAR BUMPER, NO.1

main52154-0R010iASA3#,GSA3#..NAP200811

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0R010iASA3#,GSA3#..NAP200811

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0R010iASA3#,GSA3#..NAP200811

52159COVER, REAR BUMPER

main52159-0R901iASA3#,GSA3#..NAP..STD200811-201301

PAINT REQ.

main52159-0R902iASA3#,GSA3#..NAP..(LIMD,SPO)200811-201301

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02020×7iASA3#,GSA3#..NAP200811

52350STEP ASSY, REAR BUMPER

main52350-0R020iASA3#,GSA3#..NAP200811

52357APLATE, BACK STEP, RH

main52357-0R010iGSA3#..NAP200811

WITH(TOWING PACKAGE)

52358APLATE, BACK STEP, LH

main52358-0R010iGSA3#..NAP200811

WITH(TOWING PACKAGE)

52541APROTECTOR, REAR BUMPER

main52541-0R010×2iASA3#,GSA3#..NAP..(LIMD,SPO)200811

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0R010iASA3#,GSA3#..NAP200811

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0R010iASA3#,GSA3#..NAP200811

52591SEAL, REAR BUMPER SIDE, RH

main52591-0R010iASA3#,GSA3#..NAP200811

52592SEAL, REAR BUMPER SIDE, LH

main52592-0R010iASA3#,GSA3#..NAP200811

52752MOULDING, REAR BUMPER SIDE, RH

main52752-0R901iASA3#,GSA3#..NAP..(LIMD,SPO)200811

52753MOULDING, REAR BUMPER SIDE, LH

main52753-0R901iASA3#,GSA3#..NAP..(LIMD,SPO)200811

75392JRETAINER, OUTSIDE MOULDING

main75392-0R010×10iASA3#,GSA3#..NAP..(LIMD,SPO)200811-201301

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8115REFLEX REFLECTOR

→ Go to FIG 81-15

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9012908001

main90129-08001

9015960415

main90159-60415

9015960498

main90159-60498

90159A0034

main90159-A0034

9018305040

main90183-05040

9018906065

main90189-06065

9046705114

main90467-05114

9046706120

main90467-06120

27 parts on this diagram · 1 diagram in section
