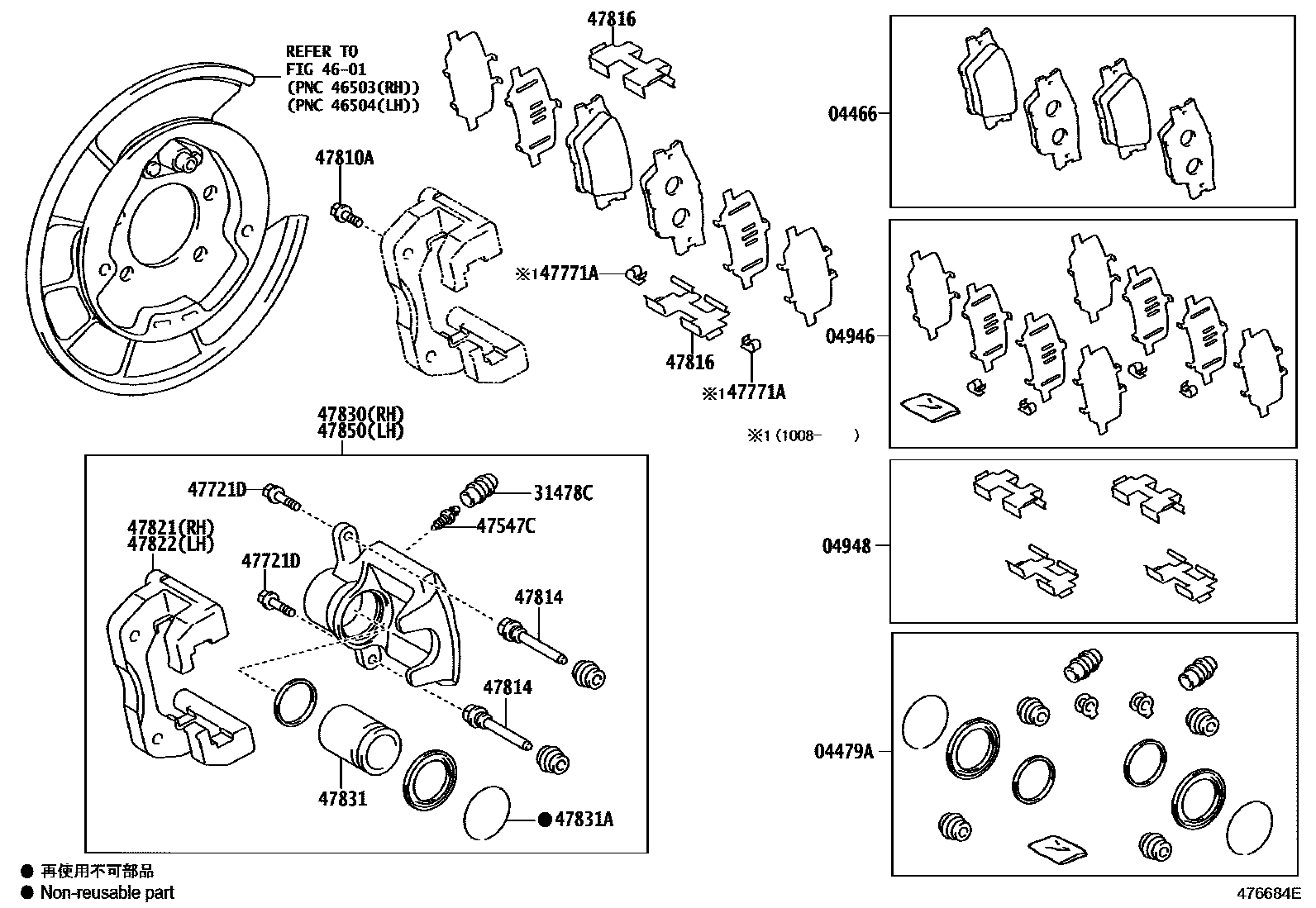

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

MARK ADVICS PS558

04479ACYLINDER KIT, DISC BRAKE, REAR

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

04948FITTING KIT, DISC BRAKE, REAR

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0R010×2i200811-201112

main31478-50020×2i201112

(J)

4601PARKING BRAKE & CABLE

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130×2i200811-201301

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604×4i200811-201301

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-06050×4i201008-201109

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-A0248×4i200811-201301

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06050×4i200811-201109

main47814-06120×2i201109-201301

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-0R010×4i200811-201112

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0R010i200811-201109

main47821-0R030i201109-201301

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0R010i200811-201109

main47822-0R030i201109-201301

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R010i200811-201109

main47830-0R011i201109-201112

main47830-0R030i201112-201301

47831PISTON, REAR DISC BRAKE

main47831-06050×2i200811-201301

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU502×2i200811-201112

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R010i200811-201109

main47850-0R011i201109-201112

main47850-0R030i201112-201301

18 parts on this diagram · 2 diagrams in section
