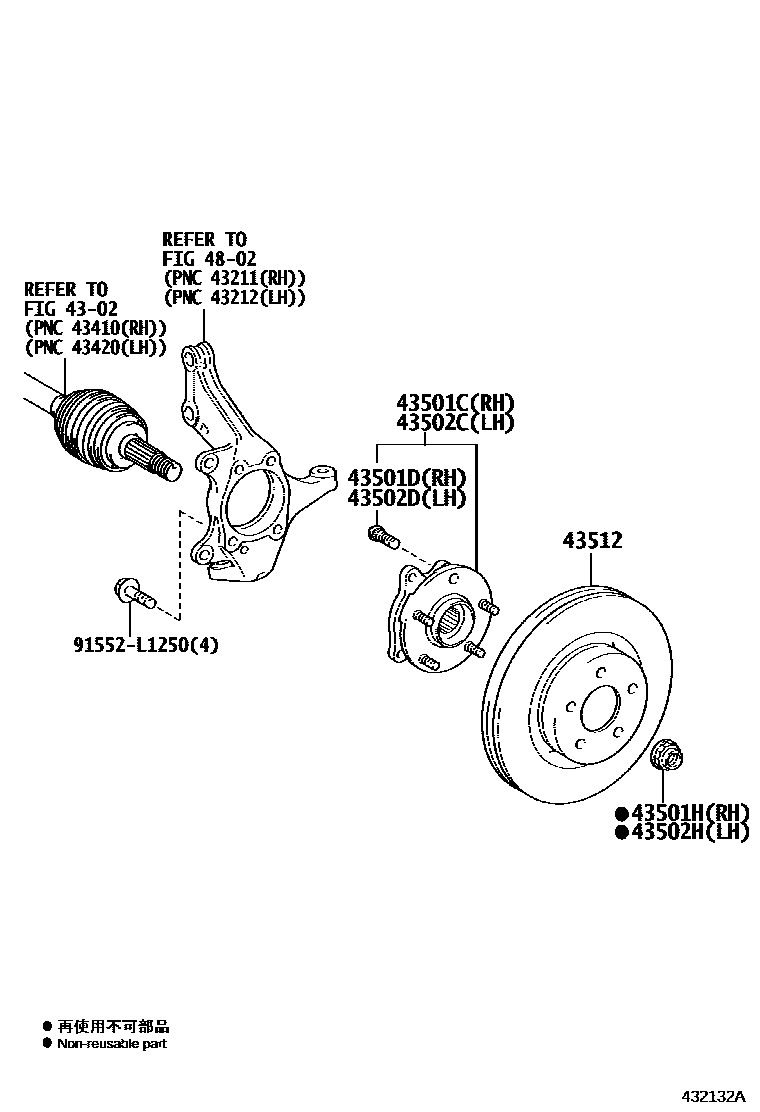

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R010iASA3#..NAP200811

main43550-0R020iGSA3#..NAP200811

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iASA3#,GSA3#..NAP200811

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASA3#,GSA3#..NAP200811

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R010iASA3#..NAP200811

main43550-0R020iGSA3#..NAP200811

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iASA3#,GSA3#..NAP200811

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASA3#,GSA3#..NAP200811

43512DISC, FRONT

main43512-0R010×2iASA3#..NAP200811-201301

main43512-0R020×2iASA3#..NAP..(LIMD,STD); GSA3#..NAP200811-201301

THIRD SEAT-WITH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
