TRANSFER ASSEMBLY & GASKET KIT

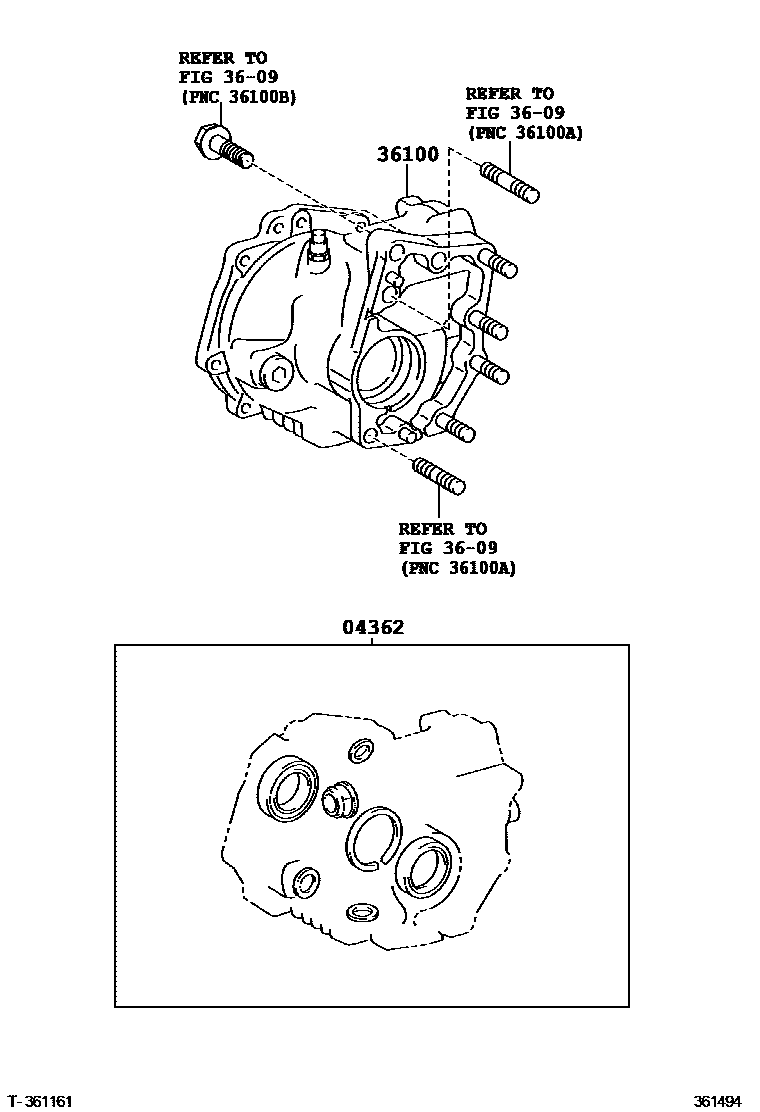

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-42020i200811

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36100TRANSFER ASSY

main36100-42091i200811-201301

main36100-42101i200811-201301

3 parts on this diagram · 1 diagram in section
