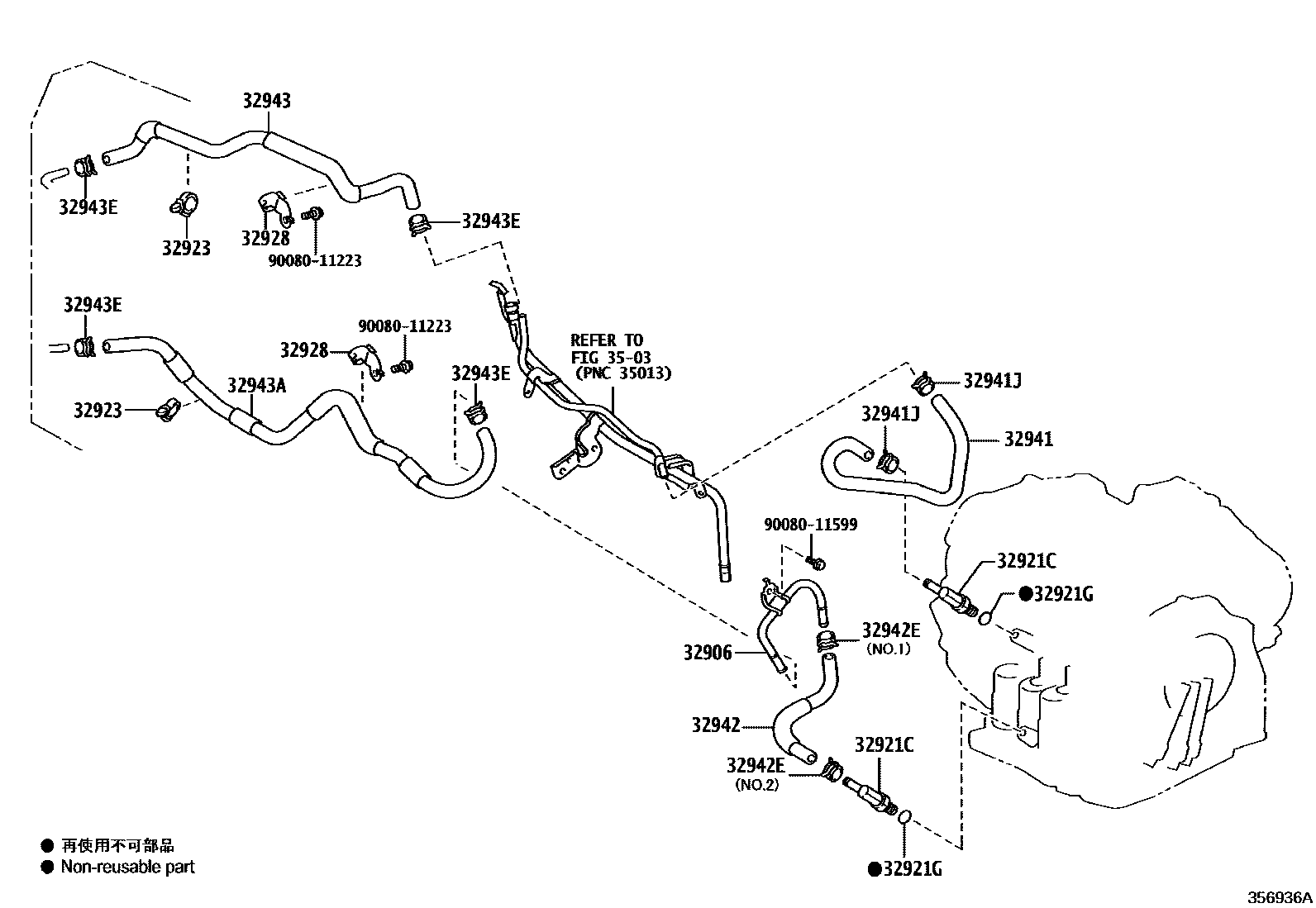

OIL COOLER & TUBE (ATM)

0001 1U151E,U151F 0002 1U140F,U241E

32906TUBE SUB-ASSY, OIL COOLER

main32907-42030iGSA3#..NAP200811

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iASA3#..NAP200811

NO.1

main90407-13009iASA3#..NAP; GSA3#..NAP200811

NO.2

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iASA3#,GSA3#..NAP200811

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main82711-51020×2iGSA3#..NAP200811

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-42010×2iGSA3#..NAP200811

32941HOSE, OIL COOLER INLET, NO.1

main32941-42030iGSA3#..NAP200811

main32941-42040iASA3#..NAP200811

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iGSA3#..NAP200811-201004

main90466-A0014×2iGSA3#..NAP201004

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-42020iGSA3#..NAP200811

main32942-42030iASA3#..NAP200811

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iGSA3#..NAP200902

NO.1

main90466-A0014iGSA3#..NAP201004

(L),NO.2

main90467-16022iGSA3#..NAP200811-200901

NO.1

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-42030iGSA3#..NAP200811

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-0R010iGSA3#..NAP200811

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iGSA3#..NAP200811-201004

main90466-A0014×4iGSA3#..NAP201004

(L)

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

9008011223

main90080-11223

9008011599

main90080-11599

15 parts on this diagram · 2 diagrams in section
