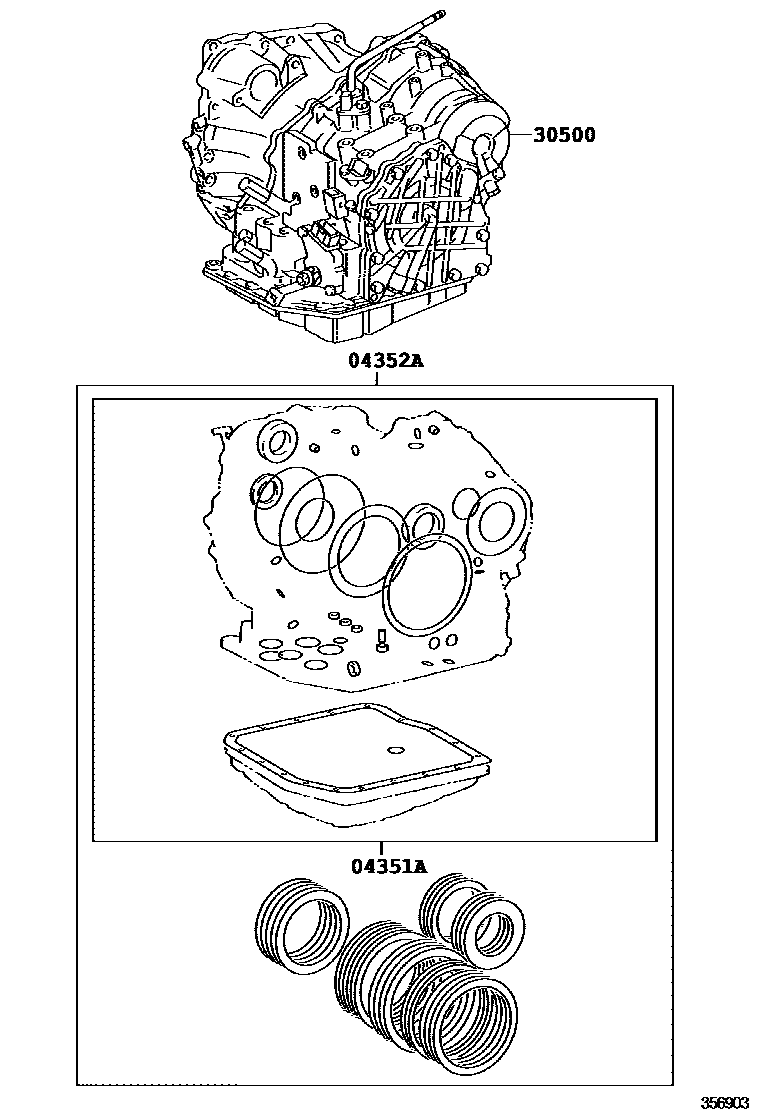

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U151E,U151F 0002 1U140F,U241E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12780iASA33..NAP200811-201002

main04351-33240iASA33..NAP201003-201301

main04351-42051iASA38..NAP200811-201301

main04351-42080iGSA33..NAP200811-200905

main04351-42130iGSA33..NAP200906-201301

main04351-48090iGSA38..NAP200811-201212

main04351-48091iGSA38..NAP201212-201301

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-12780iASA33..NAP200811-201002

main04352-33110iGSA38..NAP200811-200911

main04352-42061iASA38..NAP200811-201301

main04352-42081iASA33..NAP201003-201301

main04352-42100iGSA33..NAP200811-200905

main04352-42180iGSA33..NAP200906-201301

main04352-48160iGSA38..NAP200912-201212

main04352-48161iGSA38..NAP201212-201301

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12C90iASA33..NAP200811-200908

U140F

main30500-42191iGSA38..NAP200811

U151E

main30500-42201iGSA33..NAP200811-200907

U151F

main30500-42202iGSA33..NAP200907

U151F

main30500-42260iASA38..NAP200811

U241E

main30500-42330iASA33..NAP200908

U140F

3 parts on this diagram · 2 diagrams in section
