EXHAUST PIPE

0001 1 0002 1

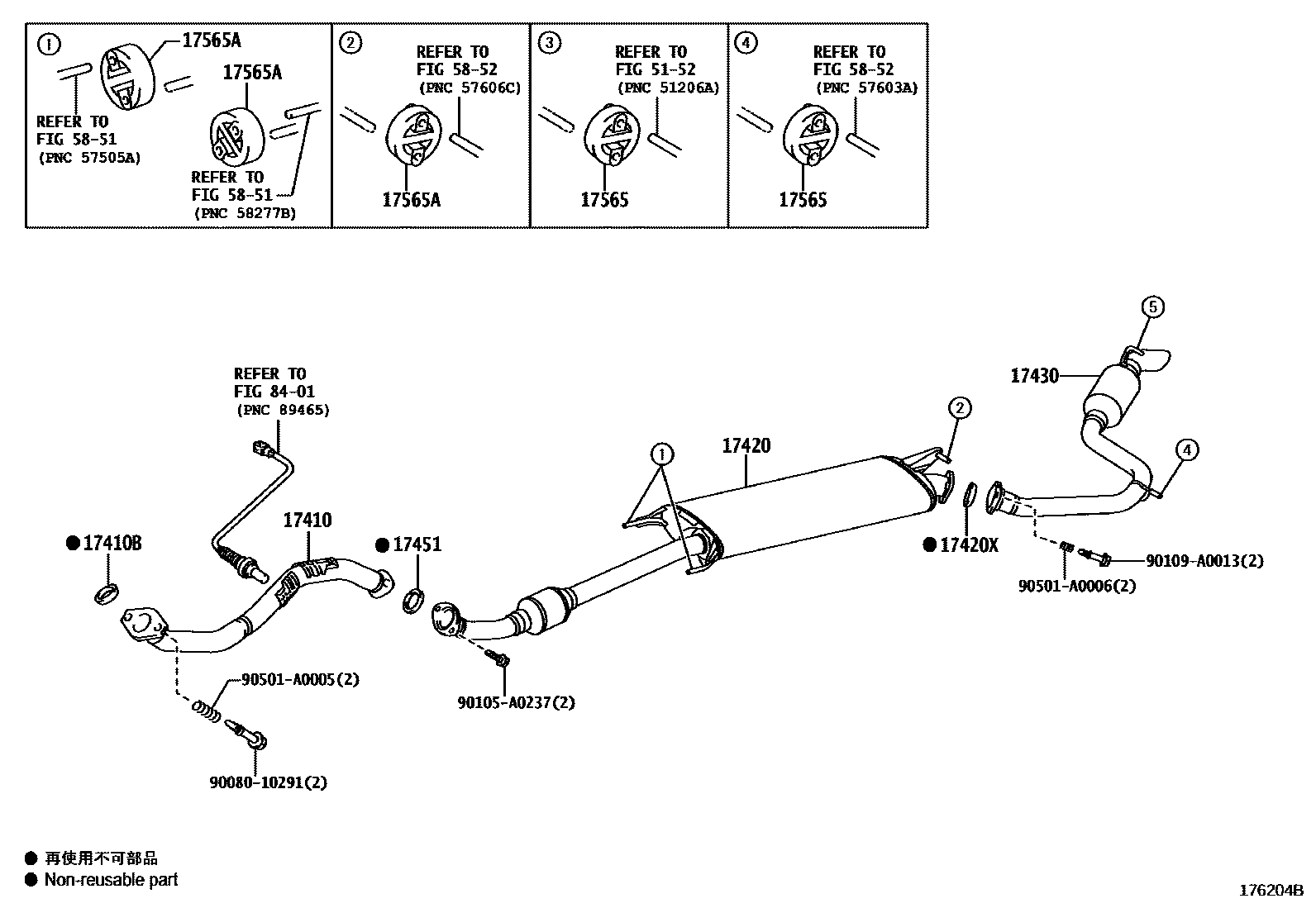

17410PIPE ASSY, EXHAUST, FRONT

main17410-0P240i2GRFE..GSA3#..NAP200811-201205

main17410-0P241i2GRFE..GSA3#..NAP201206

main17410-0V020i2ARFE..ASA3#..NAP200811-201205

main17410-0V021i2ARFE..ASA3#..NAP201206

17410BGASKET, EXHAUST PIPE

main17451-0D150i2ARFE..ASA3#..NAP200811

main90917-06089i2GRFE..GSA3#..NAP200811

17420PIPE ASSY, EXHAUST, CENTER

main17403-0P080i2GRFE..GSA3#..NAP200811-201205

main17403-0P081i2GRFE..GSA3#..NAP201206

main17420-0V070i2ARFE..ASA3#..NAP200811-201107

main17420-0V071i2ARFE..ASA3#..NAP201108-201205

main17420-0V072i2ARFE..ASA3#..NAP201206

main17420-0V020i2ARFE..ASA3#..NAP..USA200811-201107

MEXICO SPEC

main17420-0V021i2ARFE..ASA3#..NAP..USA201108-201205

MEXICO SPEC

main17420-0V022i2ARFE..ASA3#..NAP..USA201206

MEXICO SPEC

17420XGASKET, EXHAUST PIPE, CENTER

main17451-0P021i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811-201103

main17451-0P022i2ARFE,2GRFE..ASA3#,GSA3#..NAP201104

17430PIPE ASSY, EXHAUST, TAIL

main17430-0P190i2GRFE..GSA3#..NAP200811-201205

main17430-0P191i2GRFE..GSA3#..NAP201206

main17430-0V020i2ARFE..ASA3#..NAP200811-201205

main17430-0V021i2ARFE..ASA3#..NAP201206

17451GASKET, EXHAUST PIPE

main90917-06078i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P030×2i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811-201103

main17565-0P031×2i2ARFE,2GRFE..ASA3#,GSA3#..NAP201104

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P040×3i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811-201103

main17565-0P041×3i2ARFE,2GRFE..ASA3#,GSA3#..NAP201104

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010291

main90080-10291

90105A0237

main90105-A0237

90109A0013

main90109-A0013

90501A0005

main90501-A0005

90501A0006

main90501-A0006

17 parts on this diagram · 2 diagrams in section
