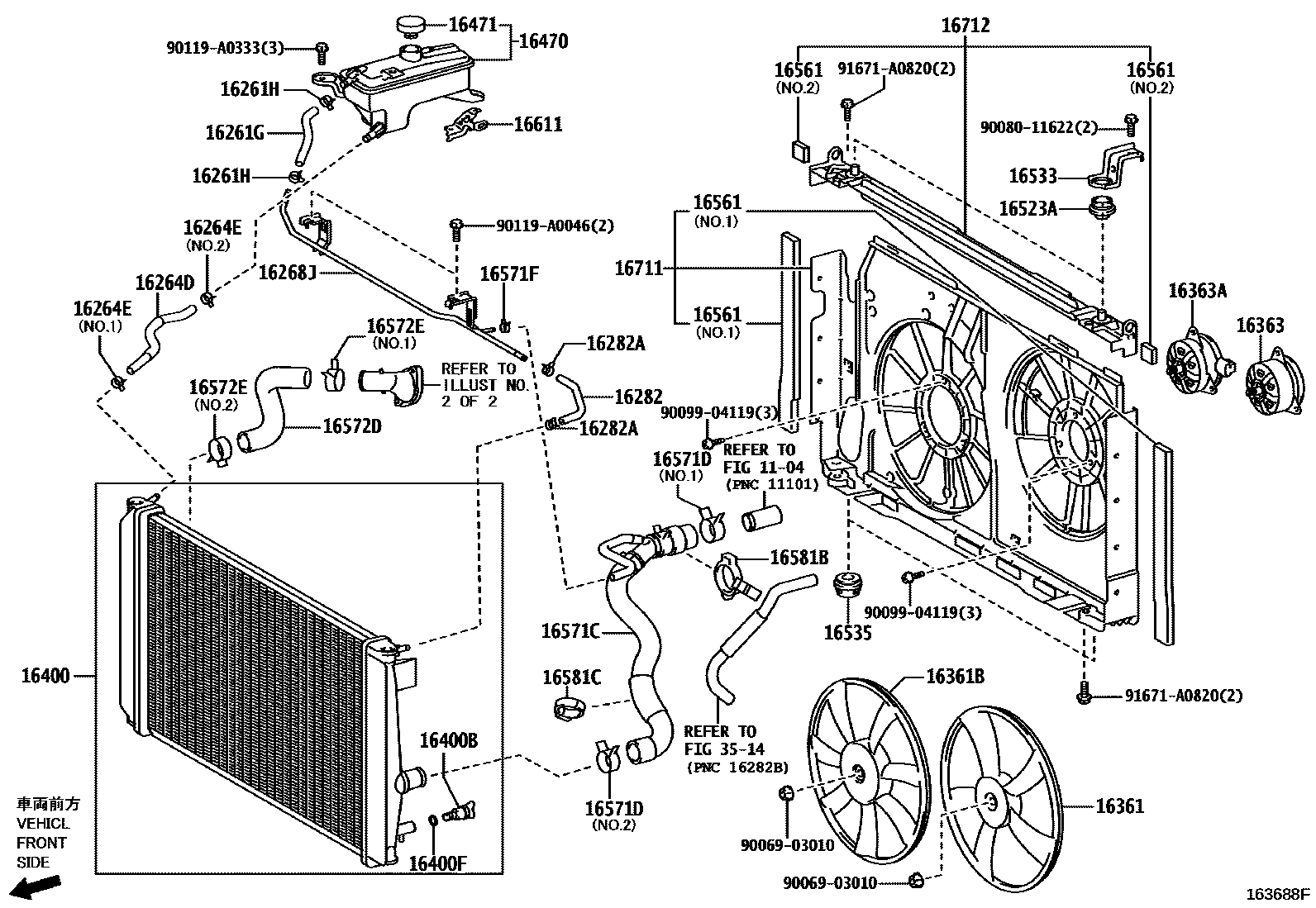

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
*212
*107
16261GHOSE, WATER BY-PASS, NO.1
MEXICO SPEC,*250
*250
MEXICO SPEC,*125 OR *251 OR *252
*125 OR *251 OR *252
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L)
(J)
16264HOSE, WATER BY-PASS, NO.2
NO.2
*212
NO.1
*107
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16268PIPE, WATER BY-PASS, NO.1
(L),*212
(J),*212
*107
16268JPIPE, WATER BY-PASS, NO.5
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16361FAN
16361BFAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
sub16475-28140
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.2
NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
NO.1
NO.2
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16611BRACKET, RADIATOR RESERVE TANK
16712SHROUD, FAN, NO.2
3514
9006903010
main90069-03010
9008011622
main90080-11622
9009904119
main90099-04119
90119A0046
main90119-A0046
90119A0333
main90119-A0333
91671A0820
main91671-A0820
41 parts on this diagram · 5 diagrams in section
